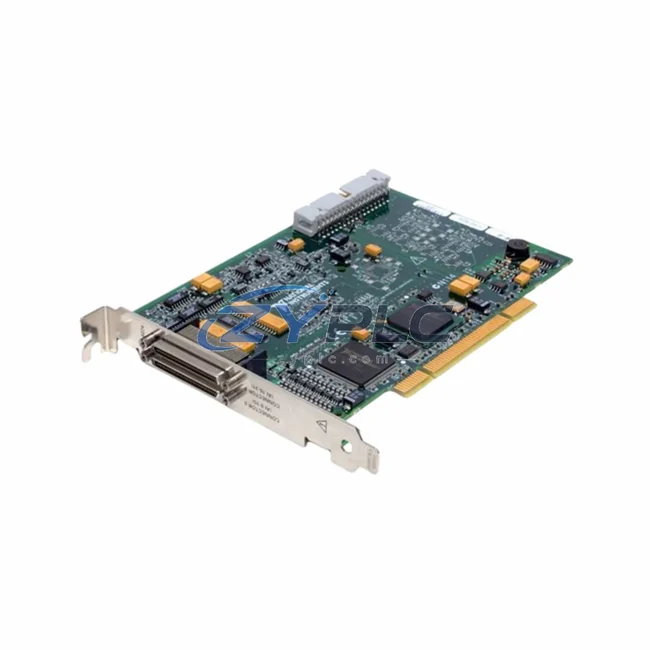

NI PCI-6224 Multifunction DAQ for M Series

NI PCI-6224 Multifunction DAQ for M Series

In modern industrial automation and process control environments, data acquisition is not a standalone function — it is the sensory backbone of the entire control architecture. The National Instruments PCI-6224 is a high-density, M Series multifunction DAQ card engineered to integrate seamlessly into layered PCI-based control systems. With 32 analog input channels, 48 digital I/O lines, and 2 analog output channels, the PCI-6224 delivers the signal density and timing precision required for demanding measurement, monitoring, and closed-loop control applications across manufacturing, energy, and process industries.

Unlike isolated measurement instruments, the PCI-6224 is designed to function as a coordinated node within a broader system architecture. Its PCI bus interface ensures low-latency communication with the host controller, while NI-DAQmx driver compatibility provides a standardized software layer that simplifies integration with LabVIEW, LabWindows/CVI, and third-party SCADA or DCS platforms. This system integration capability allows engineers to deploy the PCI-6224 as part of a scalable, maintainable, and redundancy-aware control infrastructure.

Product Specification Table

System Compatibility Notes

The PCI-6224 achieves its full potential when deployed within a coordinated NI M Series control architecture. At the signal conditioning layer, the SCB-68A shielded connector block provides a clean, organized interface for connecting field wiring to the PCI-6224’s 68-pin VHDCI connector, reducing noise and simplifying channel assignment during commissioning. For applications requiring modular signal conditioning, the SCC-68 carrier with SCC modules allows per-channel filtering, attenuation, or isolation without additional external hardware.

In chassis-based deployments, the PCI-6224 operates alongside other M Series cards such as the PCI-6229 (32 AI, 4 AO, 48 DIO) and the PCI-6251 (16 AI, 2 AO, 24 DIO, 1. 25 MS/s) to distribute measurement tasks across multiple subsystems within the same host PC. For applications requiring higher channel counts or synchronized multi-board acquisition, the PCI-6259 (32 AI, 4 AO, 48 DIO, 1. 25 MS/s) provides an upgrade path within the same M Series driver and software ecosystem, ensuring code reuse and reduced re-engineering costs.

When the control architecture extends beyond the host PC into modular or distributed I/O, the cDAQ-9178 CompactDAQ chassis paired with modules such as the NI 9205 (32 AI, 16-bit, 250 kS/s) and NI 9263 (4 AO, 16-bit, 100 kS/s) provides a complementary I/O layer that shares the same NI-DAQmx programming model. This architectural consistency allows engineers to maintain a unified software framework across PCI-based and USB/Ethernet-based I/O nodes, reducing training overhead and simplifying long-term maintenance.

For PXI-based system expansions — common in high-channel-count test and measurement or process monitoring applications — the PXI-1042 chassis serves as the backbone for PXI M Series modules, enabling synchronized, high-speed acquisition across multiple slots. The SCXI platform, represented by the SCXI-1000 chassis, extends the PCI-6224’s reach into high-density signal conditioning for thermocouples, RTDs, strain gauges, and current loops, making it suitable for process industries where diverse sensor types must be acquired within a single system scan cycle.

Industrial Application Notes

In manufacturing and assembly line automation, the PCI-6224 is deployed at the data acquisition layer of a PC-based control system, collecting analog feedback from servo drives, pressure transducers, and load cells while simultaneously managing digital handshaking with PLCs and safety relays. Its 48 DIO lines provide sufficient capacity for coordinating conveyor interlocks, part-present sensors, and reject actuators without requiring an additional digital I/O card.

In power generation and electrical substation monitoring, the PCI-6224 acquires voltage and current waveforms from instrument transformers, feeding real-time data to power quality analysis software. Its 16-bit resolution and 250 kS/s aggregate sample rate ensure that harmonic distortion, transient events, and power factor deviations are captured with sufficient fidelity for grid compliance reporting.

In petrochemical and refinery process control, the PCI-6224 integrates with distributed control systems as a high-density analog input node, monitoring temperature, pressure, flow, and level signals from field transmitters. Its compatibility with the NI-DAQmx driver allows direct integration with OPC-DA/UA servers, enabling seamless data exchange with DCS historian and alarm management platforms.

In water treatment and environmental monitoring applications, the PCI-6224 supports continuous acquisition from pH, dissolved oxygen, turbidity, and conductivity sensors, providing the real-time data streams required for automated dosing control and regulatory compliance logging. Its robust operating temperature range and stable PCI bus interface ensure reliable 24/7 operation in control room environments.

Product Compatibility FAQ

Q1: Is the PCI-6224 compatible with modern NI-DAQmx driver versions, and can it be integrated with third-party SCADA systems?
Yes. The PCI-6224 is fully supported by NI-DAQmx, which provides a standardized API compatible with LabVIEW, LabWindows/CVI,. NET, Python, and ANSI C. Through OPC-DA/UA wrappers and NI’s DSC module, the card can be integrated with leading SCADA platforms including Wonderware, Ignition, and Citect, enabling system integration within existing plant automation infrastructure.

Q2: Can the PCI-6224 be used in a multi-card synchronized acquisition architecture, and what synchronization mechanisms are supported?
Yes. The PCI-6224 supports RTSI (Real-Time System Integration) bus synchronization, allowing multiple M Series cards installed in the same PC to share sample clocks, start triggers, and reference triggers. This enables phase-coherent, synchronized acquisition across hundreds of channels when combined with cards such as the PCI-6229 or PCI-6259, without requiring external trigger wiring.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance and spare parts supply?
The warranty terms confirmed during quotation covers functional defects in hardware and ensures the card has been tested and verified prior to shipment. For long-term maintenance, we maintain availability confirmed by RFQ inventory of PCI-6224 units and compatible accessories including SCB-68A connector blocks and SCC-68 carriers, supporting planned maintenance cycles and emergency replacement requirements. Our technical team provides pre-sales architecture consultation and post-sales integration support to ensure system continuity throughout the product lifecycle.
