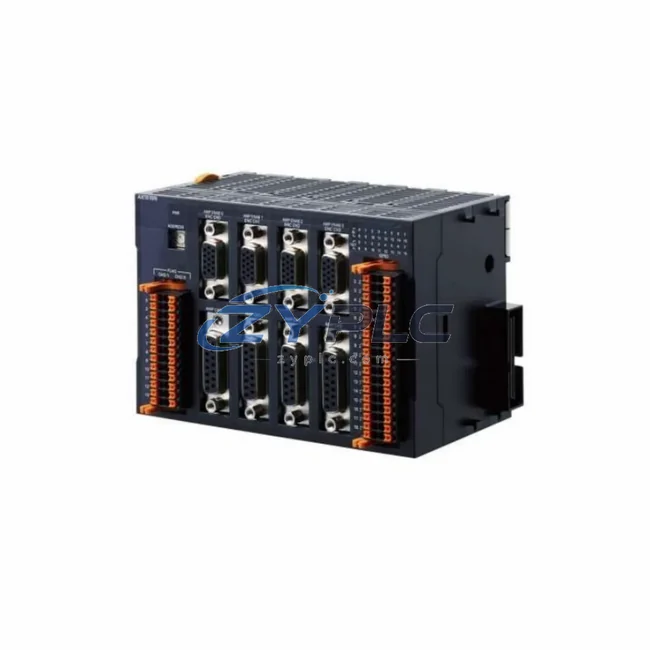

Omron CK3W-AX1111N EtherCAT Axis Interface Unit | NJ/NX Series

Omron CK3W-AX1111N: EtherCAT Axis Interface Unit for Industrial Data Link and Smart Factory Connectivity

The Omron CK3W-AX1111N is a high-performance EtherCAT Axis Interface Unit engineered for seamless integration within the NJ/NX Series machine automation controller platform. Designed to serve as a critical node in the industrial data chain, the CK3W-AX1111N bridges real-time motion control signals between servo drives, field devices, and upper-level control systems — enabling the kind of deterministic, low-latency communication that modern smart factory environments demand.

In today’s connected manufacturing landscape, the ability to move data reliably from the field level to the supervisory level is not optional — it is foundational. The CK3W-AX1111N fulfills this role by acting as a dedicated axis interface within the EtherCAT network topology, ensuring that position feedback, velocity commands, torque references, and fault diagnostics travel with microsecond-level precision across the automation backbone.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the CK3W-AX1111N requires viewing it not as a standalone component, but as an active participant in a layered industrial communication architecture. In a typical smart factory deployment, the data flow begins at the sensor and actuator level — where encoders, proximity switches, and pressure transducers generate raw signals that must be captured, conditioned, and transmitted upstream.

The CK3W-AX1111N connects directly to the NJ/NX Series machine controller backplane, working in concert with units such as the NX-ECC203 EtherCAT Coupler and NX-SL3300 Safety Controller to form a unified control node. On the drive side, the unit interfaces with OMRON G5 Series Servo Drives (e.g., R88D-KN series) via EtherCAT, delivering real-time position and velocity commands while simultaneously receiving encoder feedback and fault status data — all within a single network cycle.

Moving up the data chain, the NJ/NX controller aggregates axis data from multiple CK3W-AX1111N units and communicates with OMRON NA Series HMI panels via EtherNet/IP, providing operators with live axis position visualization, alarm acknowledgment, and production throughput metrics. Simultaneously, the controller pushes structured data packets to OMRON CX-Supervisor SCADA or third-party SCADA platforms via OPC-UA, enabling plant-wide visibility and historical trending.

For remote I/O expansion, the system may incorporate NX-ID5342 Digital Input Units and NX-OD5256 Digital Output Units mounted on the same NX backplane, extending the reach of the control system to distributed field devices without adding communication latency. Where legacy field devices using PROFIBUS or DeviceNet must be integrated, an OMRON GX-series EtherCAT Remote I/O Terminal or a protocol gateway module bridges the protocol gap, ensuring that older equipment participates fully in the EtherCAT data loop.

At the edge, OMRON NYB Industrial Box PC platforms running Sysmac Studio or custom MES middleware collect axis performance data from the NJ/NX controller, enabling predictive maintenance algorithms to analyze vibration signatures, thermal trends, and cycle time deviations — feeding actionable intelligence back to the production management layer. Power integrity across the entire network is maintained by OMRON S8VK-series industrial power supplies, which deliver stable 24 VDC rails to the controller backplane, I/O units, and communication modules alike.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A production line may simultaneously operate servo drives on EtherCAT, legacy PLCs on PROFIBUS, vision systems on GigE, and safety controllers on FSoE — creating data silos that prevent unified monitoring and coordinated control.

The CK3W-AX1111N, as part of the OMRON NJ/NX ecosystem, directly addresses this challenge. By standardizing axis communication on EtherCAT — an open, IEC-certified protocol with deterministic timing — the unit eliminates the latency and synchronization errors that arise when motion data must traverse multiple protocol boundaries. Engineers no longer need to rely on analog signal wiring or proprietary fieldbus adapters to connect servo axes to the controller; instead, a single EtherCAT cable carries all command, feedback, and diagnostic data in both directions simultaneously.

For facilities undergoing digital transformation, the CK3W-AX1111N provides a clear migration path. Existing NJ/NX controllers can be expanded with additional CK3W axis interface units without replacing the base controller hardware, protecting capital investment while incrementally increasing axis count and system capability. Remote diagnostics via Sysmac Studio allow maintenance engineers to monitor axis health, review error logs, and perform parameter adjustments from a central workstation — reducing unplanned downtime and eliminating the need for on-site intervention for routine diagnostic tasks.

Production line transparency is further enhanced through integration with MES and ERP systems. Axis cycle data, fault histories, and throughput metrics collected by the NJ/NX controller can be exported via OPC-UA to manufacturing execution systems, giving production managers real-time visibility into equipment utilization and enabling data-driven decisions on maintenance scheduling and capacity planning.

Every Omron CK3W-AX1111N unit supplied by ZYPLC undergoes pre-shipment functional testing and is backed by a warranty terms confirmed during quotation. Stock is maintained for shipment arranged after confirmation via DHL Express or FedEx International Priority, with full export documentation provided for cross-border shipments.

Industrial Connectivity FAQ

Q1: What is the communication cycle time of the CK3W-AX1111N on an EtherCAT network?
The CK3W-AX1111N supports EtherCAT communication cycle times as low as 500 microseconds when used with compatible NJ/NX Series controllers, ensuring deterministic real-time axis control suitable for high-speed servo and CNC applications.

Q2: Is the CK3W-AX1111N compatible with third-party EtherCAT master controllers?
The CK3W-AX1111N is optimized for use within the OMRON NJ/NX Series controller platform and Sysmac Studio engineering environment. While EtherCAT is an open standard, full functionality — including integrated safety, motion sequencing, and diagnostic integration — is best realized with OMRON NJ/NX Series masters. Compatibility with third-party EtherCAT masters should be verified against the specific controller’s EtherCAT conformance certification.

Q3: How does the CK3W-AX1111N support network stability in high-vibration industrial environments?
The unit is designed to OMRON’s industrial-grade mechanical and electrical specifications, with conformal coating options and DIN-rail or backplane mounting that minimizes connector stress. EtherCAT’s line topology reduces network failure points compared to ring or star architectures, and the NJ/NX controller’s built-in network diagnostics provide real-time link status monitoring to detect and isolate cable faults before they cause production stoppages.

Q4: What warranty and testing does ZYPLC provide with the CK3W-AX1111N?
All CK3W-AX1111N units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit is functionally tested prior to dispatch to verify communication integrity and axis interface operation. Shipment is via DHL Express or FedEx with full tracking, and export documentation including commercial invoice and packing list is provided as standard.
