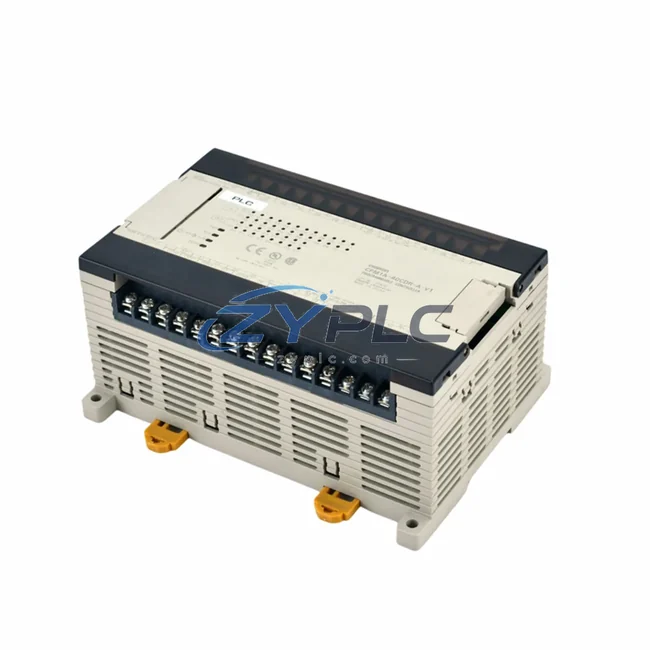

Omron CPM1A-40CDR-A Compact PLC for CPM1A

Omron CPM1A-40CDR-A Compact PLC for CPM1A: Control Layer Coordination and Upstream–Downstream System Coherence

The Omron CPM1A-40CDR-A is a 40-point compact programmable logic controller engineered for deployment within structured industrial control architectures. With 24 DC inputs and 16 relay outputs, this unit occupies the control layer of a layered automation system, coordinating signal acquisition from field devices, executing ladder logic, and driving output actuators across a wide range of process and discrete manufacturing environments. Rather than functioning as a standalone device, the CPM1A-40CDR-A is designed to integrate coherently within a broader system that spans the I/O layer, network layer, power supply layer, human-machine interface layer, and execution layer — delivering consistent performance across each tier of the control hierarchy.

In a complete CPM1A-series control cabinet, the CPM1A-40CDR-A typically operates alongside a dedicated 24 VDC power supply unit, field-side terminal blocks, and expansion I/O modules such as the CPM1A-20CDR-A or CPM1A-8ED expansion units, which extend the system’s digital input and output capacity without requiring a larger base controller. For analog signal handling — common in temperature regulation, pressure monitoring, and flow control applications — the CPM1A-MAD01 analog I/O expansion module integrates directly with the CPM1A bus, enabling the controller to process 0–10 V or 4–20 mA signals within the same compact footprint. This modular expandability ensures that the CPM1A-40CDR-A can scale with evolving process requirements while maintaining a unified programming environment and consistent scan-cycle behavior.

At the network and communications layer, the CPM1A-40CDR-A supports RS-232C serial communication through its built-in peripheral port, enabling direct connection to programming devices, HMI panels, and SCADA systems. When host-link or no-protocol serial communication is required for upstream data exchange, the CPM1-CIF01 RS-232C adapter or CPM1-CIF11 RS-422/485 adapter can be attached to extend the communication reach across longer cable runs or multi-drop network topologies. For facilities operating within an Omron SYSMAC network environment, the CPM1A-40CDR-A can be integrated into a broader supervisory architecture managed by higher-tier controllers such as the CQM1H-CPU51 or CJ1-series CPUs, with the CPM1A functioning as a distributed sub-controller responsible for localized I/O management and interlocking logic.

Human-machine interface connectivity is a critical consideration in any layered automation design. The CPM1A-40CDR-A communicates natively with Omron NT-series HMI panels — including the NT31-ST123-V3 — via the NT Link protocol, enabling operators to monitor process variables, acknowledge alarms, and adjust setpoints without requiring additional communication middleware. This direct HMI integration reduces system complexity, shortens commissioning time, and improves operator response during fault conditions. In larger installations, the HMI layer may be extended to include PC-based SCADA platforms connected through the CX-Server OPC driver, maintaining full data visibility across the control hierarchy.

At the execution layer, the relay output architecture of the CPM1A-40CDR-A provides galvanic isolation between the controller logic and field-side loads, supporting the direct switching of solenoid valves, motor contactors, indicator lamps, and alarm relays rated up to 250 VAC or 24 VDC. For applications requiring higher-frequency switching or proportional speed control, the CPM1A-40CDR-A can be paired with external variable frequency drives or servo amplifiers, with the PLC managing start/stop commands, fault reset signals, and speed reference selection through its relay outputs. This execution-layer flexibility makes the CPM1A-40CDR-A suitable for both simple on/off control sequences and more complex interlocked machine cycles.

From a system maintenance and long-term reliability perspective, the CPM1A-40CDR-A benefits from Omron’s established spare-parts ecosystem. Components such as the CJ1W-ID211 digital input module, CJ1W-OC211 relay output module, and CPM1A-TS002 temperature sensor unit are widely stocked and interchangeable within compatible Omron control architectures, reducing mean time to repair and supporting planned preventive maintenance schedules. All units supplied through ZYPLC are covered by a warranty terms confirmed during quotation, ensuring that engineering teams can deploy the CPM1A-40CDR-A with confidence in both new installations and retrofit projects.

Product Specification Table

System Compatibility Notes

A complete CPM1A-40CDR-A-based control system is built around coordinated component selection across every architecture layer. At the power layer, a dedicated DIN-rail-mounted 24 VDC power supply feeds the input commons and field sensors, while the controller’s internal AC power supply drives the CPU and output relay coils. Expansion I/O is added via the CPM1A-20CDR-A expansion unit, which appends 12 inputs and 8 relay outputs to the base controller’s bus without additional programming overhead. For analog process variables, the CPM1A-MAD01 analog I/O module provides two analog inputs and one analog output, enabling closed-loop PID control within the CPM1A instruction set.

Serial communication to upstream supervisory systems is established through the CPM1-CIF01 RS-232C adapter or the CPM1-CIF11 RS-422/485 adapter, supporting multi-drop host-link networks where multiple CPM1A controllers report to a central CQM1H-CPU51 host controller. HMI connectivity is achieved via the NT31-ST123-V3 operator panel using the NT Link protocol, providing a dedicated operator interface without consuming the host-link port. For temperature-critical processes, the CPM1A-TS002 thermocouple input unit connects directly to the CPM1A expansion bus, delivering two-channel temperature measurement with direct ladder-logic access. Output-side execution is managed through the relay contacts driving external motor starters, solenoid valves, and signal lamps, with higher-current loads routed through interposing relays or contactors to protect the relay output contacts and extend service life.

Industrial Application Notes

The CPM1A-40CDR-A is deployed across a broad spectrum of industrial sectors where compact, reliable, and cost-effective PLC control is required. In discrete manufacturing environments — including packaging lines, assembly stations, and conveyor systems — the controller manages sequential interlocking logic, part-presence detection, and reject-gate actuation with deterministic scan-cycle performance. In water treatment and pumping stations, the CPM1A-40CDR-A controls pump start/stop sequences, level switch monitoring, and alarm relay outputs, with serial communication to a SCADA system providing remote visibility of station status.

In power distribution substations and auxiliary control panels, the relay output architecture provides the galvanic isolation required for switching protection relay trip circuits and breaker control coils, while the DC input section monitors auxiliary contacts and status signals from switchgear. In petrochemical and process industries, the CPM1A-40CDR-A is used in utility skid control, chemical dosing systems, and HVAC control panels where the combination of analog expansion (via CPM1A-MAD01) and relay output switching covers the full range of field device types encountered in process plant environments. In mining and metallurgical applications, the controller’s wide operating temperature range and robust relay output design support deployment in dusty, vibration-prone environments where panel-mounted compact PLCs are preferred over rack-based systems for their lower installation cost and simpler maintenance procedures.

Product Compatibility FAQ

Q1: Can the CPM1A-40CDR-A be integrated into an existing Omron SYSMAC network alongside CJ1-series or CS1-series controllers?
Yes. The CPM1A-40CDR-A supports Host Link (SYSMAC WAY) serial communication, which allows it to function as a slave node in a host-link network managed by a CJ1-series or CS1-series master CPU. Communication is established via the CPM1-CIF01 or CPM1-CIF11 adapter, and the master controller can read and write CPM1A data memory areas using standard FINS commands. This architecture enables the CPM1A-40CDR-A to serve as a distributed I/O and logic sub-controller within a larger SYSMAC system, with full warranty terms confirmed during quotation coverage on the supplied unit ensuring system reliability from commissioning through the initial operational period.

Q2: What expansion modules are compatible with the CPM1A-40CDR-A, and how many can be connected?
The CPM1A-40CDR-A supports up to three CPM1A-series expansion units connected via the right-side expansion connector, bringing the maximum system I/O to 100 points. Compatible expansion units include the CPM1A-20CDR-A (12 in / 8 relay out), CPM1A-8ED (8 DC inputs), CPM1A-MAD01 (2 analog in / 1 analog out), and CPM1A-TS002 (2-channel thermocouple input). All expansion units are recognized automatically by the CPU during power-up, and their I/O areas are mapped sequentially into the CPM1A I/O memory map without requiring manual address configuration. system integration between the base unit and expansion modules is seamless within the CX-Programmer development environment.

Q3: What is covered under the warranty terms confirmed during quotation, and what is the recommended long-term maintenance strategy for CPM1A-40CDR-A installations?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects, premature component failure, and functional non-conformance under normal operating conditions. For long-term maintenance, it is recommended to schedule periodic inspection of relay output contacts — particularly on high-cycle outputs — and to maintain a spare CPM1A-40CDR-A unit or equivalent expansion modules in the site spares inventory. Battery replacement (for program and data memory retention during power loss) should be performed according to the Omron CPM1A hardware manual schedule, typically every five years under normal operating conditions. ZYPLC supports RFQ sourcing for CPM1A-series units and compatible expansion modules to support rapid replacement requirements, minimizing unplanned downtime in critical production environments.
