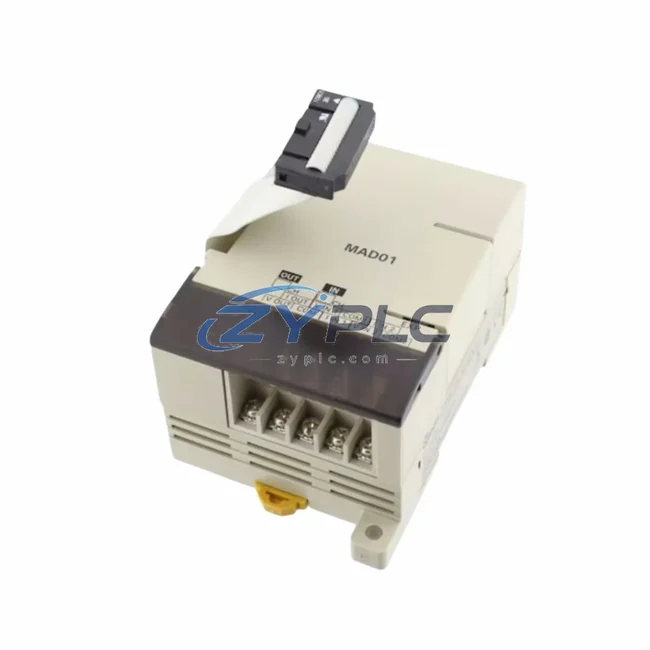

OMRON CPM1A-MAD01 Analog I/O Module for CPM1A

OMRON CPM1A-MAD01 Analog I/O Module for CPM1A

The OMRON CPM1A-MAD01 is a dedicated analog input/output expansion module designed to operate within the CPM1A compact PLC architecture. In modern layered automation systems, the ability to process real-world analog signals — temperature, pressure, flow rate, and level — is essential for maintaining closed-loop control accuracy. The CPM1A-MAD01 bridges the gap between field-level analog instrumentation and the digital control logic executed by the CPM1A CPU, enabling seamless signal conversion and system-wide data consistency.

Within a typical CPM1A-based control cabinet, the CPM1A-MAD01 occupies a critical position between the controller and the process field devices. It receives analog signals from sensors and transmitters, converts them into digital values accessible by the CPU, and outputs analog control signals to actuators such as variable frequency drives, proportional valves, and heating elements. This bidirectional analog capability allows a single CPM1A system to handle both monitoring and regulation tasks without requiring a separate analog subsystem.

The module supports two analog input channels and one analog output channel, with configurable input ranges including 0–10 V, 1–5 V, -10–10 V, and 4–20 mA. The output channel supports 0–10 V and -10–10 V ranges. Resolution is 8-bit for standard applications, which is suitable for general process monitoring and basic proportional control loops. For installations where higher resolution is needed, the CPM1A-MAD01 can be paired with external signal conditioning modules or upgraded to the CPM1A-MAD11, which offers enhanced resolution and additional channel configurations.

Product Specification Table

System Compatibility Notes

The CPM1A-MAD01 is not a standalone device — its value is fully realized when integrated into a complete CPM1A control system architecture. At the core of this architecture sits the CPM1A-20CDR-A or CPM1A-30CDR-A CPU unit, which provides the program execution environment, digital I/O base points, and the expansion bus interface that the MAD01 connects to. The CPU handles all logic processing, timer and counter functions, and communication with upstream supervisory systems.

Power integrity is maintained through the CPM1A’s internal power supply design, but for systems with higher analog load requirements, an external CJ1W-PA205R power supply module or equivalent regulated DC source ensures stable voltage rails for sensitive analog circuits. In cabinets where multiple expansion modules are deployed, stable power delivery directly impacts analog measurement accuracy and output signal quality.

For digital I/O expansion beyond the CPU’s built-in points, the CPM1A-20EDR expansion unit adds relay output channels for discrete control tasks such as motor starters, solenoid valves, and indicator lamps. This allows the CPM1A-MAD01 to focus exclusively on analog processing while the digital expansion modules handle on/off control logic, creating a clean separation of signal types within the control cabinet.

Communication between the CPM1A system and higher-level networks or HMI panels is typically handled through the CPU’s built-in RS-232C port or by adding a CPM1-CIF01 RS-422/485 adapter for multi-drop serial networks. This enables the analog data captured by the CPM1A-MAD01 to be transmitted to SCADA systems, data loggers, or OMRON NB-series or NS-series HMI touch panels for real-time visualization and operator interaction.

Terminal connectivity and wiring reliability are ensured through OMRON XW2B-series connector terminal blocks, which provide secure screw-terminal connections for analog signal wiring. Proper shielding and grounding of analog cables at the terminal block level is critical for minimizing electromagnetic interference, especially in environments with variable frequency drives or high-power switching equipment nearby.

In redundancy-conscious designs, maintaining spare CPM1A-MAD01 modules and pre-configured CPU units allows for rapid module replacement during unplanned downtime. The CPM1A architecture supports hot-swappable expansion modules in certain configurations, and the MAD01’s plug-in connection to the expansion bus simplifies field replacement without requiring full system re-wiring.

Industrial Application Notes

The CPM1A-MAD01 finds its strongest application in small to mid-scale process control environments where analog signal processing is required but the complexity of a full-scale distributed control system is unnecessary. In water treatment facilities, the module monitors flow rates from electromagnetic flow meters and controls chemical dosing pump speeds through its analog output channel, maintaining precise reagent delivery based on real-time water quality measurements.

In packaging and food processing lines, the CPM1A-MAD01 reads temperature data from thermocouple transmitters and adjusts heater output for sealing bars and shrink tunnels. The integration with the CPM1A CPU allows PID control loops to be executed directly in the PLC program, with the MAD01 providing the analog interface between the control algorithm and the physical process.

In building automation and HVAC systems, the module interfaces with pressure transducers, humidity sensors, and damper actuators, enabling the CPM1A system to regulate environmental conditions in commercial and industrial spaces. The compact form factor of the CPM1A platform makes it particularly suitable for retrofit installations where panel space is limited.

For metallurgical and mineral processing applications, the CPM1A-MAD01 monitors furnace temperatures, conveyor belt speeds, and material feed rates, providing the analog data necessary for maintaining consistent product quality and process efficiency. The module’s industrial temperature rating and DIN rail mounting ensure reliable operation in harsh environments with elevated ambient temperatures and vibration.

Across all these applications, the system integration of the CPM1A-MAD01 within the broader CPM1A ecosystem ensures that analog data flows seamlessly from field sensors through the control logic and up to supervisory displays, creating a unified and maintainable automation architecture.

Product Compatibility FAQ

Q1: How many CPM1A-MAD01 modules can be connected to a single CPM1A CPU?
The CPM1A platform supports up to three expansion units depending on the CPU model. The CPM1A-30CDR-A supports up to three expansion modules, while the CPM1A-20CDR-A supports up to one. When planning analog channel density, verify the CPU model’s expansion capacity and consider using the CPM1A-MAD11 if additional channels are needed within a single module slot.

Q2: Is the CPM1A-MAD01 compatible with other OMRON PLC series such as CQM1 or CJ2M?
No. The CPM1A-MAD01 is designed exclusively for the CPM1A expansion bus and is not electrically or mechanically compatible with CQM1, CJ1, CJ2, or CS1 series platforms. For those architectures, equivalent analog modules such as the CJ1W-AD081-V1 or CS1W-AD081-V1 should be selected. Always verify bus compatibility before specifying analog modules in a system design.

Q3: What is covered under the warranty terms confirmed during quotation provided by ZYPLC?
ZYPLC provides a warranty terms confirmed during quotation on the CPM1A-MAD01 covering manufacturing defects and functional failures under normal operating conditions. The warranty includes free replacement and technical support for installation and commissioning issues. For long-term maintenance planning, ZYPLC recommends maintaining at least one spare analog module per control cabinet to minimize downtime during warranty claims or scheduled maintenance cycles.
