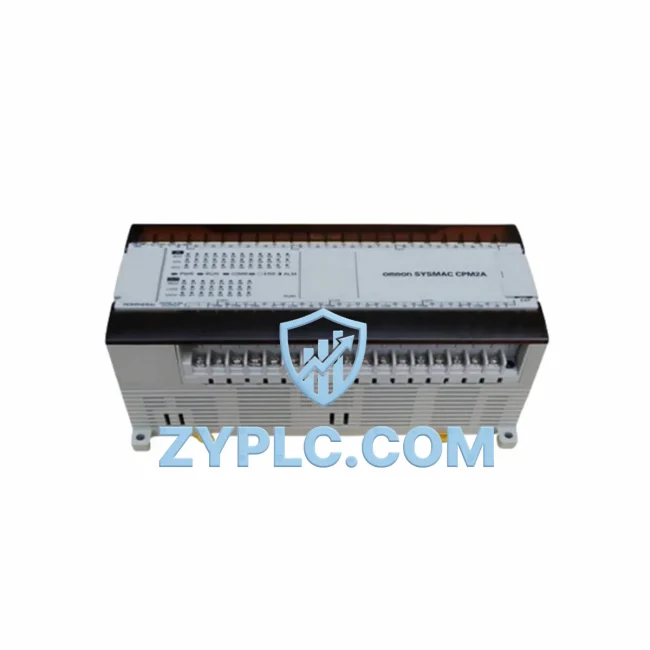

OMRON CPM2AE-60CDR-A Expansion I/O Module for CPM2A
In modern industrial automation, no component operates in isolation. The OMRON CPM2AE-60CDR-A is a 60-point expansion I/O module engineered specifically for the CPM2A programmable controller series, extending the I/O capacity of the base CPU unit and enabling engineers to scale discrete control architectures without migrating to a larger platform. With 36 input points and 24 relay output points, this module integrates directly into the CPM2A system bus, maintaining signal integrity and scan-cycle consistency across the full I/O map.
Understanding the CPM2AE-60CDR-A requires viewing it within the layered structure of a complete control system — from the CPU and power supply layer, through the I/O and field device layer, to the communication, HMI, and execution layers. This module occupies the I/O expansion layer, bridging the CPM2A CPU unit and the physical process signals that drive motors, solenoids, sensors, and switches on the plant floor.
Product Specification Table
| Parameter |
Specification |
| System Role |
Expansion I/O Module for CPM2A PLC Architecture |
| Total I/O Points |
60 (36 Inputs / 24 Outputs) |
| Output Type |
Relay Contact Output |
| Input Voltage |
24 VDC (NPN/PNP selectable) |
| Output Rated Voltage |
250 VAC / 24 VDC |
| Output Current per Point |
2 A max |
| Power Supply |
Supplied via CPM2A CPU expansion bus |
| Communication Interface |
CPM2A proprietary expansion bus |
| Mounting |
DIN rail or panel mount, direct connection to CPM2A CPU |
| Operating Temperature |
0°C to 55°C |
| Operating Humidity |
10% to 90% RH (non-condensing) |
| Protection Rating |
IP20 |
| Country of Origin |
Japan |
| Warranty |
warranty terms confirmed during quotation — Tested, verified, and ready for system integration |
System Compatibility Notes
The CPM2AE-60CDR-A is designed to work in close coordination with the OMRON CPM2A-60CDR-D or CPM2A-40CDR-D CPU units, which serve as the central processing and program execution layer. The CPU unit manages the scan cycle, executes ladder logic, and communicates with the expansion module through the dedicated CPM2A expansion bus — a high-speed, deterministic link that ensures I/O refresh latency remains within acceptable bounds for time-sensitive discrete control applications.
On the power supply layer, the CPM2A-MAD01 analog I/O unit or a dedicated S8VS-series 24 VDC switching power supply provides stable field power to input devices such as proximity sensors, photoelectric sensors, and push-button stations wired to the CPM2AE-60CDR-A input terminals. Relay output contacts on this module switch loads including solenoid valves, motor starters, indicator lamps, and small actuators — making it suitable for both discrete manufacturing and process control panels.
For applications requiring serial communication or network connectivity, the CPM2A-CIF01 RS-232C adapter or CPM2A-CIF11 RS-422/485 adapter connects to the CPU peripheral port, enabling Modbus RTU, Host Link, or NT Link protocols. This allows the CPM2A system — expanded with the CPM2AE-60CDR-A — to exchange data with SCADA systems, OMRON NS-series HMI terminals, or upstream CJ2M controllers acting as supervisory PLCs in a hierarchical architecture.
In multi-drop communication topologies, the CPM2A system can be networked alongside OMRON CJ1W-SCU41-V1 serial communication units or integrated into a DeviceNet segment using the CPM2A-DRT21 DeviceNet slave unit, enabling the expanded I/O points of the CPM2AE-60CDR-A to be mapped into a distributed I/O network managed by a higher-level CS1D or CJ2H redundant CPU system.
Terminal block wiring on the CPM2AE-60CDR-A follows standard OMRON screw-terminal conventions, compatible with XW2B-series connector terminal blocks for structured wiring in high-density control cabinets. This simplifies field wiring, reduces installation time, and supports modular replacement during maintenance without disturbing adjacent wiring.
Industrial Application Notes
The CPM2AE-60CDR-A finds application across a wide range of industrial sectors where the CPM2A platform remains the established control standard:
Manufacturing and Assembly Lines: In automotive component assembly, the module controls conveyor indexing, part-present detection, pneumatic clamp actuation, and reject gate operation. Its relay outputs handle the mixed-voltage loads common in legacy assembly fixtures, while the 36 input points accommodate the dense sensor arrays typical of multi-station transfer lines.
Water and Wastewater Treatment: Pump station control panels use the CPM2AE-60CDR-A to monitor level switches, flow sensors, and motor run/fault feedback signals, while relay outputs control pump contactors, valve actuators, and alarm annunciators. The module’s wide operating temperature range supports outdoor enclosure installations in water utility infrastructure.
Food and Beverage Packaging: Filling, capping, and labeling machines built on the CPM2A platform use this expansion module to handle the high I/O point counts required by multi-lane packaging systems. Relay outputs drive reject mechanisms and conveyor drives, while inputs monitor fill-level sensors and cap-presence detectors.
Building Automation and HVAC: In smaller building management applications, the CPM2AE-60CDR-A extends the CPM2A CPU to control fan coil units, damper actuators, chiller enable signals, and occupancy-based lighting circuits — all within a compact DIN-rail mounted panel.
Mining and Mineral Processing: Conveyor belt control systems in mining operations rely on the relay output capacity of this module to switch high-current motor starter coils and safety interlock circuits, with inputs monitoring belt alignment switches, pull-cord emergency stops, and speed sensors.
Product Compatibility FAQ
Q1: How many CPM2AE-60CDR-A units can be connected to a single CPM2A CPU?
The CPM2A CPU supports up to three expansion I/O units, allowing a maximum system expansion of 180 additional I/O points when three CPM2AE-60CDR-A modules are connected. The total system I/O — including the CPU’s onboard points — must remain within the CPM2A platform’s maximum I/O capacity. Engineers should verify the specific CPU model’s expansion limit in the CPM2A hardware manual before finalizing the system architecture.
Q2: Is the CPM2AE-60CDR-A compatible with both CPM2A and CPM2AH CPU units, and does it support hot-swap replacement?
The CPM2AE-60CDR-A is designed for the CPM2A series and is mechanically and electrically compatible with CPM2A CPU units. Compatibility with CPM2AH variants should be confirmed against OMRON’s official compatibility matrix. Hot-swap replacement is not supported on the CPM2A platform — the CPU must be powered down before connecting or disconnecting expansion modules to prevent bus communication errors and potential I/O data corruption. For systems requiring online module replacement, consider migrating to the OMRON CJ2 or CS1D platform with its hot-swap I/O architecture.
Q3: What does the warranty terms confirmed during quotation cover, and how does system integration support long-term system maintenance?
Every CPM2AE-60CDR-A supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional testing to verify input response, relay output switching, and bus communication integrity. system integration means that our technical team can advise on system-level compatibility — confirming that the module fits your existing CPM2A CPU revision, expansion bus configuration, and cabinet layout — reducing commissioning risk and ensuring long-term maintainability. Replacement units are held RFQ Available to support rapid field swap-out, minimizing unplanned downtime in production-critical installations.
