OMRON CQM1-CPU43-V1 CPU Module for CQM1

OMRON CQM1-CPU43-V1 CPU Module for CQM1: Control System and Upstream–Downstream Coordination

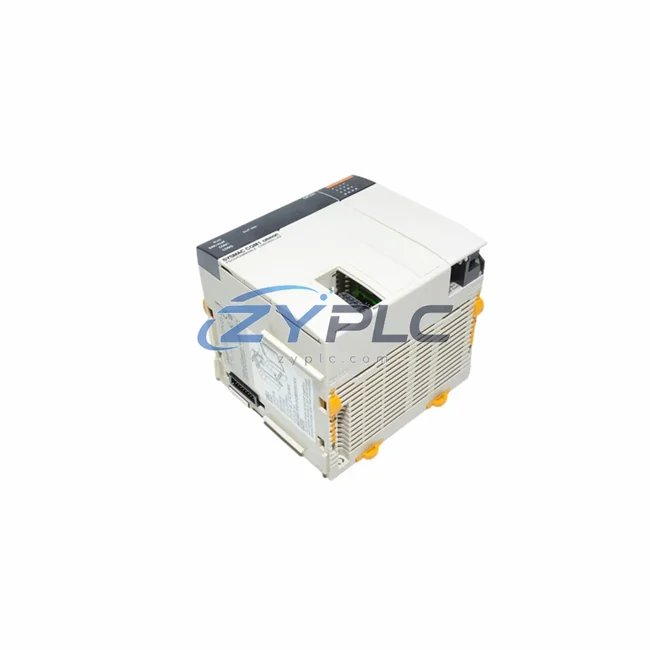

The OMRON CQM1-CPU43-V1 is a high-performance CPU module engineered for deployment within the OMRON CQM1 compact modular PLC platform. Rather than functioning as a standalone controller, the CQM1-CPU43-V1 is designed to serve as the computational core of a layered automation architecture — coordinating signal flow across I/O layers, communicating with supervisory systems, and maintaining deterministic scan-cycle execution in demanding industrial environments. Whether integrated into a discrete manufacturing line, a process control loop, or a utility management system, this CPU module delivers the processing consistency and system integration capability that modern control engineers require.

In a complete CQM1-based control system, the CQM1-CPU43-V1 occupies the central position of the control layer. It interfaces directly with expansion I/O modules such as the CQM1-ID212 (DC input), CQM1-OD212 (transistor output), and CQM1-OA221 (AC output) to manage field-level signal acquisition and actuation. The CPU’s internal program memory supports ladder logic and structured instruction sets that govern the timing, sequencing, and conditional logic of the entire machine or process cell.

At the power layer, the CQM1-CPU43-V1 operates in conjunction with the CQM1-PA206 or CQM1-PD026 power supply units, which provide regulated DC voltage to the CPU and all connected I/O modules on the backplane. Stable power delivery is a prerequisite for reliable scan-cycle performance, and OMRON’s CQM1 power supply modules are engineered to maintain output consistency even under fluctuating input conditions common in industrial facilities.

For network and communications integration, the CQM1-CPU43-V1 supports serial communication via its built-in RS-232C port, enabling direct connection to OMRON’s Host Link (SYSMAC WAY) protocol for SCADA integration, data logging, and remote monitoring. When extended communication capability is required, the CQM1-LK201 or CQM1-CLK21 communication modules can be added to the rack to support CompoBus/S or Controller Link networks, enabling peer-to-peer data exchange with other OMRON PLCs, including CS1 and CJ1 series controllers operating at higher levels of the automation hierarchy.

At the human-machine interface layer, the CQM1-CPU43-V1 integrates seamlessly with OMRON NT-series HMI terminals — such as the NT31C or NT631C — via the CPU’s serial port. These HMI panels provide operators with real-time process visualization, alarm management, and parameter adjustment without requiring additional communication hardware. This direct HMI-to-CPU connectivity reduces system complexity and shortens commissioning time on the plant floor.

For applications requiring redundancy or expanded I/O capacity, the CQM1-CPU43-V1 can be paired with remote I/O configurations using CompoBus/S master modules, distributing I/O nodes across the machine or production line while maintaining centralized program execution. This architecture is particularly effective in packaging lines, conveyor systems, and multi-zone process control applications where physical I/O distribution is necessary for cable management and maintenance efficiency.

Long-term maintainability is a defining characteristic of the CQM1 platform. The CQM1-CPU43-V1’s modular design allows individual components — including I/O modules, power supplies, and communication cards — to be replaced without disturbing the entire control cabinet. This modularity, combined with OMRON’s consistent firmware architecture across CQM1 variants, ensures that engineering teams can maintain, retrain, and expand systems over multi-year operational lifecycles. All units supplied by ZYPLC are tested, verified, and covered by a warranty terms confirmed during quotation, supporting procurement teams that require documented quality assurance for capital equipment purchases.

Product Specification Table

System Compatibility Notes

The CQM1-CPU43-V1 achieves its full architectural value when deployed as part of a coordinated CQM1 system. A typical system configuration includes the CQM1-PA206 AC power supply module providing stable 5 VDC to the backplane, alongside CQM1-ID212 12/24 VDC digital input modules for field sensor connections and CQM1-OD212 transistor output modules for driving solenoids, relays, and actuator signals. For analog process control loops, the CQM1-AD041 analog input module and CQM1-DA021 analog output module extend the CPU’s capability into temperature, pressure, and flow regulation applications.

Communication expansion is handled by the CQM1-LK201 Host Link unit, which enables multi-drop RS-422 connections to SCADA systems or operator terminals. In distributed architectures, the CQM1-SRM21 CompoBus/S master module allows the CPU to manage remote I/O slaves across the production floor, reducing main cabinet wiring complexity. For applications requiring synchronization with OMRON’s CS1 or CJ1 series PLCs at the supervisory layer, the CQM1-CLK21 Controller Link module provides high-speed peer-to-peer data sharing across the network. At the operator interface layer, OMRON NT31C or NT631C HMI terminals connect directly to the CPU’s serial port, delivering real-time visualization without additional gateway hardware.

Industrial Application Notes

The CQM1-CPU43-V1 is well-suited to a broad range of industrial automation applications where compact form factor, deterministic control, and long-term platform availability are priorities. In discrete manufacturing environments — including automotive component assembly, electronics production, and precision machining — the CPU manages multi-axis sequencing, part detection, and reject handling with sub-millisecond scan consistency. In packaging and material handling lines, it coordinates conveyor timing, labeling, filling, and capping sequences across multiple machine zones.

In water and wastewater treatment facilities, the CQM1-CPU43-V1 controls pump sequencing, valve actuation, and level monitoring in compact pump stations or chemical dosing systems where panel space is limited. For power distribution and utility management applications, the CPU’s reliable scan cycle and Host Link communication capability make it suitable for substation automation panels and motor control centers requiring remote monitoring integration. In process industries such as food and beverage, pharmaceutical, and chemical processing, the analog I/O expansion capability of the CQM1 platform enables closed-loop PID control of temperature, pressure, and flow parameters directly from the CQM1-CPU43-V1 program.

Mining and metallurgical operations benefit from the CQM1-CPU43-V1’s robust operating temperature range and modular replacement capability, which reduces unplanned downtime in environments where spare parts logistics and rapid fault recovery are critical operational requirements.

Product Compatibility FAQ

Q1: Is the CQM1-CPU43-V1 compatible with existing CQM1 backplanes and I/O modules already installed in my control cabinet?
Yes. The CQM1-CPU43-V1 is fully compatible with the standard CQM1 backplane architecture and all CQM1-series I/O, power supply, and communication modules. It can be installed as a direct replacement for other CQM1 CPU variants (such as CQM1-CPU21-E or CQM1-CPU41-EV1) without requiring backplane or wiring modifications, provided the program memory and I/O point requirements are within the CPU43-V1’s capacity. Always verify the existing program size and I/O configuration against the CPU43-V1 specifications before substitution.

Q2: How does the CQM1-CPU43-V1 support long-term maintenance and spare parts availability in multi-year automation projects?
ZYPLC supports RFQ sourcing for CQM1-CPU43-V1 units and associated CQM1 platform components to support ongoing maintenance requirements. Each unit is functionally tested prior to shipment and covered by a warranty terms confirmed during quotation, providing procurement and maintenance teams with documented quality assurance. The CQM1 platform’s modular architecture means that individual modules can be replaced independently, minimizing system downtime during corrective maintenance. For projects requiring long-term supply continuity, ZYPLC can discuss scheduled inventory reservation arrangements.

Q3: Can the CQM1-CPU43-V1 be integrated into a system that also includes newer OMRON PLC platforms such as the CJ2M or NX1P2?
Yes, system integration between the CQM1-CPU43-V1 and newer OMRON platforms is achievable through OMRON’s Controller Link network or via serial Host Link communication to a gateway device. In hybrid architectures, the CQM1-CPU43-V1 typically operates as a subsystem controller managing localized I/O and machine sequences, while a higher-level CJ2M or NX1P2 CPU handles supervisory coordination, data aggregation, and EtherNet/IP connectivity to MES or SCADA systems. This layered approach preserves the investment in existing CQM1 infrastructure while enabling integration with modern network-connected automation platforms.
