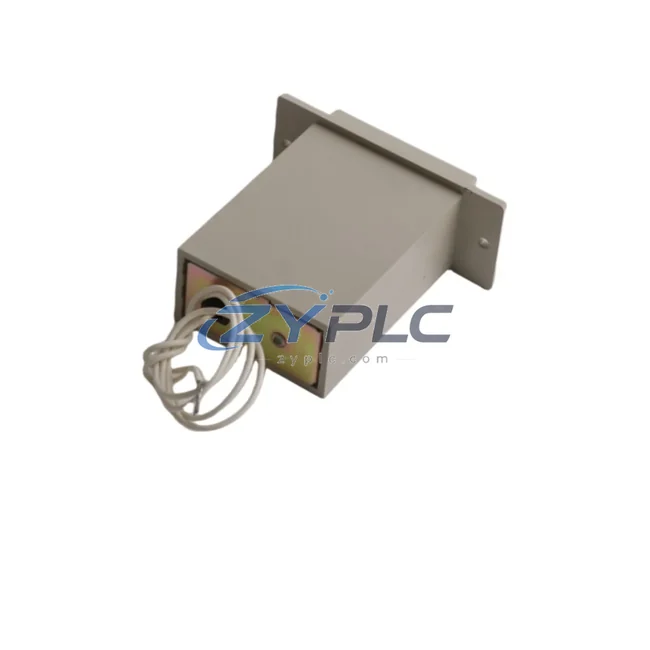

OMRON CSK6-YKW Electromagnetic Counter

OMRON CSK6-YKW Electromagnetic Counter: Precision Control for CSK Series Automation

The OMRON CSK6-YKW is a compact, high-reliability electromagnetic counter from OMRON’s proven CSK Series, engineered for industrial environments where accurate pulse counting, minimal power draw, and long-term operational stability are non-negotiable. In modern manufacturing, every unnecessary watt consumed by auxiliary control components accumulates into measurable energy cost. The CSK6-YKW addresses this directly — its low-excitation-current coil design ensures that counting operations impose virtually no additional load on the control panel power budget, making it an ideal fit for energy-conscious production line architectures.

Product Specification Table

System Compatibility and Application

The CSK6-YKW integrates seamlessly into layered industrial automation architectures where energy accountability begins at the component level. In a typical production cell, the counter receives pulse signals directly from an OMRON CP1H-X40DR-A PLC transistor output, eliminating the need for intermediate signal converters and reducing wiring losses. When paired with an OMRON CJ1W-OD211 output module, the CSK6-YKW can be driven from a shared 24 VDC bus, keeping the auxiliary circuit load consolidated and measurable.

For drive-side condition monitoring, the CSK6-YKW is frequently deployed alongside OMRON 3G3MX2 series inverters, where the counter tracks motor start cycles and cumulative run pulses. This data feeds into energy baseline calculations without requiring a dedicated power meter for low-frequency events. In more sophisticated setups, the counter works in parallel with an OMRON KM50-E1 power monitor, which captures real-time kWh data while the CSK6-YKW logs discrete operational events — together forming a dual-layer energy and event audit trail.

On the I/O side, the CSK6-YKW’s coil input is compatible with relay outputs from OMRON G2R series relay modules, enabling clean signal isolation between the PLC output stage and the counter coil. This isolation prevents back-EMF interference from propagating into the control bus, protecting sensitive modules such as the OMRON CJ1W-AD081 analog input unit used for process variable monitoring. For facilities running OMRON NX1P2 machine automation controllers with EtherCAT backplanes, the CSK6-YKW serves as a reliable offline register for batch totals that persist through power cycles — a critical feature during scheduled operational-efficiency shutdowns.

In HMI-integrated lines, operators viewing an OMRON NB7W-TW01B touchscreen can cross-reference the CSK6-YKW’s mechanical count against PLC-logged production data, providing an independent verification layer that requires no software license or network bandwidth. This architecture supports lean maintenance planning: only the components actively contributing to production consume power, while the CSK6-YKW maintains its count state passively.

Maintenance and Replacement Notes

In high-cycle stamping and assembly lines, electromagnetic counters like the CSK6-YKW play a quiet but critical role in reducing unplanned downtime — one of the largest hidden energy costs in discrete manufacturing. When a line stops unexpectedly, all upstream and downstream equipment continues drawing standby power: conveyors idle, servo amplifiers hold position, and HVAC systems maintain cleanroom conditions for a halted process. By enabling accurate batch counting and end-of-run signaling, the CSK6-YKW allows the PLC to trigger orderly shutdowns of non-essential loads between production runs, directly reducing idle operating load.

Predictive maintenance routines also benefit from the CSK6-YKW’s cumulative count data. Maintenance engineers can configure PLC logic — for example, within an OMRON CX-Programmer ladder program — to generate a maintenance alert when the counter reaches a predefined cycle threshold. This prevents both premature maintenance (which wastes labor and parts) and overdue maintenance (which risks catastrophic failure and extended downtime). The result is a tighter equipment utilization curve and a lower mean energy cost per produced unit.

For facilities pursuing ISO 50001 maintenance planning certification, the CSK6-YKW provides a low-cost, tamper-evident mechanical record of machine cycles that complements digital condition monitoring systems. Its purely mechanical register requires no backup power, no battery, and no firmware — eliminating three common points of failure in digital counting solutions and reducing the total cost of ownership over the product’s service life.

Every unit shipped by ZYPLC undergoes functional verification testing prior to dispatch, confirming coil continuity, reset mechanism operation, and digit wheel alignment. Stock is maintained for shipment arranged after confirmation, supporting just-in-time maintenance strategies that minimize spare parts inventory carrying costs.

Product Sourcing FAQ

Q1: How does the CSK6-YKW contribute to operational stability compared to digital counters?
The CSK6-YKW uses a mechanical register that consumes power only during the brief coil excitation pulse — typically a few milliseconds per count event. Unlike digital counters with always-on displays and microcontrollers, the CSK6-YKW draws zero standby current between pulses, making it the lower-energy choice for high-cycle, long-duration counting applications.

Q2: Is the CSK6-YKW compatible with OMRON PLC transistor outputs and third-party relay outputs?
Yes. The CSK6-YKW coil is compatible with standard relay contact outputs and transistor (NPN/PNP) outputs when used with an appropriate intermediate relay, such as the OMRON G2R series. Always verify coil voltage rating against your output module’s supply voltage before wiring.

Q3: What is the recommended replacement interval, and how does the warranty terms confirmed during quotation apply?
OMRON CSK Series counters are rated for tens of millions of operations under normal conditions. ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects and verified functional failures from the date of shipment. If a unit fails within the warranty period under normal operating conditions, ZYPLC will arrange replacement or refund after technical review.

Q4: What testing is performed before shipment?
Each CSK6-YKW unit is tested for coil resistance, mechanical reset function, and digit wheel continuity before dispatch. Units that do not meet OMRON’s published specifications are quarantined and not shipped. A test record is available upon request for quality-critical applications.
