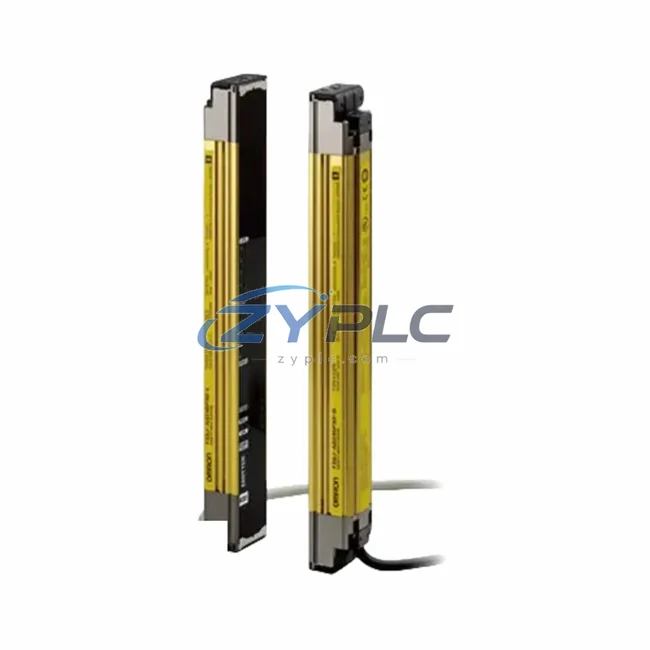

The Omron F3SJ-A0245P14-L is a Type 4 safety light curtain engineered for seamless integration into modern industrial safety networks. With a 245mm protection height and 14mm optical resolution, this device delivers precise personnel detection at machine access points while feeding real-time safety status data into the broader automation architecture — from field-level safety controllers to plant-wide SCADA and HMI systems. In smart factory environments where every millisecond of response time and every byte of diagnostic data matters, the F3SJ-A0245P14-L serves as a critical node in the safety data chain.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully networked production cell, the F3SJ-A0245P14-L does not operate in isolation — it is an active participant in the safety data flow that spans from the physical machine boundary to the enterprise monitoring layer. When a worker approaches a guarded zone, the curtain’s dual OSSD outputs immediately signal the Omron NX-SL3300 Safety Controller, which processes the safety logic and commands the machine’s drive system to halt within the certified response window. This safety event is simultaneously logged and transmitted upstream via the NX-EIC202 EtherNet/IP coupler, making the curtain’s status visible to the Omron NJ501 Machine Automation Controller managing the broader production sequence.

At the HMI layer, operators monitoring the line through an Omron NA5 Series HMI receive live beam-interruption position data and muting state feedback — enabling rapid fault diagnosis without leaving the control station. For multi-axis robot cells where the F3SJ-A0245P14-L guards the collaborative workspace, the safety network integrates with the Omron CJ2M PLC via DeviceNet Safety, ensuring that robot motion profiles are dynamically adjusted based on real-time zone status. Alongside the light curtain, Omron F3SG-4RE Series safety sensors may be deployed at secondary access points, all reporting into the same safety bus for unified zone management.

Further along the data chain, an Omron GX-series Safety Relay Unit provides redundant output switching for high-power actuators, while E3Z photoelectric sensors handle part-presence detection on the infeed conveyor — their signals converging with the F3SJ-A0245P14-L data at the NX safety controller to form a complete picture of machine state. For facilities running mixed-protocol environments, an industrial protocol gateway bridges the EtherNet/IP safety data to PROFINET or Modbus TCP, feeding the plant SCADA system with consolidated safety and production metrics. The Omron F3SJ-A0625P14 (625mm protection height variant) can be deployed in parallel on taller machine openings, sharing the same network topology and diagnostic framework.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial safety system upgrades is the fragmentation of safety data — light curtains that trip but leave no digital trace, safety relays that switch but cannot report to SCADA, and machine zones that are invisible to the plant’s overall equipment effectiveness (OEE) dashboard. The F3SJ-A0245P14-L directly addresses this data isolation problem through its network-ready architecture.

By connecting the curtain’s OSSD outputs to an EtherNet/IP-capable safety controller such as the NX-SL3300, every safety event — beam interruption, muting activation, device fault, or reset request — becomes a timestamped data record accessible to the plant’s SCADA and MES layers. This transforms the safety device from a passive interlock into an active source of production intelligence: downtime caused by safety trips can be correlated with shift patterns, product changeovers, or specific operator behaviors, enabling targeted process improvements.

Protocol unification is equally critical in brownfield sites where legacy DeviceNet or hardwired safety systems coexist with modern EtherNet/IP infrastructure. The F3SJ-A0245P14-L’s compatibility with both DeviceNet Safety and EtherNet/IP (via coupler) allows it to bridge old and new network segments without requiring a full system replacement. Remote diagnostics capability means maintenance engineers can interrogate the curtain’s beam status, contamination level, and output health from the control room — reducing unplanned downtime and eliminating the need for physical inspection during production hours. As production lines scale, additional F3SJ units and complementary safety devices can be added to the network without architectural redesign, supporting modular factory expansion aligned with Industry 4.0 principles.

Industrial Connectivity FAQ

Q1: What is the communication latency of the F3SJ-A0245P14-L in an EtherNet/IP safety network?
The F3SJ-A0245P14-L has a safety response time of ≤ 8 ms in standard mode. When integrated via the NX-EIC202 EtherNet/IP coupler into an Omron NX/NJ safety network, the end-to-end safety reaction time (including controller processing) typically remains well within IEC 62061 SIL 2 requirements. Network cycle time should be configured at ≤ 4 ms for optimal real-time performance in high-speed machine applications.

Q2: Is the F3SJ-A0245P14-L compatible with non-Omron PLCs and SCADA systems?
Yes. While the F3SJ-A0245P14-L is optimized for Omron NX/NJ and CJ2M platforms, its OSSD safety outputs are hardware-standard and compatible with any IEC 61496 Type 4-compliant safety controller. For PROFINET or Modbus TCP SCADA integration, a protocol gateway converts the EtherNet/IP safety data to the target protocol, enabling connectivity with Siemens, Rockwell, Schneider, and other control platforms.

Q3: How is network stability ensured in high-EMI industrial environments?
The F3SJ-A0245P14-L is designed to IEC 61496 Type 4 electromagnetic immunity standards, ensuring reliable operation in environments with variable-frequency drives, welding equipment, and high-current switching. The EtherNet/IP network layer should use industrial-grade managed switches with VLAN segmentation to isolate safety traffic from standard automation data, minimizing interference and ensuring deterministic communication.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every F3SJ-A0245P14-L unit supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification including OSSD output testing, beam alignment confirmation, and power-on self-test validation. Units are shipped in original or equivalent protective packaging via DHL or FedEx with full tracking, ensuring safe delivery to your facility.
