OMRON F3SN-A0225P14-D Interface for F3SN Systems

OMRON F3SN-A0225P14-D: Industrial Safety Data Link for F3SN Series Systems

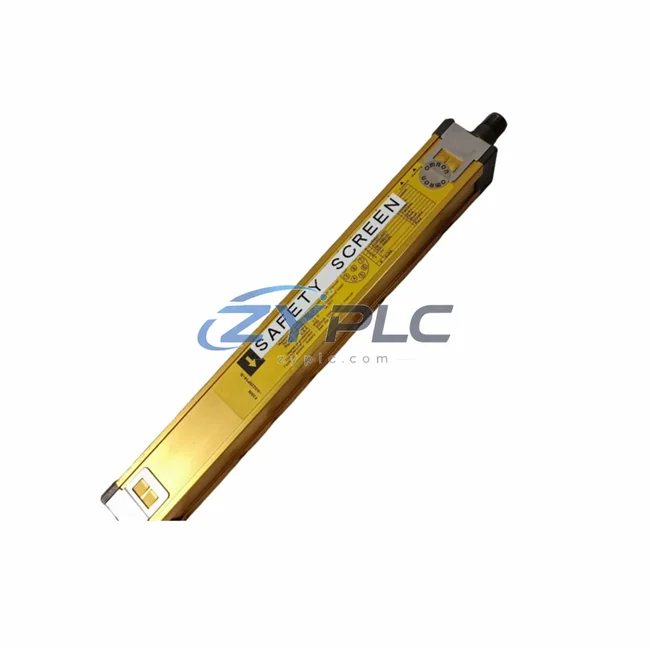

The OMRON F3SN-A0225P14-D is a high-performance safety light curtain engineered for seamless integration into modern industrial automation networks. With a 225 mm protective height and 14 mm optical resolution, this device delivers SIL2/PLe-rated personnel protection while simultaneously feeding real-time safety status data into the broader plant control architecture — bridging the gap between physical safeguarding and digital factory intelligence.

In today’s smart manufacturing environment, a safety device is no longer a standalone barrier. The F3SN-A0225P14-D functions as a critical data node within the industrial safety network, transmitting beam-interruption events, muting status, and diagnostic signals to upstream safety controllers and SCADA platforms with deterministic response times. This makes it an indispensable component in any facility pursuing IIoT-driven operational transparency.

Compatibility & Integration Notes

Connected Automation Data Flow

The F3SN-A0225P14-D sits at the field device layer of the industrial safety architecture, where its OSSD outputs connect directly to an OMRON NX-SL5500 safety controller or G9SP-N10S compact safety relay. These safety controllers evaluate the dual-channel signal in real time, executing machine stop commands within the required Performance Level e response window. The safety status — whether the protective field is clear, interrupted, or in a muting cycle — is then propagated upstream via EtherNet/IP to the plant’s NJ501-1300 machine automation controller.

From the NJ501, safety and production data converge on the OMRON NA5-15W101B HMI, where operators monitor light curtain status, muting activation counts, and fault history on a single touchscreen. Simultaneously, the CJ2M-CPU31 PLC coordinates the broader production cell, receiving interlock signals from the safety network and adjusting conveyor speed or robot arm position accordingly. The OMRON 3G3MX2 inverter driving the conveyor motor receives its run/stop command from this interlock chain, ensuring that any beam interruption results in an immediate, controlled deceleration rather than an abrupt stop that could damage product or tooling.

For facilities running distributed I/O architectures, the F3SN-A0225P14-D integrates with OMRON GX-series EtherNet/IP remote I/O terminals, allowing safety status to be aggregated alongside analog sensor data from proximity switches, photoelectric sensors, and vision systems. This consolidated data stream feeds into the plant SCADA layer — typically running on OMRON SCADA software or a third-party platform — where historians log every safety event with millisecond timestamps for compliance reporting and root-cause analysis.

Edge intelligence is added through an OMRON NYB Industrial Box PC acting as an edge gateway, running local analytics on safety event frequency and predicting maintenance windows before nuisance tripping becomes a production issue. Remote diagnostic access is secured via the OMRON CS1W-ETN21 Ethernet unit, enabling engineering teams to interrogate light curtain alignment status and OSSD output health from a remote workstation without entering the hazardous zone.

Solving Data Isolation in Industrial Sites

Many manufacturing sites still operate safety devices as isolated hardwired loops — a beam breaks, a relay drops, a machine stops, and no digital record is created. The F3SN-A0225P14-D, when paired with an appropriate safety gateway or EtherNet/IP-capable safety controller, eliminates this data isolation entirely. Every safety event becomes a timestamped, network-visible data point that can be correlated with production throughput, OEE metrics, and maintenance schedules.

Protocol fragmentation is another common barrier. Older lines may use DeviceNet or hardwired safety mats alongside newer EtherNet/IP devices. The F3SN-A0225P14-D’s OSSD outputs are protocol-agnostic at the field level, making it straightforward to interface with legacy safety relays while simultaneously feeding a modern safety PLC that bridges to the EtherNet/IP backbone. This hybrid approach protects capital investment in existing infrastructure while enabling a phased migration to fully networked safety architectures.

Remote monitoring and transparent production lines are achieved by surfacing F3SN-A0225P14-D status data in the SCADA/HMI layer. Maintenance engineers can set alarm thresholds on beam-interruption frequency — a leading indicator of misaligned tooling or operator workarounds — and receive push notifications before a safety incident occurs. System expansion is equally straightforward: additional F3SN units can be cascaded using the series’ built-in muting and blanking functions, and their collective status is managed through a single EtherNet/IP node, keeping network topology clean as the production cell grows.

All units supplied by ZYPLC undergo pre-shipment functional testing, including OSSD output verification, response time measurement, and muting circuit validation. Stock is maintained for rapid dispatch, and every F3SN-A0225P14-D is covered by a warranty terms confirmed during quotation from the date of delivery.

Industrial Connectivity FAQ

Q1: What is the communication response time of the F3SN-A0225P14-D, and is it suitable for high-speed press applications?
The F3SN-A0225P14-D achieves a safety response time of ≤ 10 ms from beam interruption to OSSD output de-energization. When combined with a fast safety controller such as the OMRON NX-SL5500, the total system response time can be calculated to meet the stopping distance requirements of high-speed press and stamping applications in accordance with ISO 13855.

Q2: Is the F3SN-A0225P14-D compatible with EtherNet/IP and CC-Link IE Safety networks?
The F3SN-A0225P14-D uses hardwired OSSD dual-channel outputs as its primary interface. EtherNet/IP and CC-Link IE Safety network integration is achieved by connecting the OSSD outputs to a compatible safety controller (e.g., OMRON NX-SL5500 or NX-SL3300) that natively supports these protocols, allowing safety status to be broadcast across the plant network without additional gateways.

Q3: How does the muting function affect network stability and SCADA data integrity?
During a muting cycle, the F3SN-A0225P14-D suppresses the safety output for a defined window to allow material passage, but the muting status signal is transmitted continuously to the safety controller. This means SCADA historians receive a complete, uninterrupted record of muting activation and deactivation events, preserving data integrity for compliance audits and eliminating false-alarm entries in the safety event log.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every F3SN-A0225P14-D dispatched by ZYPLC is tested for OSSD output functionality, optical alignment, response time, and muting circuit integrity before shipment. The warranty terms confirmed during quotation covers manufacturing defects and component failures under normal operating conditions. Replacement or repair is arranged promptly, and our technical team provides remote diagnostic support to minimize downtime during any warranty claim process.
