Omron ITNC-EIS01-DRM DeviceNet Network Interface | ITNC Series

Omron ITNC-EIS01-DRM: Industrial DeviceNet Gateway for Smart Factory Data Links

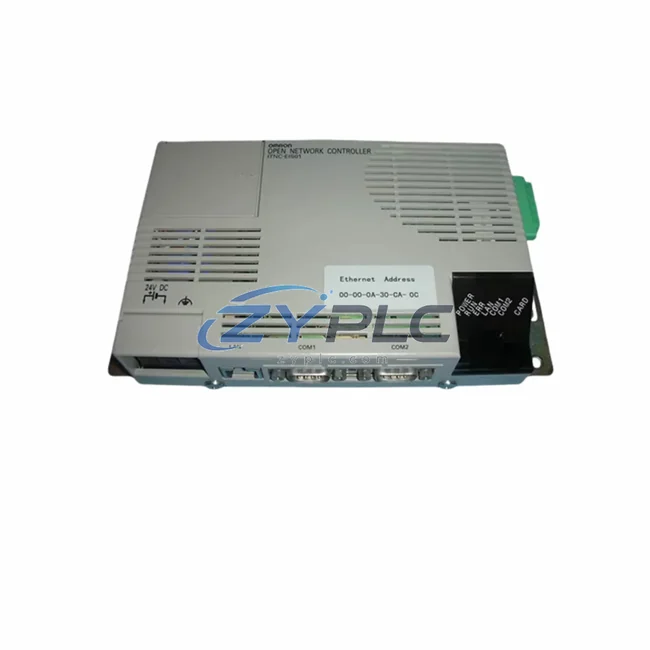

The Omron ITNC-EIS01-DRM is a high-performance Open Network Controller designed to serve as the DeviceNet master node in complex industrial automation architectures. As factories transition toward fully connected, data-driven production environments, the ITNC-EIS01-DRM acts as the critical communication bridge between field-level devices and upper-level control and monitoring systems. Whether integrating distributed I/O nodes, variable frequency drives, smart sensors, or PLC subsystems, this controller ensures that real-time data flows reliably across every layer of the automation pyramid.

In a typical smart factory deployment, signal acquisition begins at the field device level — photoelectric sensors, proximity switches, pressure transmitters, and encoder modules all generate continuous process data. The ITNC-EIS01-DRM collects this data via the DeviceNet network, acting as the master controller that polls each slave node on a deterministic scan cycle. This eliminates the latency and data loss associated with legacy point-to-point wiring, replacing it with a structured, addressable network topology that supports up to 64 nodes per segment.

Compatibility & Integration Notes

Connected Automation Data Flow

The ITNC-EIS01-DRM sits at the heart of a layered industrial network, coordinating data exchange between field instruments and supervisory systems. In a representative production line, the controller interfaces directly with CJ1W-DRM21 DeviceNet master units installed in OMRON CJ-series PLC racks, enabling seamless co-existence of multiple DeviceNet segments under a unified control architecture. The CJ2M-CPU31 or CJ2M-CPU33 CPU modules handle the logic execution while the ITNC-EIS01-DRM manages the network master role, offloading communication overhead from the main CPU and improving overall system throughput.

On the field device side, remote I/O expansion is achieved through DRT2-series DeviceNet slave terminals, which aggregate digital and analog signals from sensors and actuators distributed across the production floor. These slave nodes report status data back to the ITNC-EIS01-DRM in real time, enabling the SCADA layer — typically running on OMRON’s CX-Supervisor or third-party platforms such as Wonderware or Ignition — to display live process variables, trend data, and alarm states without polling delays.

For human-machine interface integration, the ITNC-EIS01-DRM communicates upstream via Ethernet/IP to NS-series HMI panels (such as the NS12-TS01B-V2 or NS10-TV00B-V2), providing operators with real-time visibility into DeviceNet node status, I/O diagnostics, and network health metrics. This bidirectional data path also supports remote parameter writing, allowing operators to adjust setpoints on connected 3G3MX2-series variable frequency drives directly from the HMI without interrupting production.

In multi-network factory environments, the ITNC-EIS01-DRM bridges DeviceNet field data to the Ethernet backbone, where NX-series machine controllers (such as the NX1P2 or NX102) coordinate higher-level motion and process sequences. Edge gateway devices installed alongside the ITNC-EIS01-DRM can further forward aggregated data to cloud-based MES or ERP platforms, completing the IIoT data chain from sensor to enterprise system. Industrial-grade managed Ethernet switches — such as the W4S1-series — ensure network segmentation, VLAN support, and redundant ring topology to maintain communication stability even during partial network failures.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of multiple, incompatible communication protocols across different generations of equipment. Older production lines may rely on proprietary serial protocols or hardwired I/O, while newer installations use DeviceNet, EtherNet/IP, or PROFIBUS. Without a capable network controller, these systems operate as isolated data islands — unable to share process information, synchronize operations, or support centralized monitoring.

The ITNC-EIS01-DRM directly addresses this fragmentation. By acting as a DeviceNet master with an Ethernet/IP upstream interface, it creates a transparent data bridge between field-level devices and plant-wide control networks. Process data that was previously trapped within a single PLC or I/O subsystem becomes accessible to SCADA dashboards, historian databases, and remote diagnostic tools in real time. This transparency is essential for production line optimization, predictive maintenance scheduling, and regulatory compliance reporting.

Remote monitoring and diagnostics are further enhanced by the controller’s built-in network management functions. Maintenance engineers can query node status, error counters, and communication statistics from any networked workstation without physically accessing the control panel. When a DeviceNet slave node goes offline or reports a fault, the ITNC-EIS01-DRM generates an alarm event that propagates immediately to the SCADA system and HMI, enabling rapid fault isolation and minimizing unplanned downtime.

System expansion is equally straightforward. Adding new DeviceNet slave devices — additional I/O terminals, smart sensors, or drive units — requires only network address assignment and configuration via OMRON’s CX-Integrator software tool, without rewiring or modifying the existing control cabinet. This scalability makes the ITNC-EIS01-DRM a future-proof investment for factories planning phased automation upgrades.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication initialization, node scanning, and Ethernet connectivity before dispatch. Stock is maintained for immediate availability, with global shipping via DHL and FedEx. All units are covered by a warranty terms confirmed during quotation from the date of shipment.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed supported by the ITNC-EIS01-DRM on the DeviceNet network?
The ITNC-EIS01-DRM supports DeviceNet baud rates of 125 kbps, 250 kbps, and 500 kbps. The appropriate speed should be selected based on cable length and the number of nodes on the network segment, following ODVA DeviceNet cabling guidelines.

Q2: Is the ITNC-EIS01-DRM compatible with non-OMRON PLCs and SCADA systems?
Yes. The Ethernet/IP interface on the ITNC-EIS01-DRM is an open standard protocol, allowing integration with SCADA platforms, HMI systems, and PLCs from other manufacturers that support EtherNet/IP or TCP/IP communication. DeviceNet slave devices from third-party vendors are also supported, provided they comply with the ODVA DeviceNet specification.

Q3: How does the ITNC-EIS01-DRM maintain network stability in high-noise industrial environments?
The controller is designed to OMRON’s industrial-grade hardware standards, with robust EMI shielding and DeviceNet’s inherent differential signaling providing noise immunity. For additional stability, it is recommended to use shielded DeviceNet cables, proper grounding practices, and network termination resistors at both ends of the trunk line.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the ITNC-EIS01-DRM?
All ITNC-EIS01-DRM units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing including DeviceNet master initialization, node communication verification, and Ethernet port connectivity checks. Units that do not pass testing are not dispatched.
