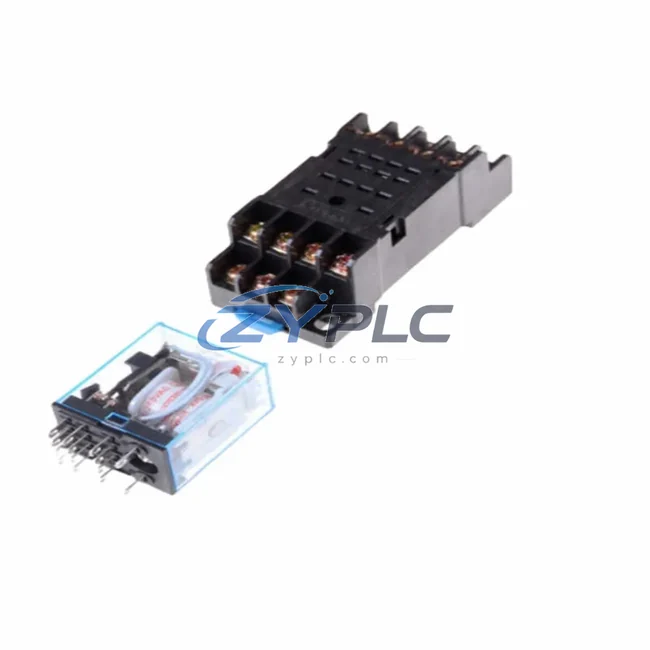

Omron MY4NJ Power Relay for MY-Series

Omron MY4NJ Power Relay for MY-Series

The Omron MY4NJ is a 4PDT (4-pole double-throw) plug-in power relay engineered for seamless integration within OMRON MY-Series control system architectures. Rather than functioning as a standalone switching component, the MY4NJ is designed to operate as a coordinated element within a layered automation framework — bridging the output layer of programmable logic controllers with field-level actuators, solenoids, motor starters, and signal conditioning circuits. Its mechanical and electrical characteristics are optimized for consistent performance across control cabinets where system coherence, long-term reliability, and maintainability are primary engineering objectives.

In modern industrial control environments, relay selection is not merely a component decision — it is an architectural one. The MY4NJ occupies a critical position in the execution layer, receiving discrete output signals from OMRON CP1E, CP1L, CJ2M, or CS1D series PLCs and translating them into reliable switching actions for downstream field devices. Its compatibility with the PYF14A relay socket and the PYC-A1 hold-down clip ensures that it integrates directly into standardized DIN-rail mounted relay panels without requiring custom wiring adaptations, reducing engineering overhead and improving cabinet consistency.

System engineers specifying the MY4NJ benefit from its system integration capability — the relay’s coil voltage options (including 24VDC, 110VAC, and 220VAC variants) allow it to be matched precisely to the power distribution architecture of the control cabinet, whether sourced from a S8VS-series switching power supply or a conventional transformer-based panel supply. This voltage flexibility ensures that the MY4NJ can be deployed uniformly across multi-zone control systems without introducing power domain mismatches that complicate commissioning and maintenance.

Product Specification Table

System Compatibility Notes

The MY4NJ achieves its highest value when specified as part of a coordinated OMRON control system rather than as an isolated component. In a typical CJ2M-based automation cell, the PLC’s discrete output module — such as the CJ1W-OC211 transistor output unit or the CJ1W-OD211 — drives the MY4NJ coil through the PYF14A socket, which is mounted on a G7TC-OC16 I/O terminal block or equivalent relay terminal assembly. This arrangement allows engineers to standardize the entire output interface layer, simplifying both initial wiring and future troubleshooting.

On the power distribution side, the MY4NJ coil is typically energized from an S8VS-06024 or S8VK-series 24VDC switching power supply, which provides stable, regulated voltage essential for consistent relay operate and release timing. In redundant architectures — particularly those built around the CS1D dual-CPU platform — dual power feeds with automatic switchover ensure that relay coil voltage is maintained even during primary supply failures, preserving system uptime in critical process environments.

For human-machine interface coordination, the MY4NJ status is often reflected on an NB7W-TW01B or NS-series HMI panel via discrete input feedback wiring, giving operators real-time visibility into relay state without requiring additional fieldbus communication overhead. In larger systems, the relay panel may be monitored through an OMRON CJ1W-SCU21-V1 serial communication unit or integrated into a DeviceNet or EtherNet/IP network via a CJ1W-DRM21 master unit, enabling remote diagnostics and predictive maintenance scheduling.

The MY4NJ also coordinates naturally with G2R-series intermediate relays for signal amplification stages, MY2NJ twin-coil relays for latching applications, and G7L-series high-capacity power relays where load currents exceed the MY4NJ’s 5A rating. This layered relay architecture — from signal-level MY2NJ units through mid-range MY4NJ switching relays to high-power G7L contactors — provides engineers with a coherent, scalable switching hierarchy that can be expanded or reconfigured without redesigning the control cabinet layout.

Industrial Application Notes

In manufacturing and assembly line automation, the MY4NJ is widely deployed in conveyor control panels, robotic cell safety circuits, and machine tool auxiliary control systems. Its 4PDT configuration allows a single relay to simultaneously control multiple independent circuits — for example, switching a motor starter coil, activating a status indicator lamp, enabling a safety interlock, and triggering a downstream process signal — all from a single PLC output point. This multi-circuit switching capability reduces the total relay count in complex panels and simplifies cabinet wiring.

In power generation and electrical substation applications, the MY4NJ serves as an auxiliary relay in protection and control panels, where its high insulation resistance and dielectric strength ratings meet the electrical isolation requirements of medium-voltage switchgear control circuits. Its transparent dust cover and LED status indicator (MY4NJ suffix) support rapid visual inspection during routine maintenance rounds, reducing the time required for panel status verification.

In petrochemical and process control environments, the MY4NJ is specified for shutdown system interfaces, where reliable operate and release timing is critical for process safety. Its wide operating temperature range (-55°C to +70°C) ensures consistent performance in both climate-controlled control rooms and outdoor junction boxes in harsh industrial environments.

For water treatment and municipal infrastructure systems, the MY4NJ is used in pump control panels, valve actuator circuits, and alarm annunciator systems. Its long mechanical life (50 million operations) and electrical life (500,000 operations at rated load) make it suitable for high-cycle applications where relay replacement frequency directly impacts maintenance costs and system availability.

In mining, metallurgy, and heavy industry applications, the MY4NJ is integrated into motor control centers, conveyor drive panels, and process monitoring systems where vibration resistance and thermal stability are essential. Its plug-in socket design (PYF14A) allows field replacement in under two minutes without rewiring, minimizing production downtime during corrective maintenance.

Product Compatibility FAQ

Q1: Is the MY4NJ compatible with OMRON CJ2M and CP1L series PLC output modules for direct coil driving?
Yes. The MY4NJ 24VDC coil variant is directly compatible with OMRON CJ2M transistor output modules (e.g., CJ1W-OD211) and CP1L-series sink/source output units. The coil current draw (approximately 67mA at 24VDC) is well within the per-point output current rating of standard OMRON transistor output modules. For AC coil variants (100VAC, 220VAC), an intermediate relay or solid-state relay driver stage is recommended to interface with PLC output modules. The PYF14A socket provides the standardized 14-pin interface required for MY4NJ installation, and the PYC-A1 hold-down clip ensures mechanical retention under vibration conditions typical of industrial control cabinets.

Q2: How does the MY4NJ support redundant architecture designs, and what is the recommended approach for critical process applications?
In redundant control architectures — such as those built on the OMRON CS1D dual-CPU platform — the MY4NJ is typically deployed in a dual-coil configuration where two independent PLC output channels drive separate relay coils through diode isolation circuits, ensuring that relay energization is maintained even if one CPU or output module fails. For safety-critical applications, the MY4NJ can be integrated into a 1oo2 (one-out-of-two) or 2oo3 voting relay configuration, where multiple MY4NJ units are wired in series or parallel to achieve the required safety integrity level. All MY4NJ units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, and our engineering team can provide application-specific wiring recommendations for redundant relay panel designs upon request.

Q3: What is the recommended maintenance interval for MY4NJ relays in high-cycle industrial applications, and how does the warranty terms confirmed during quotation apply to field-installed units?
For high-cycle applications (greater than 1,000 operations per day), OMRON recommends periodic inspection of MY4NJ contact condition at intervals determined by the actual load current and switching frequency relative to the relay’s rated electrical life (500,000 operations at rated resistive load). In practice, many industrial installations achieve 3–5 years of service life under moderate load conditions before contact replacement is required. The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and electrical performance failures from the date of shipment, and applies to field-installed units provided that installation has been carried out in accordance with OMRON’s published specifications. Warranty claims are processed through ZYPLC’s technical support team at plc.sales@zyplc.com, and replacement units are dispatched from availability subject to RFQ confirmation to minimize system downtime.
