OMRON S82G-1024 Industrial Network Interface for S82G Systems

OMRON S82G-1024 Industrial Network Interface for S82G Systems: Powering the Industrial Data Link

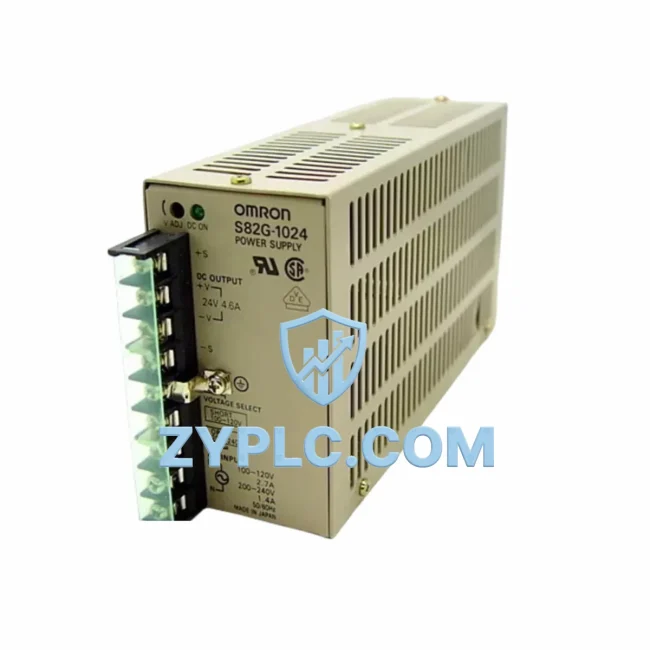

In modern smart factory environments, stable and reliable power delivery is the invisible backbone of every industrial data link. The OMRON S82G-1024 is a 24VDC, 1A industrial power supply unit from the proven S82G Series, engineered to sustain uninterrupted communication across field devices, PLC controllers, remote I/O modules, HMI panels, SCADA gateways, variable frequency drives, sensors, and edge computing nodes. Where data flows, power must never falter — and the S82G-1024 is built precisely for that mission.

Industrial network architectures depend on consistent, noise-free DC power to maintain protocol integrity across Ethernet/IP, PROFIBUS, Modbus RTU/TCP, DeviceNet, and CC-Link communication layers. The S82G-1024 delivers regulated 24VDC output with tight voltage tolerance, ensuring that every connected node — from a compact OMRON CP1L-M30DT-D PLC to a distributed CJ1W-SCU41-V1 serial communication unit — operates within its specified electrical envelope. Voltage fluctuations at the power rail translate directly into communication errors, packet loss, and false alarms; the S82G-1024 eliminates this risk at the source.

Network Communication Table

Connected Automation Data Flow

A typical smart factory data flow begins at the sensor layer, where proximity switches, photoelectric sensors, and pressure transmitters generate raw signals that must be reliably powered and conditioned before they reach the control layer. The S82G-1024 supplies the 24VDC rail that energizes these field instruments, ensuring that signal integrity is maintained from the first point of contact.

Moving up the data chain, the OMRON CJ2M-CPU31 PLC receives digitized process data via the CJ1W-SCU41-V1 serial communication unit, which handles Modbus RTU polling across multiple field devices. The S82G-1024 powers the communication backplane, keeping cycle times consistent and preventing the micro-interruptions that cause CRC errors in serial data frames. For applications requiring higher bandwidth, the CJ1W-EIP21 EtherNet/IP unit connects the CJ2M to the plant-level Ethernet ring, where SCADA servers running OMRON CX-Supervisor aggregate real-time production data.

At the remote I/O layer, OMRON GRT1-ML2 CompoNet remote I/O slaves distribute digital and analog signals across the production floor. Each slave node draws its operating power from a dedicated 24VDC supply — a role the S82G-1024 fulfills with its compact DIN rail form factor and stable output regulation. Alongside these I/O nodes, OMRON NS8-TV00-V2 HMI terminals display live process variables, alarm states, and trend graphs, all fed by the same 24VDC bus that the S82G-1024 anchors.

For drive-level integration, OMRON 3G3MX2 variable frequency drives receive speed and torque commands via Modbus RTU from the CJ2M controller. The drives’ control boards require a stable 24VDC logic supply — precisely what the S82G-1024 provides — to maintain accurate frequency output and prevent nuisance trips caused by power rail noise. At the network edge, an OMRON NYB Industrial Box PC running edge analytics software aggregates data from multiple PLCs and forwards compressed datasets to cloud SCADA platforms via OPC-UA, with the S82G-1024 supplying the 24VDC needed for its I/O expansion modules.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate in disconnected silos, preventing plant-wide visibility and real-time decision-making. The S82G-1024 addresses this challenge not as a communication device itself, but as the power foundation that makes multi-protocol integration possible.

When a facility attempts to bridge legacy PROFIBUS segments with modern EtherNet/IP networks, protocol gateways and media converters must operate continuously without power interruption. A single power rail dropout can force a gateway to reboot, severing the data bridge and creating exactly the kind of data island that integration projects are designed to eliminate. The S82G-1024’s regulated output and built-in overvoltage and overcurrent protection ensure that gateway devices remain online through load transients and input voltage variations.

For remote monitoring applications — where SCADA operators need to observe equipment status at substations, pump stations, or remote production cells — the reliability of the 24VDC supply directly determines the availability of the monitoring link. The S82G-1024 supports these deployments with a wide input voltage range and high mean time between failures (MTBF), reducing the frequency of site visits for power-related maintenance. Production line transparency, from raw material intake to finished goods dispatch, depends on every node in the data chain remaining powered and communicating — and the S82G-1024 is the component that keeps that chain intact.

System expansion is equally straightforward. As production capacity grows and new I/O drops, communication modules, or HMI stations are added to the network, additional S82G-series power supplies can be paralleled on the DIN rail without redesigning the control cabinet. The S82G-0524 (5A) and S82G-1524 (15A) variants from the same series provide scalable power capacity for larger node counts, while maintaining identical mounting dimensions and wiring conventions — simplifying both installation and spare parts management.

Industrial Connectivity FAQ

Q1: Does the OMRON S82G-1024 introduce communication latency in Modbus or EtherNet/IP networks?
A: No. The S82G-1024 is a power supply, not a network device, and does not participate in protocol timing. Its role is to provide a stable 24VDC rail that prevents the voltage sags and noise spikes that cause communication retries and increased effective latency in connected devices. Proper power supply selection is one of the most effective ways to reduce unexplained communication delays in industrial networks.

Q2: Is the S82G-1024 compatible with OMRON NJ/NX Series Sysmac controllers and their EtherNet/IP I/O?
A: Yes. The S82G-1024 is compatible with the full range of OMRON control platforms, including NJ501, NX102, and CJ2M series, as well as their associated EtherNet/IP, Modbus TCP, and serial communication expansion units. It supplies the 24VDC logic power required by I/O modules and communication cards across these platforms.

Q3: How does the S82G-1024 support network stability in environments with high electrical noise?
A: The S82G-1024 incorporates input EMI filtering and output ripple suppression to maintain a clean 24VDC rail in electrically noisy industrial environments — including those with variable frequency drives, contactors, and welding equipment operating nearby. This directly reduces bit errors and frame corruption in RS-485 Modbus and DeviceNet communication segments powered from the same cabinet.

Q4: What warranty and pre-shipment testing does the S82G-1024 carry?
A: Every OMRON S82G-1024 unit supplied by ZYPLC carries a 12-month warranty covering manufacturing defects and functional failures. Units undergo output voltage verification and load regulation testing prior to shipment. Fast global delivery via DHL and FedEx is available, with export documentation provided for customs clearance. Contact our team for real-time stock availability and lead time confirmation.
