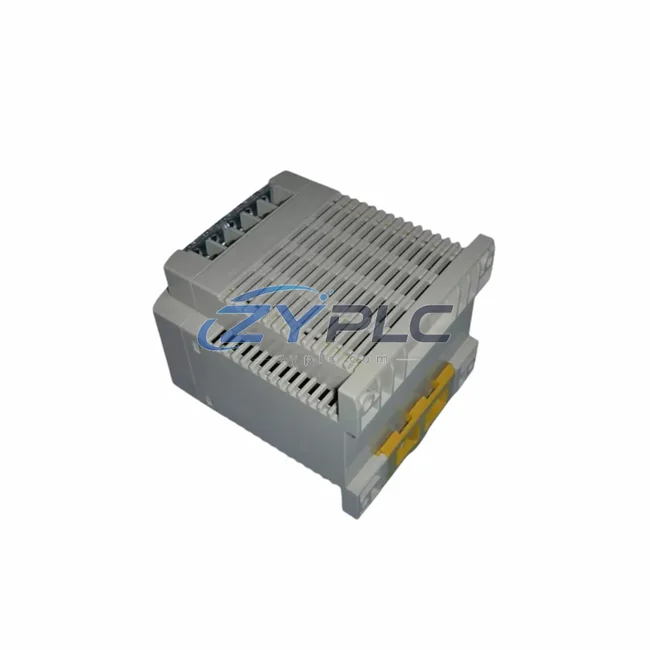

OMRON S82K-03024 Power Supply for S82K Series

OMRON S82K-03024 Power Supply for S82K Series: Control System and system integration

In modern industrial automation, the power supply layer is not a peripheral concern — it is the structural foundation upon which every other control layer depends. The OMRON S82K-03024 is a 30W, 24VDC DIN-rail-mounted switching power supply engineered for seamless system integration within OMRON’s S82K series and broader PLC-based control architectures. Whether deployed in a compact machine controller cabinet or a multi-rack distributed control system, the S82K-03024 delivers stable, regulated DC power that underpins the reliable operation of every upstream and downstream component in the automation hierarchy.

Understanding the S82K-03024 requires viewing it not as a standalone unit, but as a critical node in a layered control system. From the CPU module at the control layer, through the I/O expansion racks, communication gateways, HMI panels, and field-level actuators, every device in the architecture depends on a clean, consistent power source. The S82K-03024 fulfills this role with precision, providing 24VDC output with tight voltage regulation, wide-range AC input compatibility, and built-in protection features that safeguard the entire system against transient faults, overloads, and short-circuit events.

In OMRON CJ-series and CS-series PLC architectures, the power supply module is the first component selected during system design. The S82K-03024 is frequently paired with CPU units such as the CJ2M-CPU31 or CS1G-CPU42H, providing the 24VDC rail voltage required for field sensor loops, digital I/O modules, and communication interface cards. When the control cabinet also houses an NS8-TV00-V2 or NS10-TV00-V2 HMI terminal, the S82K-03024 can supply the panel’s DC input directly, reducing the number of independent power conversion stages and simplifying the overall cabinet layout.

At the I/O layer, modules such as the CJ1W-ID211 (16-point 24VDC digital input) and CJ1W-OD211 (16-point transistor output) draw their operating power from the 24VDC bus. The S82K-03024’s 1.3A continuous output current is well-suited to powering clusters of these modules in compact machine control panels, while its low ripple and noise specification ensures that analog input modules — such as the CJ1W-AD041-V1 — receive a clean reference voltage, preserving signal accuracy across the full 4–20mA or 1–5V input range.

At the network and communication layer, devices such as the CJ1W-SCU41 serial communication unit and CJ1W-EIP21 EtherNet/IP unit require stable 24VDC power to maintain continuous protocol exchange with upstream SCADA systems, remote I/O nodes, and peer controllers. Power interruptions or voltage sags at this layer can cause communication timeouts, data loss, and unplanned system restarts. The S82K-03024’s built-in overvoltage and overcurrent protection, combined with its hold-up time specification, provides the buffer necessary to ride through brief AC line disturbances without disrupting active communication sessions.

For redundant power architectures — common in water treatment, power generation, and petrochemical applications — two S82K-03024 units can be operated in parallel using OMRON’s recommended diode-OR configuration, ensuring that a single power supply failure does not interrupt system operation. This approach is particularly valuable in installations where the control system manages critical process variables and unplanned downtime carries significant safety or financial consequences.

In the execution layer, the 24VDC output of the S82K-03024 directly energizes relay coils, solenoid valve drivers, and pilot light circuits. When used alongside an OMRON G2R-2-SN relay module or a G7SA safety relay, the S82K-03024 provides the coil voltage required for reliable switching, while its short-circuit protection prevents a shorted output load from propagating damage to the CPU or I/O backplane. This layer-by-layer protection philosophy is central to OMRON’s system architecture design guidelines and is reflected in the S82K series product family’s specification envelope.

From an engineering and maintenance perspective, the S82K-03024’s compact DIN-rail form factor simplifies panel layout and allows for high-density installation alongside terminal blocks, circuit breakers, and surge protection devices. Its front-panel LED status indicator provides immediate visual confirmation of output voltage presence, reducing diagnostic time during commissioning and fault investigation. Replacement and hot-swap procedures are straightforward, minimizing mean time to repair (MTTR) in production environments where every minute of downtime has measurable cost.

ZYPLC maintains availability subject to RFQ confirmation of the S82K-03024 with full functional testing prior to shipment. Every unit is covered by a warranty terms confirmed during quotation, providing engineering teams and procurement managers with the confidence to specify this module for both new installations and legacy system maintenance programs. Our inventory management system ensures consistent availability, supporting both urgent single-unit replacement orders and larger project-quantity procurement requirements.

Product Specification Table

System Compatibility Notes

The S82K-03024 is most effectively deployed as part of a coordinated OMRON control system architecture. In a typical CJ-series machine control panel, the power supply feeds the 24VDC bus shared by the CJ2M-CPU31 CPU unit, CJ1W-ID211 digital input modules, CJ1W-OD211 transistor output modules, and CJ1W-AD041-V1 analog input modules. The CJ1W-SCU41 serial communication unit and CJ1W-EIP21 EtherNet/IP unit draw their logic power from the same 24VDC rail, maintaining continuous data exchange with upstream SCADA and MES systems. HMI panels such as the NS8-TV00-V2 can be powered directly from the S82K-03024 output, while field-level relay modules including the G2R-2-SN and safety relays such as the G7SA series receive their coil voltage from the same regulated bus. This unified power architecture reduces wiring complexity, simplifies grounding design, and ensures that all control system components share a common voltage reference — a prerequisite for reliable signal integrity across the full automation hierarchy.

Industrial Application Notes

The S82K-03024 is well-suited to a broad range of industrial automation applications where stable 24VDC power is a system-critical requirement. In discrete manufacturing environments — including automotive assembly, electronics production, and packaging lines — the module powers the PLC I/O layer that controls conveyor drives, pick-and-place actuators, vision system triggers, and barcode scanner interfaces. In process control applications such as water treatment plants and chemical dosing systems, the S82K-03024 provides the DC power required for 4–20mA transmitter loops, solenoid valve drivers, and remote I/O nodes connected via PROFIBUS or EtherNet/IP. In power generation and electrical substation automation, where control panel reliability is paramount, the S82K-03024’s wide-range AC input and built-in protection features make it a dependable choice for relay protection panels and bay control units. In mining and metallurgical applications, where ambient temperature ranges are wide and vibration levels are elevated, the module’s industrial-grade construction and DIN-rail mounting provide the mechanical stability required for long-term reliable operation. Across all these sectors, the warranty terms confirmed during quotation provided by ZYPLC ensures that engineering teams can specify the S82K-03024 with confidence, knowing that post-installation support and replacement supply are available throughout the warranty period.

Product Compatibility FAQ

Q1: Is the S82K-03024 compatible with OMRON CJ-series and CS-series PLC backplanes?
The S82K-03024 is a standalone DIN-rail power supply, not a backplane-mounted module. It provides the 24VDC bus voltage required by CJ-series and CS-series I/O modules, HMI panels, and communication units, but it connects to the system via standard DC wiring rather than direct backplane insertion. For backplane power, OMRON CJ-series systems use dedicated power supply units such as the CJ1W-PA202 or CJ1W-PD025. The S82K-03024 is the appropriate choice for powering the field-side 24VDC bus, sensor loops, and relay coil circuits within the same control cabinet.

Q2: Can two S82K-03024 units be used in a redundant power configuration?
Yes. Two S82K-03024 units can be configured in a redundant (diode-OR) arrangement to provide N+1 power redundancy for the 24VDC bus. In this configuration, each unit independently supplies the bus through a blocking diode, so that if one unit fails, the other continues to supply the load without interruption. This approach is recommended for critical process control applications in water treatment, power generation, and petrochemical industries where unplanned power interruptions are not acceptable. ZYPLC can supply matched pairs of S82K-03024 units for redundant installations, both covered under the warranty terms confirmed during quotation.

Q3: What is the recommended maintenance and replacement interval for the S82K-03024 in continuous-duty industrial applications?
OMRON recommends periodic inspection of switching power supplies in continuous-duty applications, with particular attention to output voltage accuracy, ripple levels, and thermal performance. In high-ambient-temperature environments (above 40°C), electrolytic capacitor aging may reduce the effective service life below the rated MTBF. As a best practice, engineering teams should schedule preventive replacement of power supply modules every 5–7 years in critical applications, or immediately upon detection of output voltage drift, increased ripple, or abnormal thermal behavior. ZYPLC maintains consistent stock of the S82K-03024 to support both planned preventive replacement programs and urgent corrective maintenance requirements, with all replacement units covered by the warranty terms confirmed during quotation.
