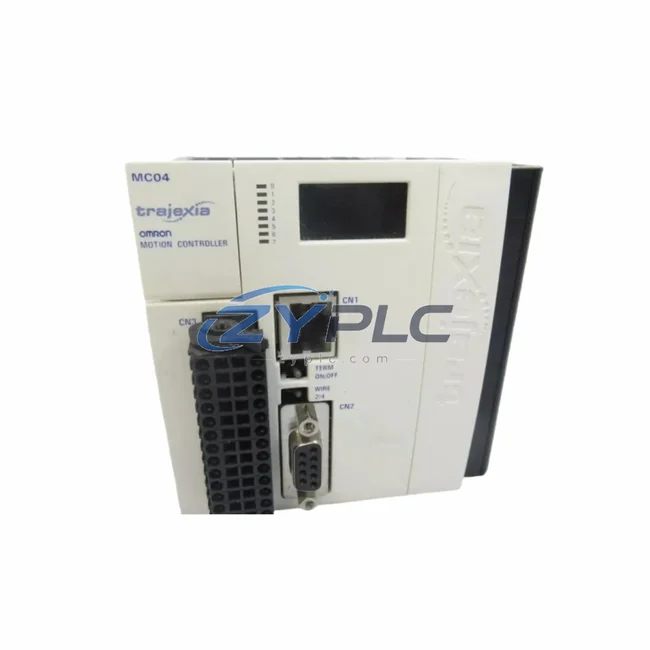

OMRON TJ1-MC04 Motion Controller for Trajexia Systems

OMRON TJ1-MC04: Industrial Data Link for Trajexia Motion Control Systems

The OMRON TJ1-MC04 is a high-performance 4-axis motion controller at the heart of the Trajexia series, engineered to serve as the critical industrial network interface between field-level devices and upper-level control systems. In modern smart factory environments, the TJ1-MC04 bridges the gap between servo drives, sensors, remote I/O modules, HMI panels, SCADA platforms, and PLC controllers — delivering deterministic, real-time data flow across the entire automation architecture. Whether deployed in precision assembly lines, packaging machinery, semiconductor handling, or multi-axis robotic cells, the TJ1-MC04 provides the connectivity backbone that transforms isolated motion axes into a fully integrated, data-transparent production system.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully connected Trajexia automation cell, the TJ1-MC04 operates as the EtherCAT master, orchestrating real-time cyclic data exchange with OMRON R88D-KN series servo drives over a high-speed EtherCAT ring topology. Position feedback, torque commands, and velocity profiles are transmitted with sub-millisecond cycle times, ensuring tight synchronization across all four axes. Simultaneously, the TJ1-MC04 communicates upstream with an OMRON CJ2M or NJ-series PLC via the Trajexia motion bus, enabling the PLC to issue motion commands, read axis status, and coordinate I/O events without latency-induced errors.

At the field level, OMRON GX-series remote I/O terminals connected via EtherCAT feed digital and analog signals — from proximity sensors, photoelectric sensors, and pressure transducers — directly into the TJ1-MC04’s data pipeline. This eliminates the traditional wiring bottleneck and allows the controller to react to field events within a single scan cycle. For operator interaction, OMRON NS-series HMI panels connect to the network, displaying real-time axis positions, alarm states, and production counters sourced directly from the TJ1-MC04’s internal registers.

At the SCADA layer, an OMRON CX-Supervisor or third-party SCADA gateway communicates with the Trajexia system via OPC-UA or Ethernet/IP bridging modules, pulling production KPIs, cycle counts, and fault logs for plant-wide visibility. Edge gateway devices — such as OMRON EJ1 temperature controllers or Sysmac Studio-compatible edge nodes — can aggregate data from multiple TJ1-MC04 units across a production line, forwarding consolidated datasets to MES or cloud analytics platforms. For drive-level diagnostics, OMRON Varispeed or 3G3MX2 variable frequency drives connected on the Mechatrolink-II segment report thermal status, load factor, and fault codes back through the TJ1-MC04, enabling predictive maintenance workflows without additional hardware.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A production line may simultaneously run legacy Mechatrolink-II servo systems alongside newer EtherCAT-based motion axes, with neither segment able to share data natively. The OMRON TJ1-MC04 resolves this by acting as a unified motion network interface — its dual-protocol architecture allows Mechatrolink-II and EtherCAT devices to coexist within a single coordinated motion program, eliminating the data silos that typically force engineers to deploy separate controllers for each bus segment.

Remote monitoring and diagnostics are equally critical in distributed manufacturing environments. With the TJ1-MC04 integrated into the plant network, maintenance engineers can access axis fault histories, encoder feedback anomalies, and communication error logs from a central SCADA workstation or even a remote laptop via VPN — without physically visiting the machine. This capability dramatically reduces mean time to repair (MTTR) and supports predictive maintenance strategies that keep production uptime above target thresholds.

For production line transparency, the TJ1-MC04 enables real-time OEE (Overall Equipment Effectiveness) data collection by exposing cycle time, downtime events, and throughput counters to upper-level MES systems. As production demands grow, the Trajexia architecture scales gracefully: additional TJ1-MC16 or TJ1-MC64 controllers can be added to expand axis count, while the same EtherCAT and Mechatrolink-II infrastructure supports the expanded topology without rewiring. Every unit shipped undergoes full functional testing prior to dispatch, and is backed by a warranty terms confirmed during quotation covering communication faults, hardware defects, and firmware compatibility issues.

Industrial Connectivity FAQ

Q1: What is the communication cycle time of the TJ1-MC04 over EtherCAT?
The TJ1-MC04 supports EtherCAT cycle times as low as 500 microseconds for cyclic synchronous motion data, ensuring deterministic real-time control suitable for high-speed multi-axis interpolation applications.

Q2: Is the TJ1-MC04 compatible with third-party EtherCAT servo drives?
Yes. The TJ1-MC04 implements the EtherCAT master stack compliant with IEC 61158, allowing integration with any EtherCAT-compliant servo drive that supports CiA 402 motion profiles. Compatibility testing is recommended for non-OMRON drives prior to deployment.

Q3: Can the TJ1-MC04 be monitored remotely via SCADA without additional hardware?
When connected to an OMRON CJ2M or NJ-series PLC with Ethernet capability, the TJ1-MC04’s motion data can be exposed to SCADA systems via OPC-UA or Modbus TCP bridging, enabling full remote monitoring without dedicated gateway hardware.

Q4: What does the warranty terms confirmed during quotation cover for the TJ1-MC04?
The warranty terms confirmed during quotation covers hardware defects, communication interface failures, and firmware-related malfunctions under normal operating conditions. Each unit is pre-tested for EtherCAT and Mechatrolink-II communication integrity before shipment. Warranty claims are processed directly with full technical support.
