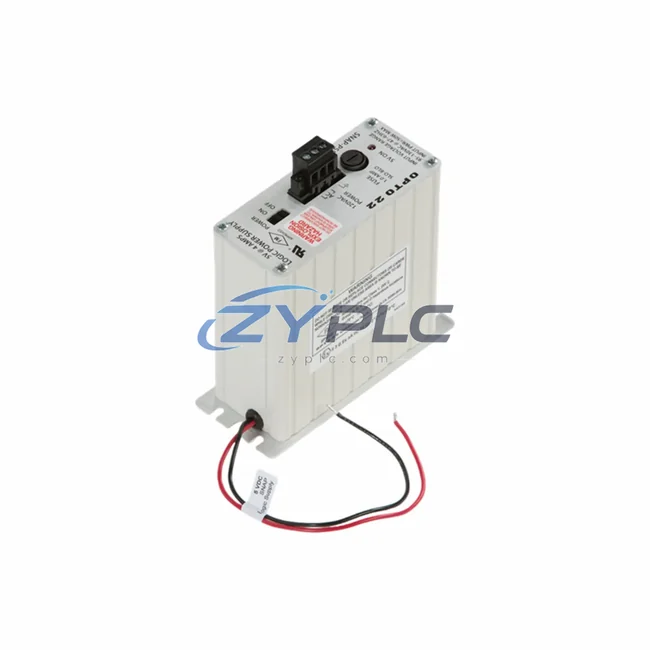

Opto 22 SNAP-PS5 Power Supply for SNAP PAC

Opto 22 SNAP-PS5 Power Supply for SNAP PAC: Control Layer Power Integrity Across Every System Tier

In a fully integrated industrial control architecture, power delivery is not a peripheral concern — it is the foundation upon which every control decision, every I/O transaction, and every communication exchange depends. The Opto 22 SNAP-PS5 is a dedicated 5V DC power supply module engineered specifically for the SNAP PAC rack-based control platform, providing stable, regulated power to the SNAP I/O brain and associated modules within a unified backplane environment. Understanding the SNAP-PS5 means understanding how power integrity propagates through every layer of a distributed control system — from the CPU down through I/O, communications, and field devices.

The SNAP-PS5 is not a standalone component. It is a system-level enabler. When deployed alongside the SNAP-PAC-R1 or SNAP-PAC-S1 programmable automation controller, the SNAP-PS5 ensures that the processor’s I/O brain receives clean, uninterrupted 5V power, eliminating voltage sag conditions that can cause erratic module behavior or communication dropouts. This is particularly critical in high-density I/O configurations where multiple analog and digital modules share the same backplane rail.

Product Specification Table

System Compatibility Notes

A well-engineered SNAP PAC system is built around the principle of layered coordination. The SNAP-PS5 sits at the power layer, but its influence extends upward through every functional tier of the architecture. Consider a typical mid-scale process control installation: the SNAP-PAC-R1 serves as the rack-mounted programmable automation controller, executing ladder logic and flowchart programs while managing real-time I/O scanning. The SNAP-PS5 powers the I/O brain — in many deployments, a SNAP-ENET-S64 Ethernet-based brain — which handles all module communication between the PAC and the field devices.

On the digital I/O side, modules such as the SNAP-IDC-32 (32-channel DC input) and SNAP-ODC-32-SRC (32-channel DC output, sourcing) are mounted directly on the SNAP backplane, drawing their logic-level power from the backplane rail sustained by the SNAP-PS5. Analog signal acquisition is handled by modules like the SNAP-AIV-4 (4-channel analog voltage input) and SNAP-AOV-5 (5-channel analog voltage output), both of which require stable backplane power to maintain measurement accuracy and output linearity. Any instability in the 5V rail directly degrades analog resolution — a risk the SNAP-PS5 is designed to eliminate.

For serial communication requirements, the SNAP-SCM-232 serial communication module integrates into the same rack, enabling RS-232 connectivity to legacy field devices, barcode readers, or third-party instrumentation. The SNAP-B16MC 16-slot mounting rack provides the physical backplane infrastructure that ties all of these modules together, with the SNAP-PS5 supplying the power backbone for the entire assembly. In redundant power configurations, engineers often pair the SNAP-PS5 with an external 24V DC UPS or redundant AC feed to ensure continuous operation during utility interruptions — a standard practice in water treatment, oil and gas, and critical manufacturing environments.

At the human-machine interface layer, Opto 22’s groov EPIC or third-party HMI panels communicate with the SNAP-PAC-R1 via Ethernet/IP or Modbus TCP, with the SNAP-ENET-S64 brain serving as the network gateway between the PAC’s I/O scan engine and the plant-level SCADA system. The SNAP-PS5 ensures that this communication gateway remains powered and responsive at all times, supporting uninterrupted data flow from field sensors through to the control room display.

Industrial Application Notes

The SNAP-PS5 finds application across a broad spectrum of industrial sectors where the SNAP PAC platform is deployed as the primary control architecture. In municipal water treatment facilities, SNAP PAC systems manage pump sequencing, chemical dosing, and flow measurement across multiple remote I/O racks — each requiring a dedicated SNAP-PS5 to maintain backplane power integrity at every distributed node. The module’s universal AC input range makes it suitable for both 120V and 240V panel environments without hardware modification.

In petrochemical and refinery applications, where process continuity is non-negotiable, the SNAP-PS5 supports high-availability control architectures by providing stable power to I/O racks that monitor pressure transmitters, temperature sensors, and valve positioners. The module’s industrial-grade design tolerates the vibration, thermal cycling, and electromagnetic interference common in heavy process environments.

Discrete manufacturing lines — including automotive assembly, electronics production, and packaging machinery — rely on SNAP PAC systems for high-speed digital I/O coordination. In these applications, the SNAP-PS5 ensures that the I/O brain maintains its 100Mbps Ethernet link to the PAC controller without power-related interruptions, supporting cycle times measured in milliseconds. Mining and metallurgical operations similarly benefit from the SNAP-PS5’s robust power delivery in environments where dust, humidity, and temperature extremes challenge conventional control hardware.

For power utility substations and electrical distribution automation, the SNAP PAC platform’s combination of Ethernet communications and modular I/O — all powered by the SNAP-PS5 — provides the reliability and diagnostic transparency required for SCADA integration and remote monitoring. Engineers commissioning these systems appreciate the SNAP-PS5’s straightforward installation: direct rack mounting, no external wiring to the backplane, and immediate compatibility with all SNAP PAC brain and I/O modules.

Product Compatibility FAQ

Q1: Is the SNAP-PS5 compatible with all SNAP PAC rack configurations, including 4-slot and 16-slot racks?
Yes. The SNAP-PS5 is designed to power the SNAP PAC backplane across all standard rack sizes, including the SNAP-B4MC (4-slot), SNAP-B8MC (8-slot), and SNAP-B16MC (16-slot) mounting racks. It provides regulated 5V DC to the I/O brain and all installed modules regardless of rack density. For high-density configurations with many analog modules, verify total current draw against the SNAP-PS5’s rated output to ensure adequate headroom.

Q2: Can the SNAP-PS5 be used in a redundant power architecture, and how does it integrate with external UPS systems?
The SNAP-PS5 accepts a universal AC input (85–264V AC), making it straightforward to connect to UPS-backed AC circuits for power redundancy. In critical applications, engineers typically feed the SNAP-PS5 from a dedicated UPS output, ensuring that the I/O rack remains operational during utility power interruptions. For full power redundancy at the DC level, consult Opto 22’s system design guidelines for dual-supply configurations applicable to your specific rack and brain combination.

Q3: What does the Warranty and support terms confirmed before quote cover, and what is the process for warranty claims through ZYPLC?
All SNAP-PS5 units supplied by ZYPLC carry a Warranty and support terms confirmed before quote covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment. To initiate a warranty claim, contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691 with your order reference and a description of the fault. ZYPLC will coordinate replacement or repair to minimize system downtime, with replacement units typically dispatched within 3–5 business days of claim verification.
