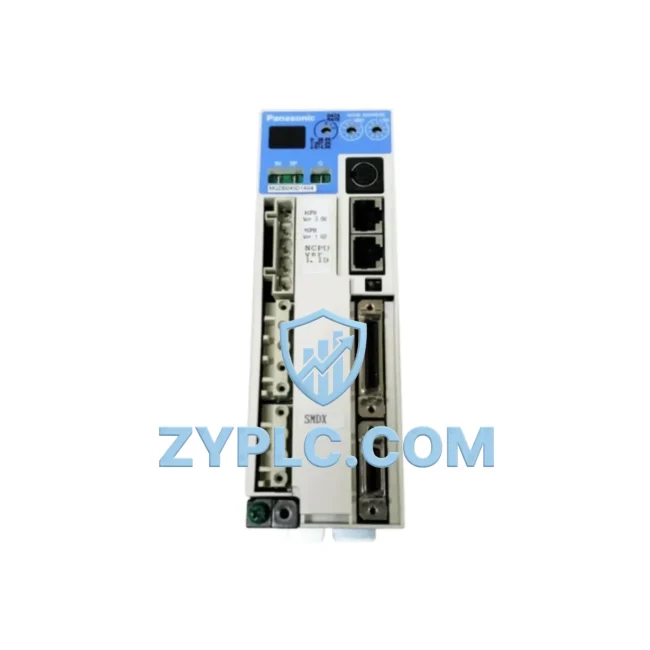

Panasonic MQDB045D1A04 EtherCAT Servo Driver MINAS A6B

Panasonic MQDB045D1A04 EtherCAT Servo Driver: Industrial Data Link for MINAS A6B Smart Factory Systems

The Panasonic MQDB045D1A04 is a high-performance EtherCAT servo driver from the MINAS A6B Series, engineered to serve as a critical node in modern industrial communication architectures. Designed for precision motion control and seamless integration into distributed automation networks, this servo driver bridges the gap between field-level devices and upper-level control systems — enabling real-time data exchange across the entire production chain.

In today’s smart factory environment, servo drives are no longer standalone motion controllers. They are active participants in the industrial data network. The MQDB045D1A04 leverages the EtherCAT (IEC 61158) fieldbus protocol to deliver sub-millisecond cycle times, deterministic communication, and synchronised multi-axis coordination — making it an ideal component for high-speed assembly lines, robotic cells, CNC machining centres, and precision packaging systems.

At ZYPLC, every unit is sourced from verified supply channels, pre-shipment tested, and backed by a 12-month warranty. Global logistics via DHL and FedEx ensure fast, reliable delivery to industrial sites worldwide.

Network Communication Table

Connected Automation Data Flow

The MQDB045D1A04 sits at the heart of a layered industrial communication architecture. At the field level, encoder feedback signals and torque data from the connected servo motor are captured in real time and transmitted upstream via EtherCAT at cycle rates as fast as 125 µs. This data flows directly to the EtherCAT master — typically a high-performance PLC such as the Beckhoff CX2040 Embedded PC or the OMRON NX1P2 Machine Automation Controller — where motion profiles are computed and synchronised across multiple axes.

In multi-axis configurations, the MQDB045D1A04 operates alongside other MINAS A6B series drives — such as the MADBT1505E03 and MDDBT3530E03 — forming a daisy-chained EtherCAT segment that delivers coordinated motion without jitter. The EtherCAT ring topology further supports network redundancy, ensuring that a single cable fault does not interrupt production.

For remote I/O integration, the network segment may include Beckhoff EK1100 EtherCAT Couplers or OMRON GX-series Remote I/O terminals, which aggregate digital and analogue signals from sensors, proximity switches, and safety relays distributed across the machine frame. These I/O nodes share the same EtherCAT backbone as the MQDB045D1A04, eliminating the need for separate fieldbus wiring and reducing cabinet complexity.

At the supervisory level, an OPC-UA gateway or EtherCAT-to-PROFINET bridge — such as the HMS Anybus X-gateway — translates EtherCAT process data into formats readable by SCADA platforms including Wonderware System Platform, Ignition by Inductive Automation, or Siemens WinCC. HMI panels such as the Panasonic GT series or Weintek cMT series can display live servo status, alarm codes, and torque curves directly from the drive’s process data object (PDO) mapping — giving operators full visibility without additional instrumentation.

Edge computing nodes — such as an industrial edge gateway running Node-RED or Azure IoT Edge — can subscribe to the OPC-UA data stream and push servo performance metrics to cloud dashboards, enabling predictive maintenance analytics based on current ripple, temperature trends, and cumulative load cycles reported by the MQDB045D1A04.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices operate in communication silos, unable to share process data with controllers, SCADA systems, or enterprise MES platforms. The Panasonic MQDB045D1A04 directly addresses this problem through its native EtherCAT implementation.

Protocol Fragmentation: Many legacy servo systems rely on analogue ±10V command signals or older fieldbuses such as MECHATROLINK-II or CANopen. Replacing or supplementing these with the MQDB045D1A04’s EtherCAT interface unifies the motion control layer under a single, high-speed digital protocol — eliminating analogue noise, reducing wiring, and enabling deterministic synchronisation across all axes.

Production Line Transparency: With EtherCAT PDO mapping, the MQDB045D1A04 continuously broadcasts position, velocity, torque, alarm status, and thermal data to the master controller. This data can be logged by the SCADA system to build a real-time digital twin of the servo axis — enabling engineers to detect mechanical wear, bearing degradation, or load imbalance before a fault occurs.

Remote Monitoring and Diagnostics: Through the OPC-UA gateway layer, maintenance engineers can access live drive parameters from any location — reviewing fault histories, adjusting gain settings, or initiating test cycles without being physically present on the factory floor. This capability is especially valuable for multi-site manufacturers managing geographically distributed production lines.

System Scalability: The EtherCAT protocol supports up to 65,535 nodes on a single network segment, meaning the MQDB045D1A04 can be integrated into both compact single-axis systems and large-scale multi-axis gantry or robotic installations without architectural changes. Adding new axes simply requires connecting additional MINAS A6B drives to the existing EtherCAT ring — no additional network infrastructure is required.

Inventory and Supply Assurance: ZYPLC maintains ready stock of the MQDB045D1A04 and related MINAS A6B components, supporting urgent replacement orders and planned procurement alike. All units undergo pre-shipment functional testing and are shipped with full documentation. A 12-month warranty covers all units against manufacturing defects, providing procurement teams with the confidence to specify this drive in both new installations and retrofit projects.

Industrial Connectivity FAQ

Q1: What is the communication latency of the MQDB045D1A04 on an EtherCAT network?
The MQDB045D1A04 supports EtherCAT cycle times as low as 125 µs, with hardware synchronisation (DC mode) ensuring jitter below 1 µs across all networked axes. This deterministic performance is essential for high-speed coordinated motion applications such as flying shear, electronic cam, and multi-axis interpolation.

Q2: Is the MQDB045D1A04 compatible with non-Panasonic EtherCAT masters?
Yes. The MQDB045D1A04 implements the EtherCAT standard (IEC 61158 Type 12) and is compatible with any conformant EtherCAT master, including Beckhoff TwinCAT 3, OMRON Sysmac Studio, Mitsubishi iQ-R Motion CPU, and CODESYS-based controllers. The drive’s ESI (EtherCAT Slave Information) file is available for import into all major engineering environments.

Q3: How does the MQDB045D1A04 support network stability in harsh industrial environments?
The drive’s EtherCAT interface supports ring topology with cable redundancy, allowing the network to automatically reroute communication if a physical cable is damaged. The RJ45 ports are rated for industrial use, and the drive’s internal watchdog timer ensures safe torque-off (STO) activation if network communication is lost — preventing uncontrolled motion during network faults.

Q4: What warranty and testing does ZYPLC provide for the MQDB045D1A04?
Every MQDB045D1A04 unit supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects. Prior to dispatch, each unit undergoes a functional verification test to confirm communication, encoder feedback, and drive enable circuits are operating correctly. Units are shipped in original or equivalent protective packaging via DHL or FedEx with full tracking. For volume orders or urgent requirements, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
