Parker C3S150V4F10I20T40M11 Industrial Network Interface for Compax3 Systems

Parker C3S150V4F10I20T40M11: Industrial Data Link for Compax3 Smart Factory Systems

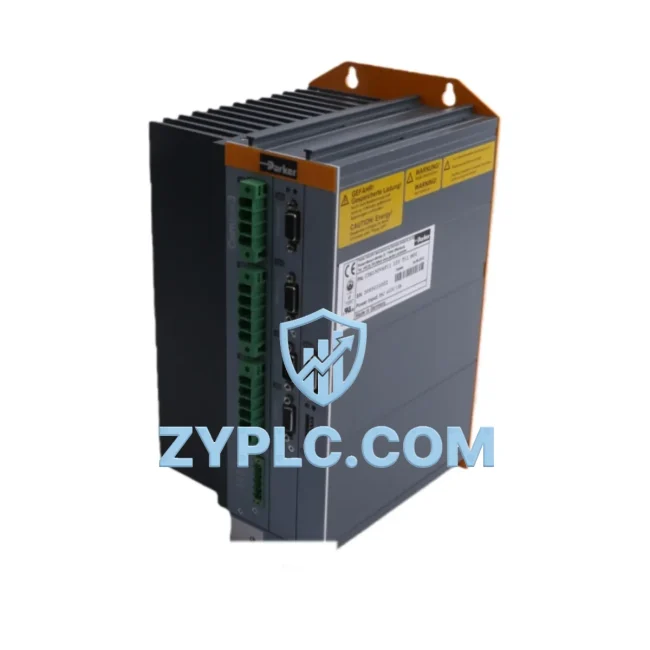

The Parker Hannifin C3S150V4F10I20T40M11 is a high-performance AC servo drive from the Compax3 Series, engineered to serve as a precision industrial network interface within modern smart factory architectures. Rated at 150% peak current with a 400V AC supply (V4), this drive integrates seamlessly into multi-axis motion control networks, bridging field-level devices and upper-level control systems through robust digital communication protocols. Whether deployed in a standalone servo axis or as part of a coordinated multi-drive topology, the C3S150V4F10I20T40M11 delivers deterministic real-time data exchange, low-latency command response, and continuous diagnostic transparency across the entire automation data chain.

The I20 interface option equips this Compax3 drive with EtherCAT fieldbus connectivity — one of the fastest and most deterministic industrial Ethernet protocols available today. EtherCAT enables cycle times as low as 125 µs, making the C3S150V4F10I20T40M11 ideal for high-speed synchronization tasks where position, velocity, and torque data must flow without interruption between the servo drive, the PLC controller, and the motion coordinator. This interface option also supports CANopen over EtherCAT (CoE), allowing the drive to participate in standardized device profiles and simplifying integration with existing CANopen-based control architectures.

The F10 feedback module supports resolver and incremental encoder inputs, providing closed-loop position feedback with high resolution. Combined with the T40 technology function — which enables advanced motion profiles including electronic gearing, cam tables, and point-to-point positioning — the C3S150V4F10I20T40M11 operates as an intelligent motion node capable of executing complex motion sequences autonomously, reducing the processing burden on the master PLC and improving overall system throughput.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the C3S150V4F10I20T40M11 sits at the heart of the motion control data chain. Signal acquisition begins at the field level, where Parker MPP Series servo motors equipped with resolver feedback transmit real-time position and velocity data back to the drive via the F10 feedback interface. The drive processes this closed-loop data at the servo control level and simultaneously forwards motion status, fault codes, and diagnostic parameters upstream through the EtherCAT network.

At the controller level, a Beckhoff CX2040 Industrial PC running TwinCAT 3 acts as the EtherCAT master, coordinating multiple Compax3 axes — including companion drives such as the C3S075V4F10I20T40M11 (75A variant) and the C3S300V4F10I20T40M11 (300A variant) — within a synchronized multi-axis motion network. The EtherCAT topology allows daisy-chaining of drive nodes with sub-millisecond synchronization, enabling coordinated motion profiles across gantry systems, rotary indexers, and multi-axis robotic cells.

For remote I/O expansion, Parker ACR Series remote I/O modules and Beckhoff EK1100 EtherCAT couplers with EL-series I/O terminals extend digital and analog signal collection from sensors, proximity switches, and pressure transducers distributed across the production line. These I/O nodes feed process data into the same EtherCAT ring, ensuring that all field signals — from servo position feedback to discrete sensor states — are available to the master controller in a single unified data frame.

At the SCADA and HMI layer, Wonderware InTouch or Ignition SCADA platforms connect to the EtherCAT master via OPC-UA or Modbus TCP gateways, visualizing drive status, axis position, torque load, and alarm states in real time. Operators at Parker XT HMI terminals or remote workstations can monitor the C3S150V4F10I20T40M11’s operating parameters, acknowledge faults, and initiate controlled shutdowns without interrupting adjacent axes. For facilities running Siemens S7-1500 PLCs alongside Parker drives, a Hilscher NT 100-RE-DP EtherCAT-to-PROFIBUS gateway bridges the two protocol domains, allowing the Compax3 drive to participate in PROFIBUS-based control architectures without hardware replacement.

Variable frequency drives such as the Parker AC30 Series VFD handling auxiliary pump and fan loads communicate via Modbus RTU on a parallel network segment, with data aggregated at an edge gateway running IIoT middleware. This edge layer normalizes data from EtherCAT, Modbus, and CANopen segments into a unified MQTT data stream, enabling cloud-based analytics, predictive maintenance alerts, and remote diagnostics accessible from any connected device.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Older production lines may combine legacy CANopen servo drives, PROFIBUS DP PLCs, and Modbus RTU sensors — each operating in isolation, unable to share data with modern EtherCAT-based controllers. The result is data silos: critical process information trapped within individual device networks, invisible to SCADA systems and unavailable for real-time decision-making.

The C3S150V4F10I20T40M11 addresses this challenge directly through its EtherCAT interface (I20), which supports CoE (CANopen over EtherCAT) device profiles. This means that existing CANopen motion control logic — including standardized DS402 drive profiles — can be migrated to the EtherCAT network without rewriting application code, preserving engineering investment while gaining the speed and determinism of industrial Ethernet. For sites still running PROFIBUS or Modbus segments, protocol gateway devices bridge the communication gap, allowing the Compax3 drive to exchange data with legacy controllers and enabling a phased migration toward a fully unified network architecture.

Remote monitoring and diagnostics are equally critical for minimizing unplanned downtime. The C3S150V4F10I20T40M11 continuously broadcasts drive health parameters — including DC bus voltage, motor temperature, current load, and fault history — through the EtherCAT network to the SCADA layer. Maintenance engineers can access this data remotely via VPN-connected HMI terminals, identifying developing faults before they cause production stoppages. Alarm thresholds configured in the drive’s T40 technology function trigger automatic notifications to the SCADA system, enabling predictive maintenance workflows that reduce mean time to repair (MTTR) and extend equipment service life.

For production line transparency, the drive’s real-time position and velocity data feeds directly into MES (Manufacturing Execution System) platforms, enabling cycle time analysis, OEE (Overall Equipment Effectiveness) calculation, and traceability reporting at the individual axis level. This data visibility transforms isolated servo axes into fully integrated nodes within the smart factory data ecosystem, supporting continuous improvement initiatives and regulatory compliance requirements.

Industrial Connectivity FAQ

Q1: What is the communication latency of the C3S150V4F10I20T40M11 on an EtherCAT network?
The I20 EtherCAT interface supports cycle times as low as 125 µs, providing deterministic, jitter-free communication suitable for high-speed multi-axis synchronization. In typical industrial deployments with 8–16 drive nodes, effective cycle times of 250–500 µs are standard, well within the requirements of precision motion control and robotic applications.

Q2: Is the C3S150V4F10I20T40M11 compatible with Siemens and Beckhoff PLC systems?
Yes. The EtherCAT (I20) interface is compatible with any EtherCAT master controller, including Beckhoff TwinCAT 3, Siemens SIMOTION with EtherCAT option, and other IEC 61800-7 compliant motion controllers. The drive supports CoE (CANopen over EtherCAT) DS402 drive profiles, ensuring standardized integration without custom protocol mapping.

Q3: How does the Compax3 C3S150V4F10I20T40M11 support network stability in demanding industrial environments?
The drive’s EtherCAT interface implements hardware-level error detection and automatic frame recovery, maintaining network integrity even in electrically noisy environments. The Compax3 series is designed to IEC 61800-3 EMC standards, with shielded cable recommendations and integrated EMC filters ensuring stable communication in environments with high-frequency switching noise from adjacent VFDs and power electronics.

Q4: What does the 12-month warranty cover, and has the unit been tested before shipment?
Every C3S150V4F10I20T40M11 unit supplied by ZYPLC undergoes pre-shipment functional testing, including power-on verification, communication interface check, and parameter integrity validation. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for commissioning, parameter configuration, and network integration queries.
