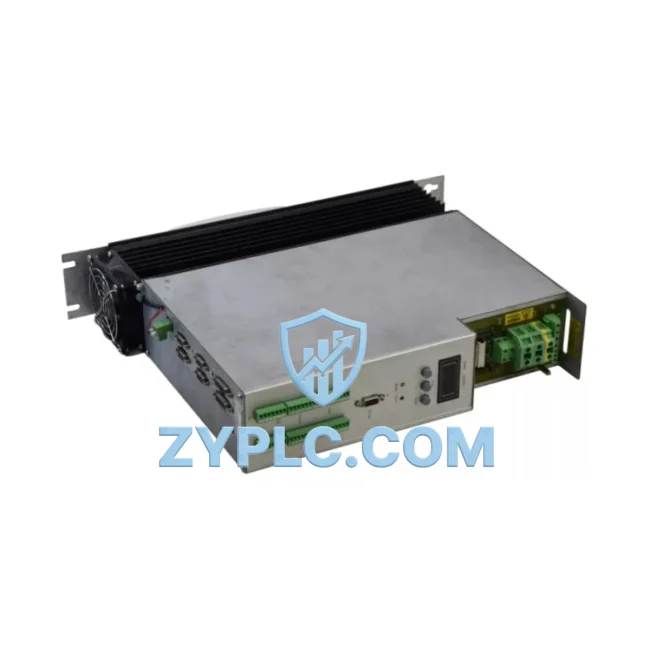

Parker CPX1500M/E7/F8 Compax3 Industrial Network Interface for Servo Systems

Parker CPX1500M/E7/F8 Compax3 Industrial Network Interface for Servo Systems: Bridging Industrial Data Links in Smart Factory Environments

The Parker CPX1500M/E7/F8 is a high-performance Compax3 servo drive and motion controller engineered for demanding industrial automation environments. Combining multi-protocol communication capability with precision motion control, this unit serves as a critical industrial network interface node — connecting field-level servo actuators to upper-level PLC controllers, SCADA platforms, and HMI systems through a unified, real-time data link. Whether deployed in a standalone axis application or integrated into a multi-axis coordinated motion network, the CPX1500M/E7/F8 delivers the connectivity, reliability, and diagnostic transparency that modern smart factories require.

With its dual communication option modules — the E7 (EtherNet/IP) and F8 (PROFIBUS DP) — this Compax3 variant bridges two of the most widely adopted industrial fieldbus and Ethernet protocols in a single drive platform. This makes it uniquely suited for hybrid automation architectures where legacy PROFIBUS networks coexist with modern EtherNet/IP infrastructure, eliminating the need for external protocol gateways and reducing system complexity at the cabinet level.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the Parker CPX1500M/E7/F8 sits at the intersection of the field device layer and the control network layer. Signal acquisition begins at the servo motor encoder — absolute or incremental — feeding real-time position, velocity, and torque data back into the Compax3 drive’s internal motion processor. From there, the E7 EtherNet/IP module transmits cyclic process data upstream to a Rockwell ControlLogix PLC or Allen-Bradley CompactLogix controller, enabling closed-loop motion coordination across multiple axes without perceptible latency.

On the PROFIBUS side, the F8 module connects the CPX1500M/E7/F8 into existing Siemens S7-300 or S7-400 PLC networks, where it appears as a standard DP slave device. This allows Siemens TIA Portal or STEP 7 environments to read drive status, fault codes, and motion parameters directly — without requiring additional communication hardware. In facilities running mixed automation platforms, this dual-protocol capability is invaluable for maintaining a single, coherent data backbone.

Moving up the network hierarchy, the EtherNet/IP connection integrates seamlessly with Wonderware InTouch or Ignition SCADA platforms via standard EtherNet/IP Class 1 implicit messaging. Operators at the HMI level — whether using a Parker HMI panel or a third-party Weintek or Proface HMI — can monitor axis position, drive temperature, current draw, and fault history in real time. Alarm thresholds configured in the SCADA system trigger immediate feedback loops, enabling predictive maintenance workflows before mechanical failures occur.

For distributed I/O architectures, the CPX1500M/E7/F8 can coexist on the same EtherNet/IP network segment as Parker Remote I/O modules or Rockwell POINT I/O blocks, sharing the same managed industrial Ethernet switch infrastructure. In high-density motion applications — such as multi-axis gantry systems, winding machines, or packaging lines — the drive communicates with a Parker ACR9000 multi-axis motion controller to execute synchronized cam profiles and electronic gearing routines, with all motion data logged to the SCADA historian for traceability and OEE analysis.

At the edge layer, an industrial edge gateway running IIoT middleware can subscribe to EtherNet/IP data tags from the CPX1500M/E7/F8, forwarding key performance indicators — cycle time, energy consumption, fault frequency — to cloud-based analytics dashboards. This closes the loop between the physical servo axis and the digital twin environment, enabling remote diagnostics and firmware update management without requiring on-site intervention.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is protocol fragmentation — the coexistence of legacy fieldbus systems (PROFIBUS, DeviceNet, Modbus RTU) alongside modern Industrial Ethernet networks (EtherNet/IP, PROFINET, EtherCAT). The Parker CPX1500M/E7/F8 directly addresses this by embedding both EtherNet/IP and PROFIBUS DP communication in a single servo drive, eliminating the need for standalone protocol converters or gateway modules that introduce additional failure points and communication latency.

Data silos — where servo drive data is trapped at the field level and never reaches the SCADA or MES layer — are a common source of production inefficiency. With the CPX1500M/E7/F8’s native EtherNet/IP connectivity, all motion parameters, fault codes, and energy metrics are continuously available to upper-level systems. This enables production line transparency: supervisors can view real-time axis performance data on their SCADA dashboards, compare it against historical baselines, and identify degradation trends before they cause unplanned downtime.

For remote monitoring and diagnostics, the drive’s PROFIBUS DP interface supports acyclic read/write services (DP V1), allowing maintenance engineers to remotely access and modify drive parameters — tuning gains, speed limits, fault response behavior — without physical access to the control cabinet. Combined with the EtherNet/IP connection to a remote access router or VPN gateway, this creates a complete remote diagnostic chain from the servo axis to the engineering workstation, regardless of geographic location.

System scalability is another key advantage. As production lines expand, additional Compax3 axes can be added to the same EtherNet/IP or PROFIBUS network segment with minimal reconfiguration. The CPX1500M/E7/F8’s standardized communication profile means new axes are recognized by the PLC and SCADA system automatically, reducing commissioning time and engineering overhead. All units shipped by ZYPLC undergo pre-shipment functional testing, verifying communication link establishment, motion profile execution, and fault response behavior before dispatch — backed by a 12-month warranty on every unit.

Industrial Connectivity FAQ

Q1: What is the communication latency of the CPX1500M/E7/F8 on an EtherNet/IP network?
The E7 EtherNet/IP module supports Class 1 implicit messaging with configurable RPI (Requested Packet Interval) as low as 1 ms, making it suitable for real-time motion coordination applications. Actual latency depends on network topology, switch configuration, and the number of nodes on the segment. For deterministic performance, a managed industrial Ethernet switch with QoS prioritization is recommended.

Q2: Is the CPX1500M/E7/F8 compatible with Siemens TIA Portal and Rockwell Studio 5000 simultaneously?
Yes. The dual-protocol architecture allows the F8 PROFIBUS DP module to interface with Siemens TIA Portal / STEP 7 environments while the E7 EtherNet/IP module communicates with Rockwell Studio 5000 / RSLogix 5000. Both communication channels operate independently, enabling the drive to serve as a bridge node in mixed-platform automation architectures.

Q3: How does the drive handle network interruptions or communication faults?
The CPX1500M/E7/F8 features configurable network fault response behavior. Upon loss of EtherNet/IP or PROFIBUS communication, the drive can be configured to hold last command, decelerate to stop, or trigger an immediate controlled shutdown — depending on the safety requirements of the application. Fault events are logged internally and transmitted to the SCADA system upon communication restoration for post-event analysis.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this unit?
Every Parker CPX1500M/E7/F8 supplied by ZYPLC is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, communication link establishment on both EtherNet/IP and PROFIBUS interfaces, and motion profile execution. Units that do not pass all test criteria are quarantined and not shipped. In-stock units are available for dispatch within 3–5 business days, with expedited shipping options available upon request.
