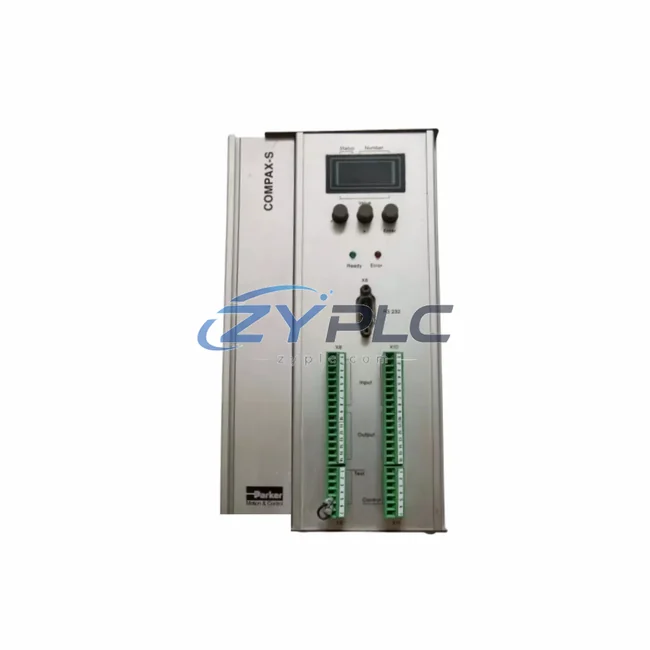

Parker CPX2500S/F3 Servo Drive for Compax3 Systems

Parker CPX2500S/F3 Industrial Network Interface for Compax3 Systems: Bridging Field Devices and Smart Factory Data Links

The Parker CPX2500S/F3 is a high-performance servo drive from the Compax3 series, engineered to serve as a critical industrial network node in modern smart factory environments. With native support for EtherCAT and CANopen communication protocols, the CPX2500S/F3 enables seamless, deterministic data exchange between field-level actuators, PLC controllers, remote I/O modules, HMI panels, SCADA platforms, and upper-level MES systems. Whether deployed in precision motion control, multi-axis synchronization, or distributed automation architectures, this drive delivers the connectivity, reliability, and real-time responsiveness that Industry 4.0 demands.

At its core, the CPX2500S/F3 functions as more than a servo amplifier — it is an intelligent gateway that translates encoder feedback, torque commands, velocity references, and fault diagnostics into structured network data packets. This capability eliminates the data isolation that plagues legacy motion systems and enables full production line transparency from a single SCADA dashboard.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the CPX2500S/F3 sits at the intersection of the motion layer and the network layer. The data flow begins at the sensor and encoder level: a linear encoder or rotary resolver feeds real-time position data into the drive’s feedback loop. Simultaneously, a Parker ACR9000 multi-axis controller — or a Beckhoff CX2040 EtherCAT master — issues cyclic synchronous position (CSP) commands over the EtherCAT backbone, achieving sub-millisecond synchronization across multiple axes.

Upstream, a Siemens S7-1500 PLC or a Mitsubishi iQ-R series controller may interface with the EtherCAT network via a protocol gateway, forwarding production recipes and speed profiles from the SCADA layer. The CPX2500S/F3 processes these commands and drives a Parker MPP or MPJ series servo motor with precision torque and velocity control. Actual position, following error, and drive temperature are continuously reported back through the EtherCAT process data object (PDO) mapping, making every motion parameter visible in real time on a Wonderware InTouch or Ignition SCADA screen.

For installations where CANopen is the primary fieldbus — common in packaging machinery and textile equipment — the CPX2500S/F3 operates as a CANopen slave node alongside Parker Compax3H hydraulic servo drives and other CiA 402-compliant devices on the same network segment. A Wago 750-337 or Beckhoff EL6751 CANopen master module manages node addressing and PDO scheduling, while a remote I/O coupler such as the Phoenix Contact Axioline F collects digital and analog signals from proximity sensors, pressure transducers, and safety relays, feeding them into the same data pipeline.

At the edge, an industrial PC running Parker’s C3 ServoManager software or a Moxa UC-8112 edge gateway aggregates drive diagnostics, alarm histories, and energy consumption data, forwarding structured payloads to cloud-based MES or ERP platforms via MQTT or OPC-UA. This end-to-end data chain — from encoder pulse to enterprise dashboard — is what makes the CPX2500S/F3 a genuine smart factory connectivity asset, not merely a motion controller.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is protocol fragmentation: a plant floor may simultaneously run EtherCAT, CANopen, PROFIBUS, and Modbus RTU across different machine generations, creating data silos that prevent unified monitoring and coordinated control. The Parker CPX2500S/F3 addresses this directly through its dual-protocol architecture and open parameter interface.

By supporting both EtherCAT and CANopen natively, the CPX2500S/F3 can be integrated into mixed-protocol environments without requiring a dedicated protocol converter for every drive. When a legacy Modbus RTU segment must be bridged, a Moxa MB3480 or HMS Anybus X-gateway can be inserted upstream, translating Modbus register maps into CANopen SDO/PDO structures that the CPX2500S/F3 understands natively. This approach preserves existing infrastructure investment while enabling new data visibility.

Remote monitoring and diagnostics are equally critical for reducing unplanned downtime. The CPX2500S/F3 exposes a comprehensive set of diagnostic objects — including DC bus voltage, motor current RMS, drive temperature, and fault code history — accessible via the EtherCAT CoE (CANopen over EtherCAT) object dictionary. A SCADA system polling these objects can trigger predictive maintenance alerts before a thermal overload or encoder fault causes a production stop. Combined with remote parameter upload/download via C3 ServoManager over RS232 or USB, commissioning engineers can reconfigure drive parameters from a control room without physical access to the cabinet.

For production line transparency, the CPX2500S/F3 supports electronic cam profiling and flying shear synchronization, enabling the SCADA layer to visualize real-time axis positions on a virtual machine model. This capability is particularly valuable in printing, converting, and assembly lines where multi-axis coordination must be verified continuously. System expansion is straightforward: additional CPX2500S/F3 units or Parker Compax3S compact drives can be added to the EtherCAT ring topology without reconfiguring the master controller, supporting scalable automation architectures from 2-axis to 32-axis systems.

Industrial Connectivity FAQ

Q1: What is the EtherCAT cycle time of the CPX2500S/F3, and is it suitable for high-speed synchronization applications?
The CPX2500S/F3 supports EtherCAT cycle times as low as 250 µs in synchronous mode, making it suitable for high-speed pick-and-place, flying shear, and electronic gearing applications where deterministic motion synchronization is critical. Distributed Clock (DC) synchronization ensures all axes on the network are aligned to within ±1 µs.

Q2: Can the CPX2500S/F3 operate on a CANopen network alongside other CiA 402 drives?
Yes. The CPX2500S/F3 fully implements the CiA 402 drive profile and can coexist on a CANopen network with other compliant devices, including Parker Compax3H and third-party servo drives. Node ID and baud rate are configurable via DIP switch or software, and PDO mapping can be customized to match the master controller’s scan cycle.

Q3: How is network stability ensured in environments with high electromagnetic interference (EMI)?
The CPX2500S/F3 is designed for industrial EMC environments and complies with EN 61800-3 Category C2/C3 emission standards. Shielded cables, proper grounding of the EtherCAT RJ45 connectors, and ferrite cores on CANopen Sub-D9 cables are recommended. The drive’s internal watchdog timer automatically triggers a safe torque-off (STO) response if network communication is lost for more than the configured timeout period, preventing uncontrolled motion.

Q4: What does the warranty terms confirmed during quotation cover, and is pre-shipment testing performed?
Every CPX2500S/F3 unit supplied by ZYPLC undergoes functional testing prior to shipment, including power-on verification, communication protocol handshake, and basic motion parameter validation. The warranty terms confirmed during quotation covers manufacturing defects and component failures under normal operating conditions. Expedited replacement and technical support are available throughout the warranty period. Availability is confirmed via RFQ for shipment arranged after confirmation with global shipping.
