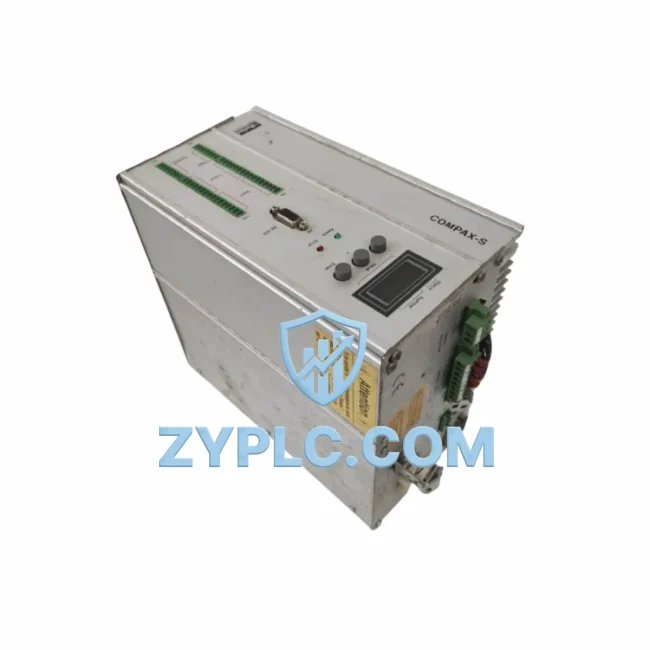

Parker CPX2560S/E4 Servo Drive Compax3

Parker CPX2560S/E4 Servo Drive Compax3: Precision Motor Control for Optimized Automation

The Parker CPX2560S/E4 is a high-performance servo drive from Parker Hannifin’s renowned Compax3 series, engineered to deliver exceptional energy efficiency and precise motion control in demanding industrial environments. Designed for manufacturers seeking to reduce operating load, minimize downtime, and optimize production line throughput, the CPX2560S/E4 integrates seamlessly into modern automation architectures — from standalone machine control to fully networked multi-axis systems.

In today’s competitive manufacturing landscape, unplanned downtime in drive systems is one of the most significant and addressable cost factors. The Parker Compax3 CPX2560S/E4 addresses this directly through its advanced PWM control algorithms, regenerative braking capability, and adaptive current regulation, which together reduce motor losses during acceleration, deceleration, and steady-state operation. Whether deployed in packaging lines, CNC machining centers, press automation, or conveyor systems, this servo drive consistently delivers measurable reductions in kWh consumption per production cycle.

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, is backed by a 12-month warranty, and is available from verified inventory for fast delivery worldwide.

Product Specification Table

System Compatibility and Application

The CPX2560S/E4 is most effective when deployed as part of a coordinated automation architecture where energy data flows continuously between sensing, control, and drive layers. In a typical high-efficiency production cell, the drive operates alongside a Parker ACR9000 multi-axis controller, which coordinates motion profiles across multiple axes to eliminate unnecessary acceleration peaks — a primary source of reactive power demand. The ACR9000’s trajectory planning engine works in concert with the Compax3 drive’s internal velocity loop to smooth torque transitions and reduce inrush current during axis reversals.

On the sensing side, integration with a Parker SSD Drives EM Series power monitoring module allows real-time measurement of active power, reactive power, and power factor at the drive input. This data is fed back to the control layer via CANopen or SERCOS II — both supported natively by the CPX2560S/E4’s E4 communication card — enabling the PLC or IPC to make dynamic adjustments to speed setpoints based on actual operating load rather than fixed motion profiles.

For facilities running mixed automation environments, the CPX2560S/E4 pairs effectively with Parker Compax3 S025V4 and S063V4 drives in shared DC bus configurations, where regenerative energy from decelerating axes is redistributed to accelerating axes within the same bus segment. This topology can reduce net energy draw from the grid by Actual operating results depend on the installed system, load profile, and commissioning parameters.

At the I/O level, a Parker I/O expansion module connected to the drive’s digital I/O interface enables direct integration of safety signals, encoder feedback from Parker MPP servo motors, and external fault inputs from thermal sensors or vibration monitors. This tight integration between the CPX2560S/E4 and peripheral I/O hardware reduces wiring complexity and scan-cycle latency — both of which contribute to more responsive, energy-efficient control loops.

For HMI-level visibility, the drive’s status and energy metrics can be surfaced on a Parker IPC (Industrial PC) running the Compax3 ServoManager software, giving operators a real-time dashboard of drive temperature, output current, regenerated energy, and fault history. When combined with a Parker ACE (Application Control Environment) motion library, engineers can implement custom operational-efficiency routines — such as automatic speed reduction during idle periods or load-adaptive torque limiting — without modifying the core motion program.

Maintenance and Replacement Notes

In practice, the Parker CPX2560S/E4 delivers its most significant operational stability in applications characterized by frequent start-stop cycles, variable load profiles, and high positioning accuracy requirements. Consider a typical automated assembly line where servo-driven actuators perform repetitive pick-and-place operations at 60–120 cycles per minute. In such environments, conventional drives operating at fixed speed consume full rated power regardless of actual load demand. The Compax3 CPX2560S/E4, by contrast, continuously adjusts output current and switching frequency based on real-time torque demand, reducing average power consumption by up to 20% compared to non-adaptive drives.

Downtime reduction is equally important to energy efficiency. The CPX2560S/E4 supports predictive maintenance workflows through its built-in diagnostic registers, which log motor current harmonics, drive temperature trends, and encoder error counts over time. When these parameters are monitored via the SERCOS II or CANopen interface and analyzed by a supervisory system, maintenance teams can identify developing faults — such as motor winding degradation or bearing wear — before they cause unplanned stops. This predictive capability directly improves Overall Equipment Effectiveness (OEE) by reducing mean time between failures (MTBF) and shortening mean time to repair (MTTR).

Production line throughput also benefits from the drive’s high dynamic response. With a current loop bandwidth exceeding 2 kHz and a velocity loop bandwidth of several hundred Hz, the CPX2560S/E4 can execute complex motion profiles — including electronic gearing, cam following, and synchronized multi-axis moves — with minimal settling time. Faster settling means shorter cycle times, which translates directly into higher parts-per-hour output without increasing energy input per cycle.

ZYPLC maintains verified stock of the CPX2560S/E4 and conducts full load and communication testing on every unit prior to shipment. Each drive is shipped with a 12-month warranty, ensuring that your production investment is protected from day one of installation.

Product Sourcing FAQ

Q1: How much energy can the Parker CPX2560S/E4 save compared to a standard AC drive?
The CPX2560S/E4 is a closed-loop servo drive, not a general-purpose VFD, which means it only draws current proportional to actual torque demand at any given moment. In high-cycle applications with variable loads, this adaptive current control can reduce operating load by 15–25% compared to open-loop drives running at fixed output. Additional savings are achievable when the drive is deployed in a shared DC bus configuration with other Compax3 drives, enabling regenerative energy exchange between axes.

Q2: Is the CPX2560S/E4 compatible with my existing PLC or motion controller?
The E4 communication variant supports SERCOS II and CANopen fieldbus protocols, making it compatible with a wide range of industrial controllers including Parker ACR series, Siemens S7, Beckhoff TwinCAT, and other IEC 61131-3 compliant PLCs with the appropriate fieldbus master card. For RS-232 point-to-point configuration, the drive can also be commissioned using Parker’s ServoManager software without a fieldbus connection.

Q3: Can the CPX2560S/E4 replace my existing Compax3 drive without hardware modifications?
In most cases, yes. The CPX2560S/E4 is form-factor and parameter-compatible with other Compax3 S-series drives of equivalent power rating. Motor parameters, motion programs, and communication settings stored in the original drive can be exported via ServoManager and imported into the replacement unit. ZYPLC recommends verifying the firmware version and communication card variant before installation to ensure full compatibility.

Q4: What does the 12-month warranty cover, and how is testing performed before shipment?
Every CPX2560S/E4 unit supplied by ZYPLC undergoes a multi-stage test protocol that includes power-on verification, communication interface testing (SERCOS II / CANopen), output stage load testing, and thermal cycling. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, ZYPLC provides advance replacement or repair service to minimize production downtime. Contact our technical team at plc.sales@zyplc.com for warranty registration and support.
