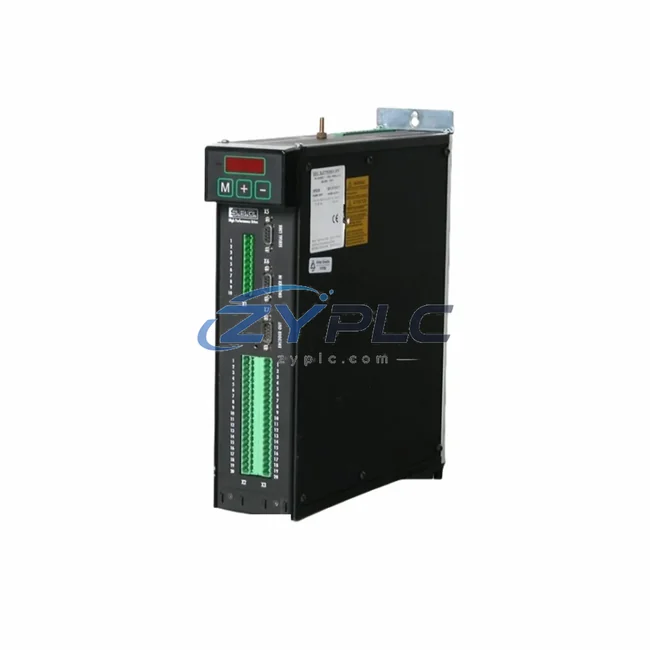

Parker HPD5N Servo Drive for Compumotor Automation

Parker HPD5N Servo Drive for Compumotor Automation

The Parker HPD5N is a high-performance digital servo drive from Parker Hannifin’s Compumotor series, engineered to deliver precise motor control while minimizing operating load across demanding industrial automation environments. Designed for manufacturers seeking to reduce operational costs, improve equipment utilization, and optimize production line throughput, the HPD5N integrates seamlessly into multi-axis motion control architectures where every watt and every millisecond of cycle time matters.

In modern industrial facilities, unplanned downtime is rarely the result of a single component failure — it accumulates through inefficient drive tuning, oversized motor selection, poor feedback resolution, and uncoordinated control loops. The HPD5N addresses these root causes directly by providing high-bandwidth current control, adaptive gain scheduling, and smooth velocity profiling that together reduce reactive power draw and eliminate unnecessary motor heating. The result is a measurable reduction in operating load per production cycle, without sacrificing dynamic response or positioning accuracy.

Product Specification Table

System Compatibility and Application

The HPD5N does not operate in isolation — its energy efficiency is best realized when it functions as part of a coordinated automation architecture. In a typical Compumotor-based motion system, the HPD5N servo drive receives trajectory commands from a Parker ACR9000 multi-axis motion controller, which manages interpolated path execution and synchronizes multiple drive axes to eliminate idle dwell time between motion segments. Reducing inter-segment delays directly translates to lower average power consumption per production cycle.

On the motor side, the HPD5N is optimized for use with Parker SM Series brushless servo motors, which feature high torque-to-inertia ratios that allow faster acceleration and deceleration ramps without overshooting — a key factor in reducing unplanned downtimed on correction moves. When paired with Parker NeoMetric Series motors in high-speed spindle or conveyor applications, the drive’s adaptive current loop tuning ensures that motor magnetizing current is kept at the minimum level required for the actual load, rather than a fixed worst-case value.

For applications requiring coordinated multi-axis condition monitoring, the HPD5N integrates naturally with Parker’s 6K Series motion controllers, which provide real-time axis status feedback including following error, velocity deviation, and drive fault conditions. This data feeds into maintenance-focused scheduling logic that can park idle axes at reduced holding current, cutting standby power draw by a significant margin during low-demand production windows.

At the I/O level, the HPD5N’s digital and analog interfaces connect to Parker I/O expansion modules and third-party SCADA systems via RS-485 Modbus, enabling plant-level energy dashboards to track per-drive power consumption trends. When anomalies are detected — such as a gradual increase in RMS current draw indicating mechanical wear on a ballscrew or bearing — maintenance teams can schedule predictive interventions before a fault-induced emergency stop disrupts the entire production line.

In multi-drive cabinet installations, the HPD5N is commonly deployed alongside Parker GV6 and Gemini series drives on shared DC bus configurations, where regenerative braking energy from decelerating axes is redistributed to accelerating axes rather than dissipated as heat. This shared-bus topology can reduce total cabinet power draw by 15–25% in high-cycle applications such as pick-and-place, press feeding, and winding machinery.

Maintenance and Replacement Notes

Consider a packaging line running 24 hours per day, five days per week. Without optimized servo control, motors run at fixed speed profiles regardless of actual load demand, and drives operate at conservative current limits that generate excess heat and increase cooling system operating load. Replacing legacy analog drives with the Parker HPD5N introduces closed-loop velocity and torque control that continuously adjusts output to match real-time load requirements.

In practice, this means that during light-load phases of the packaging cycle — such as label application or product inspection — the HPD5N automatically reduces motor current to the minimum required for position holding, rather than maintaining full rated torque. Over a 24-hour production window, these micro-optimizations accumulate into measurable reductions in kWh consumption per thousand units produced.

Downtime reduction is equally significant. The HPD5N’s onboard fault diagnostics — including overcurrent detection, encoder signal loss, and drive temperature monitoring — provide early warning signals that allow operators to address developing issues during scheduled maintenance windows rather than during peak production. Each avoided unplanned stop eliminates not only the direct cost of lost production but also the energy overhead of restarting cold equipment and re-running quality verification cycles.

For facilities operating under ISO 50001 maintenance planning frameworks or pursuing carbon reduction targets, the HPD5N’s compatibility with plant-level condition monitoring systems provides the granular per-axis data needed to identify the highest-impact optimization opportunities. Combined with Parker’s motion controller ecosystem, the drive enables a data-driven approach to maintenance planning that goes beyond simple motor efficiency ratings to address the full system-level energy profile of each production asset.

All HPD5N units supplied by ZYPLC are sourced from verified supply channels, undergo outgoing functional and load testing prior to shipment, and are covered by a warranty terms confirmed during quotation. Inventory is maintained to support rapid deployment for both planned upgrades and emergency replacement scenarios.

Product Sourcing FAQ

Q1: How does the Parker HPD5N reduce operating load compared to conventional servo drives?
The HPD5N uses high-frequency PWM switching with adaptive current loop control to minimize reactive power and motor heating. Unlike fixed-gain analog drives, it continuously adjusts output current to match actual load demand, reducing unplanned downtime during partial-load and idle phases of the production cycle.

Q2: Is the HPD5N compatible with my existing Parker motion controller and motor?
The HPD5N is designed for use within the Parker Compumotor ecosystem and is compatible with Parker ACR Series and 6K Series motion controllers, as well as SM Series, NeoMetric Series, and J Series brushless servo motors. For non-Parker motor or controller combinations, contact ZYPLC for compatibility assessment prior to ordering.

Q3: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Each HPD5N unit undergoes outgoing functional testing including power-on verification, encoder feedback signal check, and load response validation before dispatch. The warranty terms confirmed during quotation covers manufacturing defects and component failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental exposure beyond rated specifications.

Q4: Can the HPD5N be used as a direct replacement for a failed drive in an existing Compumotor system?
Yes. The HPD5N is designed as a form-fit-function replacement within the Compumotor HPD series. Parameter configuration can be restored from a backup file stored on the Parker ACR or 6K controller, minimizing re-commissioning time. ZYPLC maintains stock to support urgent replacement requirements with fast dispatch.
