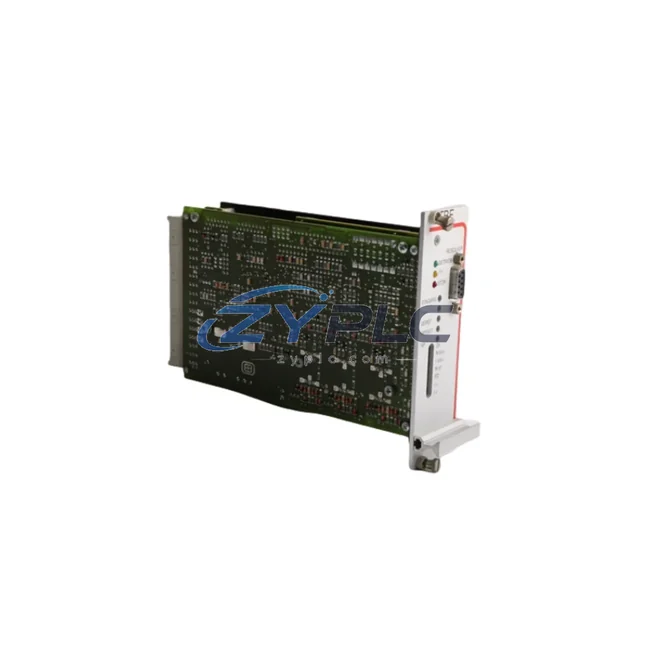

Parker TBF60/5R Servo Controller for TBF Automation

Parker TBF60/5R Servo Controller for TBF Automation

The Parker TBF60/5R is a high-performance servo controller from Parker Hannifin’s TBF Series, engineered to deliver precision motor control with measurable energy efficiency gains across demanding industrial production environments. Designed for integration into closed-loop drive architectures, the TBF60/5R enables factories to reduce unnecessary power draw, tighten motion control tolerances, and extend the operational lifespan of connected drive systems — all while maintaining the reliability expected from Parker Hannifin’s industrial automation portfolio.

In modern manufacturing, unplanned downtime is rarely the result of a single component failure — it accumulates through inefficient motor control, poorly tuned drive parameters, and the absence of real-time feedback between the controller and the load. The TBF60/5R addresses these inefficiencies at the source by providing accurate torque regulation, responsive velocity loop control, and seamless integration with Parker’s broader motion and drive ecosystem. Whether deployed in a standalone axis or as part of a multi-axis coordinated system, this servo controller contributes directly to lower energy consumption per production cycle.

Every unit supplied by ZYPLC is sourced from verified industrial channels, subjected to functional load testing prior to shipment, and covered by a warranty terms confirmed during quotation. Stock is maintained for prompt dispatch, supporting both urgent replacement requirements and planned system upgrades.

Product Specification Table

System Compatibility and Application

The TBF60/5R does not operate in isolation — its energy efficiency contribution is amplified when deployed within a well-structured automation architecture. In a typical Parker-based motion system, the TBF60/5R interfaces with a Parker 6K8 multi-axis motion controller, which coordinates trajectory planning and distributes command signals across multiple servo axes. This coordination eliminates redundant motion cycles and reduces the total energy consumed per machine operation.

On the drive side, the TBF60/5R pairs naturally with Parker Compax3 servo drives in hybrid configurations where different axis power ratings are required. For applications demanding higher bus voltage or regenerative energy recovery, the Parker GV6 servo drive provides a complementary solution within the same control network. The shared communication infrastructure — typically RS-232, SERCOS, or analog ±10V — ensures that the TBF60/5R can be integrated without requiring a separate communication gateway.

Power quality at the input stage is monitored using Parker SSD power conditioning modules, which protect the servo controller from voltage transients that would otherwise cause unnecessary fault trips and energy-wasting restart cycles. On the I/O side, Parker ACR9000 motion controllers provide the high-speed digital I/O required for synchronizing the TBF60/5R with upstream sensors, vision systems, and safety interlocks — ensuring that the servo axis only draws power when the production condition is confirmed ready.

For facilities running mixed-vendor environments, the TBF60/5R’s analog command interface allows integration alongside Siemens SINAMICS S120 drive modules or Mitsubishi MR-J4 servo amplifiers on shared machine frames, with the Parker controller managing the TBF axis independently. Condition monitoring at the panel level is typically handled by Schneider Electric PowerLogic PM5000 series power meters, which provide per-axis consumption data that maintenance teams use to benchmark the TBF60/5R’s efficiency contribution over time.

HMI visualization of drive status, fault history, and energy consumption trends is commonly implemented via Parker IPC (Industrial PC) platforms or third-party SCADA systems connected through OPC-UA, giving operators real-time visibility into whether the servo system is performing within its optimal efficiency band.

Maintenance and Replacement Notes

In high-cycle packaging lines, the TBF60/5R’s fast current loop response — typically under 100 microseconds — allows the servo axis to accelerate and decelerate with precision, avoiding the energy-wasting overshoot and correction cycles that characterize poorly tuned drives. A packaging machine running 120 cycles per minute accumulates significant unplanned downtime if each cycle includes even a 50ms correction window; the TBF60/5R’s tight velocity regulation eliminates this loss at the source.

In assembly automation, where servo axes are frequently held at position between operations, the TBF60/5R’s torque hold mode maintains position with minimal current draw — reducing the thermal load on the motor and the energy consumed during non-productive dwell periods. This directly improves the energy efficiency ratio (useful work output per kWh consumed) of the production cell.

For maintenance teams, the TBF60/5R’s fault logging and diagnostic output provide early indicators of bearing wear, load imbalance, or coupling degradation — conditions that, if left unaddressed, cause the drive to compensate with increased current draw, raising energy consumption before a visible mechanical failure occurs. Predictive maintenance based on these drive-level signals allows planned interventions that avoid both unplanned downtime and the energy penalty of a degraded mechanical system.

ZYPLC maintains ready stock of the TBF60/5R to support both emergency replacement and scheduled maintenance programs. All units are functionally tested under load conditions prior to shipment, with test records available on request. The warranty terms confirmed during quotation covers component-level failures under normal operating conditions, providing procurement teams with the confidence to specify the TBF60/5R as a direct replacement in existing Parker TBF Series installations.

Product Sourcing FAQ

Q1: How does the TBF60/5R contribute to measurable operational stability on a production line?
The TBF60/5R reduces energy consumption through precise closed-loop current control, which minimizes resistive losses in the motor windings. Its fast velocity loop response eliminates correction cycles that waste energy without contributing to useful work. In high-cycle applications, these savings compound across thousands of daily cycles, resulting in measurable reductions in per-unit energy cost.

Q2: Is the TBF60/5R compatible with existing Parker 6K and ACR Series motion controllers?
Yes. The TBF60/5R is designed for use within Parker Hannifin’s TBF Series drive ecosystem and is compatible with Parker 6K Series and ACR Series motion controllers via RS-232 and analog command interfaces. For SERCOS-based systems, interface configuration may be required. Contact ZYPLC technical support to confirm compatibility with your specific controller firmware version.

Q3: What is the recommended replacement procedure when substituting a failed TBF60/5R in an existing installation?
The TBF60/5R is a direct form-fit-function replacement for units of the same model within the TBF Series. Before installation, verify the DC bus voltage, continuous current rating, and feedback interface type match the original specification. ZYPLC recommends retaining the original drive parameters (gain settings, current limits, velocity limits) from the commissioning documentation and re-entering them during replacement to restore the original efficiency profile without re-tuning.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All TBF60/5R units supplied by ZYPLC are tested under functional load conditions prior to dispatch, verifying current output, velocity loop response, and fault detection circuits. The warranty terms confirmed during quotation covers component-level failures arising under normal operating conditions and excludes damage caused by incorrect installation, overvoltage events, or mechanical impact. Warranty claims are processed directly through ZYPLC, with replacement or repair turnaround communicated at the time of claim.
