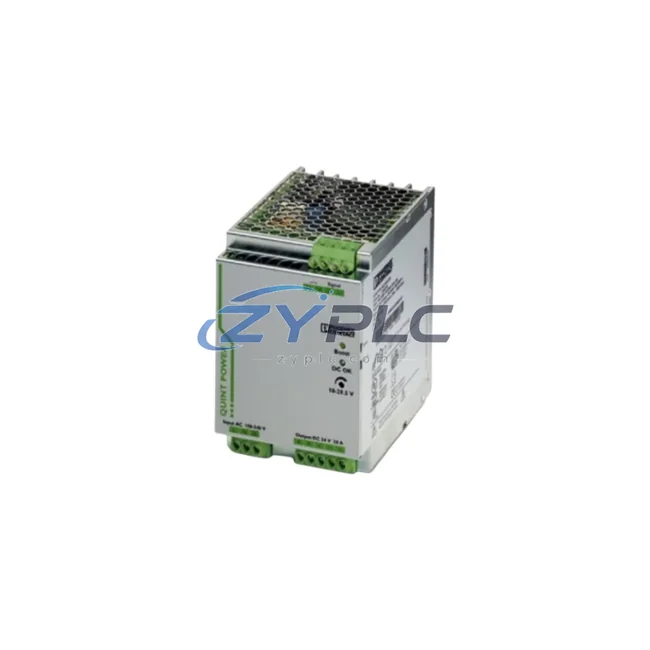

The Phoenix Contact 2866776 (QUINT-PS/1AC/24DC/20) is a high-efficiency single-phase AC-to-DC power supply module engineered for demanding industrial automation environments. Delivering a stable 24 VDC output at 20 A, this QUINT-series unit is purpose-built to reduce unnecessary energy consumption at the power conversion stage — one of the most overlooked sources of unplanned downtime on modern production lines. With its active power factor correction and dynamic boost capability, the 2866776 ensures that downstream devices — from Siemens S7-1200 PLCs and Mitsubishi MELSEC I/O modules to Yaskawa GA700 variable frequency drives — receive clean, regulated power without the voltage sag that causes nuisance trips and unplanned downtime.

In high-cycle manufacturing environments, power quality directly affects line throughput. When a servo drive such as the Panasonic MINAS A6 or a Delta MS300 VFD receives unstable DC bus voltage, it compensates by drawing higher peak currents, increasing thermal stress and shortening component life. The QUINT-PS/1AC/24DC/20 eliminates this risk by maintaining output regulation within ±1%, ensuring that every actuator, sensor, and communication node on the line operates within its optimal power envelope.

Product Specification Table

System Compatibility and Application

The QUINT-PS/1AC/24DC/20 sits at the foundation of an industrial control architecture. In a typical panel layout, it feeds 24 VDC to a Phoenix Contact QUINT-DIODE/40AC/2X20/1X40 redundancy module, which in turn distributes power to redundant control paths — eliminating single-point failures without adding a second full-size PSU. This topology is particularly effective in lines running Beckhoff EK1100 EtherCAT couplers and distributed Phoenix Contact Axioline F I/O slices, where dozens of digital and analog I/O points must remain powered even during partial panel faults.

On the drive side, the 2866776 provides the stable 24 VDC logic supply required by Siemens SINAMICS G120 control units (CU240E-2) and ABB ACS880 drive control boards, both of which are sensitive to supply ripple. When the logic supply is clean, the drive’s internal energy recovery algorithms — such as kinetic buffering and DC bus sharing — operate as designed, recovering braking energy from deceleration cycles and redistributing it to accelerating axes rather than dissipating it as heat.

For condition monitoring, the 2866776 integrates naturally with Phoenix Contact EEM-MA370 energy measurement modules, which log real-time power consumption per panel section. Combined with a Siemens SIMATIC ET 200SP power measurement module or a Schneider Electric PowerLogic PM5000 meter at the MCC level, plant engineers gain a complete picture of energy flow from the utility meter down to individual machine axes — enabling data-driven decisions about load scheduling, peak demand reduction, and predictive maintenance intervals.

Communication integrity is maintained through Phoenix Contact FL SWITCH 2008 managed Ethernet switches, which provide PROFINET and EtherNet/IP connectivity between the PSU’s signaling outputs (DC OK relay, SFB static boost indicator) and the plant SCADA system. This allows the maintenance planning platform to log PSU load history, detect abnormal current draw patterns, and trigger maintenance alerts before a failure occurs.

Maintenance and Replacement Notes

Consider a mid-size automotive body welding line running three-shift operations. Each welding cell draws peak currents during electrode contact, creating voltage transients that propagate through shared DC bus segments. A standard power supply would respond by throttling output, causing momentary logic drops in the cell’s safety PLC and triggering a fault reset cycle that costs 45–90 seconds of production time per event. The QUINT-PS/1AC/24DC/20’s Static Function Boost (SFB) delivers up to 40 A for 5 seconds — enough to ride through the transient without a logic drop, keeping the line running and the OEE metric intact.

In food and beverage packaging lines, where conveyor speeds are continuously adjusted by Delta MS300 or Yaskawa V1000 variable frequency drives, the PSU’s high power factor (>0.99) reduces reactive power demand on the facility transformer. Over a 6,000-hour annual operating period, this translates to measurable reductions in kVAR charges on the utility bill — savings that compound across multiple lines in a large facility.

Predictive maintenance is further supported by the 2866776’s built-in diagnostics. The DC OK signal and the SFB active indicator are wired to spare digital inputs on the line’s Omron NX1P2 safety controller, feeding status data into the plant’s condition monitoring dashboard. When the PSU begins operating in boost mode more frequently than baseline — a sign of increasing downstream load or degrading capacitors in connected drives — the system flags the anomaly for inspection during the next scheduled maintenance window, avoiding unplanned downtime.

All units supplied by ZYPLC undergo full load testing at rated current before shipment, with output voltage, ripple, and efficiency verified against factory specifications. Each unit is covered by a warranty terms confirmed during quotation from the date of shipment, with availability confirmed by RFQ availability ensuring short lead times for both planned procurement and emergency replacement scenarios.

Product Sourcing FAQ

Q1: How much energy can the QUINT-PS/1AC/24DC/20 save compared to a standard industrial PSU?
The 2866776 achieves up to 95.3% conversion efficiency with active power factor correction above 0.99, compared to 85–88% efficiency and PF of 0.6–0.7 typical of non-PFC units. In continuous 24/7 operation at 20 A load, this difference can reduce annual energy consumption by 8–12% at the power supply stage alone, with additional savings from reduced reactive power (kVAR) charges.

Q2: Is the 2866776 compatible with my existing Siemens or Mitsubishi PLC panel?
Yes. The QUINT-PS/1AC/24DC/20 outputs standard 24 VDC and is compatible with all major PLC platforms including Siemens S7-300/400/1200/1500, Mitsubishi MELSEC iQ-R/iQ-F, Omron NX/NJ, Rockwell ControlLogix/CompactLogix, and Beckhoff CX series. Its DIN rail form factor and standard terminal connections ensure drop-in compatibility with existing panel layouts.

Q3: Can this unit replace a failed PSU in an emergency, and what is the lead time?
ZYPLC maintains RFQ-confirmed sourcing of the Phoenix Contact 2866776 for shipment arranged after confirmation. Emergency orders placed before the daily cut-off are dispatched same day. The unit is a direct replacement for earlier QUINT-PS generations and requires no firmware configuration — connect input, connect output, power on.

Q4: What does the warranty terms confirmed during quotation cover, and how is the unit tested before shipment?
Every 2866776 unit is tested at full rated load (20 A continuous) with output voltage, ripple voltage, efficiency, and SFB boost function verified before packaging. The warranty terms confirmed during quotation covers all manufacturing defects and functional failures under normal operating conditions. ZYPLC provides direct technical support and replacement coordination without requiring return to the original manufacturer first.
