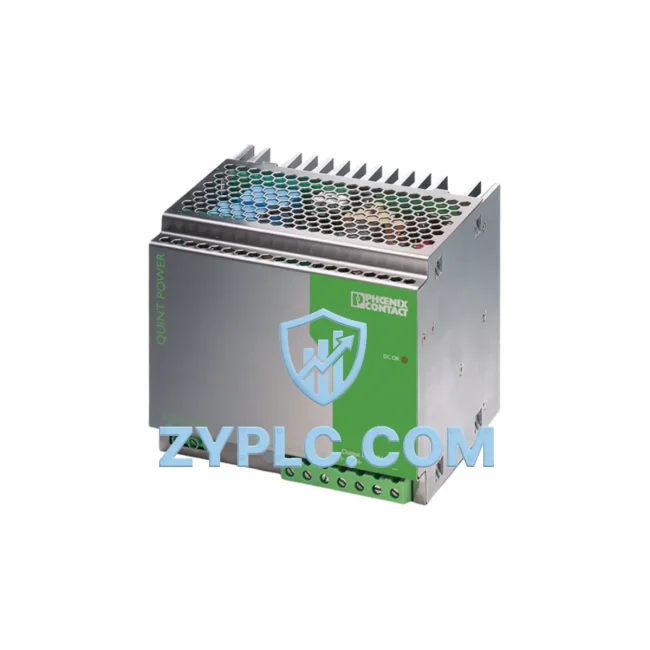

Phoenix Contact QUINT-PS-100-240AC/24DC/20 Industrial Network Power Supply for QUINT Systems

Phoenix Contact QUINT-PS-100-240AC/24DC/20: Industrial Network Power Supply for Connected Automation Systems

The Phoenix Contact QUINT-PS-100-240AC/24DC/20 is a high-performance industrial power supply engineered to deliver reliable 24VDC output at 20A, providing the critical power backbone for networked automation architectures in smart factory environments. In any industrial network — whether built on PROFINET, EtherNet/IP, Modbus TCP, or proprietary fieldbus protocols — every connected device depends on stable, uninterrupted power to maintain real-time data flow between field-level sensors, PLC controllers, remote I/O modules, HMI panels, SCADA gateways, and enterprise-level systems. The QUINT-PS-100-240AC/24DC/20 is purpose-built to serve as the power foundation that keeps these data links alive, ensuring that signal acquisition, protocol conversion, network transmission, real-time monitoring, alarm feedback, and remote diagnostics operate without interruption across the entire industrial communication chain.

With a wide-range AC input of 100–240VAC, this power supply adapts seamlessly to global voltage standards, making it ideal for multinational manufacturing facilities and export-oriented automation projects. The QUINT series from Phoenix Contact is recognized worldwide for its SFB (Selective Fuse Breaking) technology, which delivers up to 6x nominal current for selective tripping of standard miniature circuit breakers — a critical feature when powering distributed network nodes that must remain isolated during fault conditions without disrupting the broader communication infrastructure.

Network Communication and Power Specification Table

Connected Automation Data Flow: Powering the Industrial Network Chain

In a modern smart factory, the QUINT-PS-100-240AC/24DC/20 sits at the heart of the power distribution architecture, energizing every layer of the industrial communication stack. Consider a typical production line where field-level sensors and actuators feed analog and digital signals into remote I/O modules such as the Phoenix Contact AXL F BK ETH Axioline bus coupler, which aggregates field data and transmits it over EtherNet/IP or PROFINET to the central PLC controller. The PLC — for example, a Phoenix Contact AXC F 2152 from the PLCnext Control family — processes this data in real time, executing logic for motion control, process regulation, and safety interlocks.

From the PLC, processed data flows upstream through managed industrial Ethernet switches such as the Phoenix Contact FL SWITCH 2008, which provides eight Fast Ethernet ports with VLAN support and QoS prioritization to ensure that time-critical PROFINET IRT or EtherNet/IP CIP Sync packets reach their destinations without jitter or packet loss. These switches, powered by the QUINT-PS-100-240AC/24DC/20, form the network backbone that connects multiple control cabinets across the factory floor.

At the supervisory level, HMI touch panels and SCADA workstations poll the PLC network for live process variables, alarm states, and production KPIs. When operators need to visualize real-time trends or acknowledge fault conditions, the data path from sensor to screen depends entirely on the stability of the 24VDC bus. A momentary power dip can cause network switches to reset, PLCs to enter fault mode, and SCADA connections to drop — resulting in data gaps, false alarms, and unplanned downtime. The QUINT power supply’s dynamic boost capability prevents exactly this scenario by maintaining output voltage stability even during inrush events when multiple QUINT-PS-100-240AC/24DC/10 or QUINT-PS-100-240AC/24DC/5 units share the same input bus.

For variable frequency drive (VFD) control panels, the 24VDC output powers the control electronics of drives that regulate motor speed and torque on conveyor systems, pumps, and fans. The QUINT-PS-100-240AC/24DC/40 variant may be selected for higher-current drive cabinets, while the 20A model handles standard control cabinet loads including the drive’s communication interface cards that connect to the PROFINET or Modbus TCP network. Meanwhile, the QUINT-PS/1AC/24DC/20 single-phase variant serves as an alternative in installations where the input power configuration differs, and the next-generation QUINT4-PS/1AC/24DC/10 and QUINT4-PS/1AC/24DC/5 models bring enhanced efficiency and communication-ready features with integrated NFC diagnostics for predictive maintenance.

Edge gateways and IoT data collectors also draw their operating power from the 24VDC rail. These devices aggregate data from multiple protocol domains — converting PROFIBUS DP to MQTT, or Modbus RTU to OPC UA — and push it to cloud-based analytics platforms or on-premise historians. Without a stable power source like the QUINT-PS-100-240AC/24DC/20, these protocol conversion gateways cannot maintain persistent TCP connections, leading to data loss and broken telemetry streams that undermine the entire smart factory data strategy.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial environments is data isolation — the condition where individual machines, production cells, or entire plant sections operate as information silos with no unified data exchange. This problem typically arises from a combination of incompatible communication protocols (e.g., legacy PROFIBUS DP alongside modern PROFINET IO), inconsistent power quality that causes intermittent network failures, and a lack of standardized infrastructure for connecting disparate systems.

The QUINT-PS-100-240AC/24DC/20 addresses the power quality dimension of this challenge directly. By providing a clean, regulated 24VDC output with less than 50mV residual ripple, it ensures that sensitive communication interfaces — Ethernet PHY chips, RS-485 transceivers, fiber optic media converters — operate within their specified voltage tolerances. This is particularly important when retrofitting older installations where the existing power infrastructure may introduce noise, sags, or transients that corrupt serial communication frames or cause Ethernet CRC errors.

For production line transparency, the QUINT power supply enables continuous operation of network monitoring tools and diagnostic servers that map the entire communication topology. Plant managers can track device availability, network utilization, and error rates across every PROFINET device, every Modbus slave, and every OPC UA node — but only if the underlying power infrastructure keeps every network participant online 24/7. The preventive function monitoring built into the QUINT series provides early warning of output overload conditions via a floating relay contact, allowing the SCADA system to generate maintenance alerts before a power supply failure cascades into a network-wide outage.

System expansion is another area where reliable power supply selection matters. As factories add new production cells, robotic work stations, or automated guided vehicle (AGV) charging stations, each new network segment requires its own dedicated 24VDC power source. The QUINT-PS-100-240AC/24DC/20 supports parallel operation for redundancy (N+1 configurations) and can be combined with the QUINT-PS/1AC/24DC/40 for high-density cabinets, ensuring that network expansion never outpaces power capacity.

Industrial Connectivity FAQ

Q1: Can the QUINT-PS-100-240AC/24DC/20 maintain stable power during network inrush events?
A: Yes. The QUINT series features SFB (Selective Fuse Breaking) technology that delivers up to 6 times the nominal current (120A peak) for 12ms, ensuring that downstream circuit breakers trip selectively without affecting other network branches. This prevents cascading power failures that could disrupt PROFINET, EtherNet/IP, or Modbus TCP communication across the factory network.

Q2: Is this power supply compatible with different industrial network protocols?
A: The QUINT-PS-100-240AC/24DC/20 provides universal 24VDC power compatible with all major industrial network devices including PROFINET controllers, EtherNet/IP adapters, Modbus TCP gateways, PROFIBUS DP masters/slaves, DeviceNet nodes, and CANopen devices. It powers the communication interfaces of PLCs, remote I/O, HMI panels, managed switches, and SCADA servers regardless of protocol.

Q3: How does ZYPLC ensure product quality before shipping?
A: Every QUINT-PS-100-240AC/24DC/20 unit undergoes comprehensive pre-shipment testing at ZYPLC, including output voltage verification, load regulation testing, ripple measurement, and visual inspection. We verify that each unit meets Phoenix Contact factory specifications before dispatch, ensuring that your industrial network receives a fully functional power supply ready for immediate installation.

Q4: What warranty and support does ZYPLC provide?
A: ZYPLC provides a full 12-month warranty on every Phoenix Contact QUINT-PS-100-240AC/24DC/20 power supply. Our technical support team is available to assist with selection, installation guidance, and troubleshooting for industrial power and network integration projects. Contact us at +86 19859288691 or plc.sales@zyplc.com for immediate assistance.
