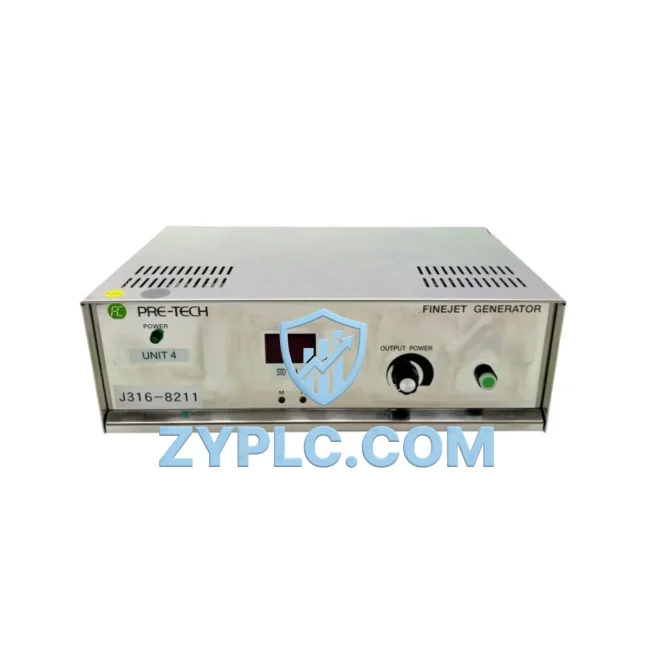

The PRE-TECH PT-005J20 (SKU: PT-005J20 0100-02805 RLD10 X3 DI S-9LSS-0153) is a high-voltage generator module engineered specifically for the FineJet series of Continuous Inkjet (CIJ) printing systems. In modern industrial production environments where uptime, throughput, and energy efficiency are tightly linked, the PT-005J20 plays a critical role in stabilizing the high-voltage charging field that governs ink droplet deflection accuracy. By maintaining a consistent and precisely regulated voltage output, this module directly reduces the energy overhead associated with repeated print-head recalibration, ink waste from misdirected droplets, and unplanned maintenance shutdowns.
Industrial facilities running multi-shift CIJ coding operations — whether on food and beverage lines, pharmaceutical packaging, or electronics component marking — depend on the generator module to sustain continuous, low-variance operation. The PT-005J20 is designed to minimize reactive power draw during idle and standby phases, contributing to measurable reductions in per-unit operating load across high-volume production runs.
Product Specification Table
| Parameter |
Specification |
| SKU |
PT-005J20 0100-02805 RLD10 X3 DI S-9LSS-0153 |
| Brand / Series |
PRE-TECH / FineJet |
| Module Type |
High-Voltage Generator Module |
| Function |
Ink droplet charging field regulation for CIJ print heads |
| Operating Efficiency |
Optimized for low standby power draw; stable HV output reduces recalibration cycles |
| Compatible Systems |
PRE-TECH FineJet CIJ series inkjet printers |
| Application Environment |
Food & beverage, pharmaceutical, electronics, industrial packaging lines |
| Energy Saving Value |
Reduces idle energy loss; minimizes ink waste from voltage instability |
| Origin |
Germany (DE) |
| Warranty |
warranty terms confirmed during quotation |
| Availability |
RFQ Available — shipment arranged after confirmation |
System Compatibility and Application
The PT-005J20 does not operate in isolation. Its efficiency contribution is best understood within the broader context of the FineJet automation architecture, where multiple subsystems interact to govern print quality, operating load, and system uptime.
At the control layer, the FineJet system relies on an integrated PLC control board to coordinate print triggers, conveyor synchronization signals, and fault detection routines. The PT-005J20 receives regulated DC input from the FineJet main power supply board, which conditions incoming line voltage and distributes stable power to the generator, the ink system pump module, and the viscosity control unit. Any fluctuation in the power supply board’s output directly affects the generator’s HV stability — making the quality of upstream power conditioning a key variable in overall energy efficiency.
The FineJet print head assembly depends on the PT-005J20’s output to maintain the electrostatic field that deflects charged ink droplets onto the substrate. When the generator module operates within its rated parameters, droplet placement accuracy is maximized, reducing the frequency of print-head cleaning cycles triggered by the FineJet nozzle cleaning control module. Each cleaning cycle consumes solvent and compressed air — both of which represent direct energy and consumable costs on the production line.
From a data monitoring perspective, the FineJet system’s operator interface panel (HMI) provides real-time feedback on generator status, voltage output readings, and fault codes. Maintenance teams can use this data — alongside readings from the FineJet ink pressure sensor and temperature monitoring module — to identify early signs of generator degradation before they result in unplanned downtime. This predictive maintenance capability is central to reducing the total energy cost of CIJ operations, since unplanned stops and restarts consume disproportionately more energy than steady-state running.
For facilities integrating FineJet printers into broader factory automation networks, the system’s communication interface module (supporting RS-232 or Ethernet protocols depending on configuration) enables the PT-005J20’s operational status to be logged and analyzed by upstream SCADA or MES platforms. This integration supports energy auditing at the machine level, allowing production managers to correlate generator performance data with line throughput and operating load metrics.
The FineJet ink make-up unit and solvent recovery module further contribute to the system’s energy and material efficiency profile. When the PT-005J20 maintains stable HV output, ink viscosity remains within the target range for longer periods, reducing the frequency of automatic make-up additions and the associated pump activation cycles.
Maintenance and Replacement Notes
In high-throughput packaging environments, CIJ printers are expected to run continuously across multiple shifts with minimal intervention. The PT-005J20’s role in this context extends beyond simple component replacement — it is a precision maintenance planning component that directly influences the efficiency of the entire inkjet subsystem.
When a generator module begins to degrade, the most common early symptom is voltage instability, which manifests as inconsistent character formation on the substrate. Production supervisors often respond by increasing print speed margins or reducing line speed to compensate — both of which reduce overall equipment effectiveness (OEE) and increase operating load per unit produced. Replacing a degraded generator with a genuine PRE-TECH PT-005J20 restores the system to its designed operating parameters, allowing the line to return to its optimal throughput rate without the energy penalty of compensatory adjustments.
In pharmaceutical and electronics applications, where coding accuracy is subject to regulatory or quality system requirements, the cost of a generator-related print failure extends beyond unplanned downtime to include product rework, line stoppages, and compliance documentation. The PT-005J20’s consistent HV output eliminates this category of risk, supporting both energy efficiency and quality assurance objectives simultaneously.
From a maintenance cost perspective, the warranty terms confirmed during quotation provided with every PT-005J20 unit from ZYPLC ensures that facilities can plan their spare parts inventory with confidence. Each unit undergoes outgoing shipment testing prior to dispatch, verifying that voltage output, insulation integrity, and connector compatibility meet OEM specifications. This pre-shipment verification process reduces the risk of installation failures that would otherwise result in additional downtime and energy loss during troubleshooting.
For facilities managing large fleets of FineJet printers across multiple production lines, maintaining a RFQ-based spare coverage for PT-005J20 modules is a recognized best practice for minimizing mean time to repair (MTTR). ZYPLC supports this approach through reliable inventory availability and fast dispatch, ensuring that replacement modules reach the production floor before a single-printer fault escalates into a line-wide stoppage.
