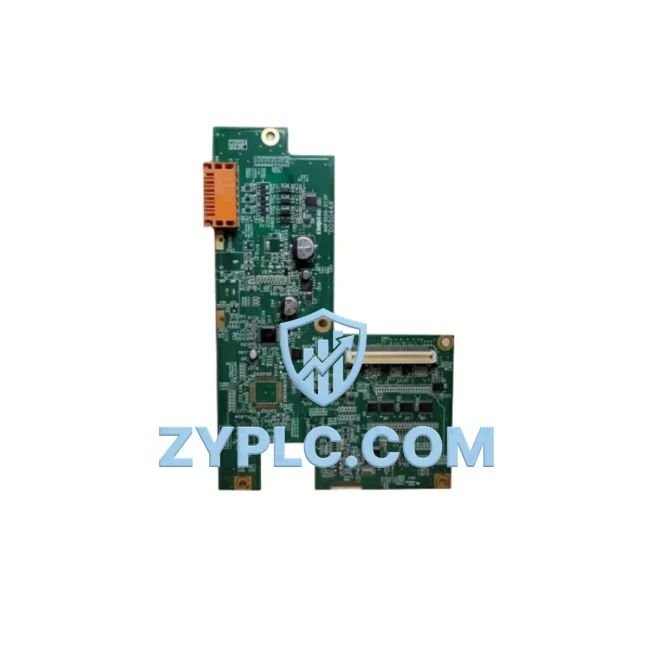

Pro-face AGP3550-DISP D05044A Industrial Network Interface for AGP3550 Systems

Pro-face AGP3550-DISP D05044A: Industrial Data Link and Smart Factory Connectivity

The Pro-face AGP3550-DISP D05044A is a precision-engineered HMI display board designed for the AGP3550 series of industrial human-machine interface panels. In modern smart factory environments, the display board is far more than a visual output component — it is the critical endpoint of a real-time industrial data chain that connects field devices, PLC controllers, remote I/O modules, SCADA systems, and upper-level management platforms into a unified, transparent production network.

As industrial sites evolve toward Industry 4.0 architectures, the integrity of every node in the communication chain becomes essential. The AGP3550-DISP D05044A serves as the visual and interactive gateway through which operators monitor live process data, acknowledge alarms, execute control commands, and validate system status — all in real time. Its role within the AGP3550 platform ensures seamless compatibility with Pro-face’s established communication stack, supporting stable data exchange across multi-protocol industrial networks.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the AGP3550-DISP D05044A operates at the center of a layered industrial communication architecture. At the field level, sensors and actuators — including temperature transmitters, pressure transducers, and proximity switches — feed analog and digital signals into remote I/O modules such as the Pro-face PS-3711A remote HMI station or third-party distributed I/O racks connected via Modbus RTU or PROFIBUS DP. These signals are aggregated by PLC controllers such as the Mitsubishi MELSEC Q Series or Siemens S7-1500, which execute ladder logic and function block programs before passing structured process data upstream.

The AGP3550 HMI panel — restored to full operation with the AGP3550-DISP D05044A display board — receives this data via Ethernet/IP or RS-422 serial links, rendering live process values, trend graphs, and alarm states on its display surface. Operators interact directly with the panel to issue setpoint changes, acknowledge fault conditions, and navigate between production screens configured in GP-Pro EX project files. Simultaneously, the HMI forwards aggregated data to SCADA platforms such as Wonderware InTouch, Ignition by Inductive Automation, or Siemens WinCC via OPC-UA or Modbus TCP gateways, enabling plant-wide visibility from the control room.

For multi-line production environments, the AGP3550 panel integrates alongside Pro-face GP4000 Series HMI units and Pro-face LT4000M compact terminals, all managed through a unified GP-Pro EX project architecture. Variable frequency drives such as the Mitsubishi FR-A800 or Yaskawa GA700 report speed, torque, and fault data to the PLC, which the HMI visualizes in real time. Edge gateways — including devices like the Moxa MGate MB3480 — handle protocol conversion between legacy serial devices and modern Ethernet-based SCADA backbones, ensuring that even older field instruments remain visible within the smart factory data fabric.

Power integrity for the entire communication chain is maintained by industrial DIN-rail power supplies such as the Phoenix Contact QUINT series, which provide stable 24VDC to HMI panels, communication modules, and I/O racks. This end-to-end architecture — from sensor signal to SCADA dashboard — depends on every component performing reliably, and the AGP3550-DISP D05044A is the display-layer foundation that makes operator interaction possible.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, HMI panels, and enterprise systems operate in disconnected silos, preventing real-time visibility and coordinated control. The AGP3550-DISP D05044A directly addresses this challenge by restoring the display and touch interface of the AGP3550 HMI, which serves as the primary operator window into the production process.

When an HMI display board fails, the entire visualization layer of a production cell goes dark. Operators lose access to live process values, alarm histories, and control interfaces — effectively creating a data island at the machine level. Replacing the AGP3550-DISP D05044A restores this critical link, re-establishing the flow of real-time data from PLCs and remote I/O to the operator interface and onward to SCADA and MES platforms.

Beyond simple restoration, the AGP3550 platform supports multi-protocol communication, allowing a single HMI panel to simultaneously connect to devices from different manufacturers using different industrial protocols. This eliminates the need for separate protocol converters at each machine, reducing network complexity and improving data consistency across the production line. Remote diagnostic capabilities — accessible via Ethernet-connected SCADA systems — allow maintenance engineers to monitor HMI panel status, review alarm logs, and push project updates without physical access to the machine, dramatically reducing mean time to repair (MTTR) and supporting predictive maintenance strategies.

For facilities undergoing digital transformation, the AGP3550 with a restored display board becomes a scalable node in a broader IIoT architecture. As production lines expand, additional HMI panels, PLC controllers, and communication modules can be integrated into the existing network without redesigning the communication backbone — ensuring that the investment in the AGP3550 platform continues to deliver value as operational requirements evolve.

Industrial Connectivity FAQ

Q1: What communication protocols does the Pro-face AGP3550 support with the AGP3550-DISP D05044A installed?
The AGP3550 HMI platform supports a wide range of industrial protocols including Ethernet/IP, Modbus TCP, Modbus RTU, PROFIBUS DP, CC-Link, DeviceNet, RS-232C, and RS-422/485 serial communication. Protocol drivers are configured through GP-Pro EX software, allowing the panel to connect to PLCs and devices from Siemens, Mitsubishi, Omron, Allen-Bradley, Schneider, and other major manufacturers without additional hardware gateways.

Q2: How is network stability ensured when using the AGP3550 HMI in a multi-device industrial environment?
The AGP3550 platform is designed for continuous industrial operation, with robust Ethernet communication and serial interface hardware that maintains stable connections even in electrically noisy factory environments. The display board replacement restores the panel to factory-specification performance, ensuring that screen refresh rates, tag polling cycles, and alarm response times meet the original design parameters. All units supplied by ZYPLC are tested before shipment to verify communication integrity.

Q3: Can the AGP3550-DISP D05044A be used to expand an existing SCADA or HMI network?
Yes. The AGP3550 HMI panel, once restored with the AGP3550-DISP D05044A display board, can be integrated into existing SCADA networks via Ethernet or serial links. GP-Pro EX project files can be updated to add new data tags, screens, and communication drivers as the network expands, making the AGP3550 a scalable component in growing industrial automation architectures.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the AGP3550-DISP D05044A?
ZYPLC provides a 12-month warranty on the AGP3550-DISP D05044A. Every unit undergoes functional testing before shipment to verify display output, communication interface integrity, and board-level electrical performance. In-stock units are available for fast global dispatch, and our technical team can provide compatibility confirmation and installation guidance prior to purchase.
