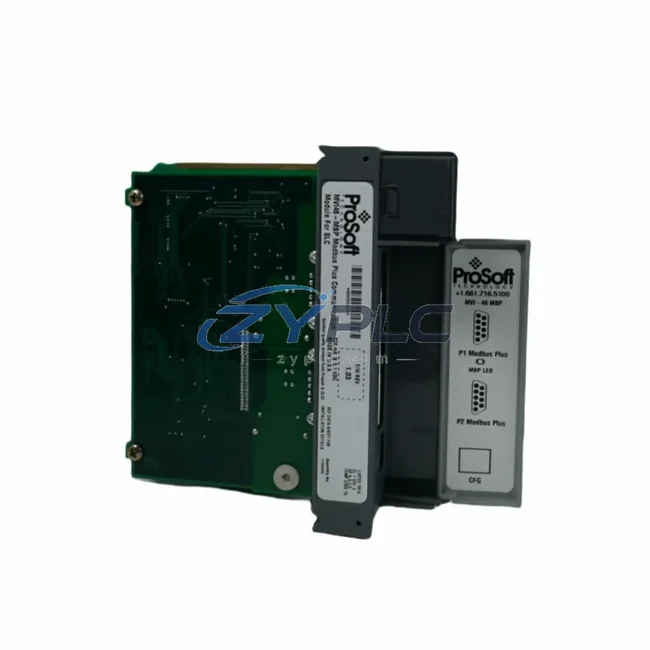

ProSoft MVI46-MBP Modbus Plus Module for SLC 500

ProSoft MVI46-MBP Modbus Plus Module for SLC 500

The ProSoft MVI46-MBP is a Modbus Plus communication module engineered for seamless integration into Allen-Bradley SLC 500 rack-based control architectures. Rather than functioning as a standalone peripheral, the MVI46-MBP is designed as a structural component within a layered automation system — bridging the SLC 500 processor platform with Modbus Plus field networks and enabling coherent, high-integrity data exchange across control, I/O, network, and supervisory layers. With a warranty terms confirmed during quotation and full system integration support, this module is a dependable long-term investment for industrial automation engineers managing complex, multi-vendor environments.

Product Specification Table

System Compatibility Notes

The MVI46-MBP does not operate in isolation. Its value is realized when it is understood as a node within a complete, coordinated control system architecture. In a typical SLC 500-based automation environment, the system begins at the processor level — commonly an Allen-Bradley SLC 5/04 or SLC 5/05 CPU — which handles ladder logic execution, data table management, and inter-module communication via the 1746 series backplane. The MVI46-MBP occupies a standard I/O slot in the 1746-A4, 1746-A7, or 1746-A13 chassis, drawing backplane power and exchanging data blocks with the processor through the standard SLC 500 MSG instruction set.

At the power layer, the 1746-P4 or 1746-P2 power supply provides regulated DC power to the chassis, ensuring stable operation of all installed modules including the MVI46-MBP. Voltage stability at this layer is critical — any fluctuation can affect the integrity of Modbus Plus token-passing cycles and introduce latency into the network communication loop.

On the I/O layer, the MVI46-MBP works alongside discrete and analog I/O modules such as the 1746-IB16 digital input module and 1746-NI4 analog input module, sharing the same backplane data highway. Field signals from sensors, transmitters, and actuators are processed by these I/O modules, while the MVI46-MBP handles the upstream communication of consolidated process data to Modbus Plus-connected devices — including Schneider Electric Quantum PLCs, Modicon M340 controllers, and third-party SCADA systems that rely on Modbus Plus as their primary field bus.

At the network layer, the MVI46-MBP connects to the Modbus Plus segment via a standard DB9 connector, participating in the token-passing ring alongside other MB+ nodes. In multi-drop configurations, the module can coexist with Modbus Plus repeaters and SA85 PC interface cards, enabling engineering workstations to monitor and configure the network without interrupting live production. For systems requiring network redundancy, a secondary MVI46-MBP can be installed in a parallel chassis to provide hot-standby communication capability.

At the human-machine interface layer, operator panels such as the Allen-Bradley PanelView 550 or PanelView Plus 600 can be integrated into the same SLC 500 network via DH+ or DH-485, receiving real-time process data that the MVI46-MBP has aggregated from the Modbus Plus field network. This creates a seamless data flow from field device to operator display without requiring additional protocol converters or middleware.

For execution-layer devices — variable frequency drives, soft starters, and motor control centers — the Modbus Plus network managed by the MVI46-MBP provides deterministic command and feedback cycles, ensuring that drive setpoints, fault codes, and run/stop commands are exchanged reliably within the defined network scan time. This is particularly important in coordinated multi-drive applications where timing consistency directly affects process quality.

Industrial Application Notes

The MVI46-MBP has established a strong application record across a wide range of industrial sectors where Modbus Plus remains an active field bus standard:

Power Generation and Utilities: In power plant auxiliary systems, the MVI46-MBP enables SLC 500 controllers to communicate with legacy Modbus Plus-based protection relays, excitation controllers, and turbine governor systems. Its deterministic communication ensures that trip signals and status data are exchanged within the required response windows, supporting both normal operation and fault isolation procedures.

Oil, Gas, and Petrochemical Processing: In upstream and midstream facilities, the MVI46-MBP integrates SLC 500 rack systems with Modbus Plus-connected flow computers, pressure transmitters, and emergency shutdown (ESD) panels. The module’s ability to handle peer-to-peer messaging without processor intervention reduces CPU loading and improves overall system response time in high-scan-rate applications.

Water and Wastewater Treatment: Municipal water treatment facilities that standardized on Modbus Plus in the 1990s and 2000s continue to rely on the MVI46-MBP to maintain communication between SLC 500 controllers and remote pump stations, chemical dosing systems, and SCADA head-end servers. The module’s long-term availability and warranty terms confirmed during quotation make it a preferred choice for lifecycle extension projects where full system replacement is not economically justified.

Mining and Mineral Processing: In conveyor control, crusher management, and flotation circuit automation, the MVI46-MBP provides the communication backbone between SLC 500 rack controllers and Modbus Plus-networked drive systems. Its robust industrial design tolerates the vibration, dust, and temperature variation common in mining environments.

Packaging and Discrete Manufacturing: On high-speed packaging lines where multiple SLC 500 controllers manage different machine sections, the MVI46-MBP enables inter-controller data sharing via Modbus Plus, synchronizing production rates, fault states, and recipe parameters across the line without requiring a dedicated communication processor.

Product Compatibility FAQ

Q1: Is the MVI46-MBP compatible with all SLC 500 processor models, and are there any slot or chassis restrictions?
The MVI46-MBP is compatible with SLC 5/03, 5/04, and 5/05 processors operating in any standard 1746 series chassis (1746-A4, A7, A10, A13). It occupies a single I/O slot and communicates with the processor via the standard SLC 500 backplane MSG instruction. There are no slot position restrictions, though it is recommended to place the module adjacent to the processor slot to minimize backplane propagation delay in high-frequency polling applications. The module is not compatible with SLC 5/01 or 5/02 processors due to their limited MSG instruction support.

Q2: How does the MVI46-MBP maintain communication integrity in a Modbus Plus network with multiple nodes, and what happens during a node failure?
Modbus Plus uses a deterministic token-passing protocol, meaning each node — including the MVI46-MBP — receives the network token in a fixed sequence. If a node fails or is removed from the network, the token-passing algorithm automatically bypasses the failed node and redistributes the token to the next active node within one token rotation cycle. This self-healing behavior ensures that a single node failure does not cause a network-wide communication outage. The MVI46-MBP’s onboard diagnostics log token loss events and communication errors to internal registers, which can be read by the SLC 500 processor for alarm generation and maintenance notification.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance and spare parts supply?
The warranty terms confirmed during quotation covers all hardware defects and functional failures arising under normal operating conditions from the date of shipment. This includes backplane interface failures, network port defects, and firmware-related communication errors. Warranty claims are processed through ZYPLC’s technical support team, with replacement units dispatched within agreed lead times. For long-term maintenance planning, ZYPLC supports RFQ sourcing for MVI46-MBP units and compatible SLC 500 components, enabling rapid response to unplanned failures. Customers managing aging SLC 500 architectures are encouraged to establish a spare parts agreement to ensure continuity of supply beyond the standard warranty period.
