ProSoft MVI56-GSC Communication Module for ControlLogix Systems

ProSoft MVI56-GSC Industrial Network Interface for ControlLogix Systems: Bridging Serial Data Links in the Smart Factory

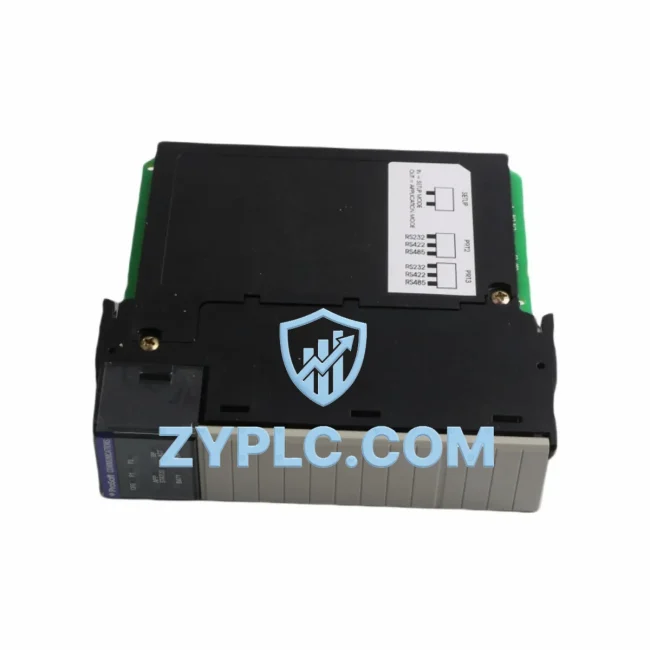

The ProSoft MVI56-GSC Enhanced Generic ASCII Serial Communication Module is a high-performance industrial network interface engineered for seamless integration within Allen-Bradley ControlLogix backplane architectures. Designed to bridge the gap between legacy serial devices and modern Ethernet-based control networks, the MVI56-GSC enables real-time data exchange across heterogeneous industrial environments — from field-level sensors and drives to SCADA supervisory systems and cloud-connected edge gateways.

In today’s smart factory, data continuity across every node of the automation hierarchy is non-negotiable. The MVI56-GSC addresses this demand by providing a configurable, dual-port serial communication interface that supports ASCII, Generic Serial, and custom protocol framing — making it an indispensable component wherever legacy serial instruments must communicate with a ControlLogix PLC backbone. Whether you are integrating barcode readers, weigh scales, vision systems, variable frequency drives, or third-party RTUs, the MVI56-GSC delivers the protocol flexibility and network stability required for uninterrupted production.

Compatibility & Integration Notes

Connected Automation Data Flow

The MVI56-GSC sits at the heart of a layered industrial data architecture. At the field level, serial instruments — including Keyence barcode readers, Mettler-Toledo weigh scales, Cognex vision sensors, and third-party RTUs — transmit raw ASCII strings or proprietary serial frames to the module’s configurable RS-232/RS-485 ports. The MVI56-GSC parses, buffers, and maps this data directly into the ControlLogix 1756 backplane data table, where the resident Logix5000 controller processes it in real time.

Within the ControlLogix chassis, the MVI56-GSC operates alongside modules such as the 1756-EN2T EtherNet/IP bridge, enabling parsed serial data to be forwarded upstream to Wonderware InTouch or FactoryTalk View SE SCADA platforms via standard EtherNet/IP messaging. For multi-network sites, the ProSoft MVI56-MCM Modbus master/slave module can be deployed in the same chassis to simultaneously handle Modbus RTU devices — such as power meters, flow controllers, and temperature transmitters — while the MVI56-GSC manages ASCII-based instruments on separate serial loops.

At the drive layer, variable frequency drives from brands such as Yaskawa, Danfoss, and Siemens that expose RS-485 serial interfaces can be polled by the MVI56-GSC, delivering speed reference, torque feedback, and fault status directly into the ControlLogix tag database. This data is then visualized on Allen-Bradley PanelView Plus 7 HMI terminals via FactoryTalk View, giving operators real-time process visibility without additional middleware.

For remote I/O expansion, the MVI56-GSC complements distributed I/O nodes such as the 1734 POINT I/O and 1794 FLEX I/O systems, which handle digital and analog field signals while the MVI56-GSC manages serial communication channels. In SCADA-connected architectures, edge gateways such as the ProSoft ICX35-HWC Industrial Cellular Gateway can relay ControlLogix tag data — including values sourced from the MVI56-GSC — to cloud-based MES or ERP platforms over 4G LTE, enabling remote diagnostics and predictive maintenance workflows from any location.

For sites requiring protocol bridging between EtherNet/IP and legacy serial networks, the ProSoft PLX51-EIP-SIE gateway provides a complementary path, while the MVI56-GSC continues to serve as the primary serial aggregation point within the ControlLogix chassis. Together, these components form a robust, scalable industrial communication backbone capable of supporting hundreds of field devices across multiple production lines.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of legacy serial devices alongside modern Ethernet-based control infrastructure. Older instruments — barcode scanners, analytical instruments, weighing terminals, and proprietary RTUs — often speak only ASCII or vendor-specific serial protocols that standard EtherNet/IP or Modbus TCP networks cannot natively interpret. This creates data silos: critical process values remain trapped at the field level, invisible to SCADA dashboards, MES reporting engines, and remote monitoring platforms.

The MVI56-GSC eliminates these silos by acting as a transparent protocol translator within the ControlLogix backplane. Its configurable message parsing engine allows engineers to define custom ASCII delimiters, fixed-length frames, or checksum-validated packets — adapting to virtually any serial device without custom firmware development. Once data is mapped into the ControlLogix tag database, it becomes immediately accessible to all upstream systems: FactoryTalk Historian for time-series archiving, FactoryTalk Analytics for OEE calculation, and third-party SCADA platforms via OPC-DA or OPC-UA servers.

Remote diagnostics are equally well served. The MVI56-GSC provides detailed port-level diagnostic counters — including message counts, error rates, and buffer status — accessible via standard ControlLogix RSLogix 5000 / Studio 5000 tag reads. Maintenance engineers can monitor communication health from the control room or remotely via VPN-connected workstations, enabling proactive fault detection before production is impacted. Combined with alarm integration through FactoryTalk Alarms and Events, the MVI56-GSC supports a complete closed-loop monitoring and response workflow.

For production line transparency and system scalability, the MVI56-GSC supports hot-standby redundancy configurations when paired with a redundant ControlLogix chassis, ensuring zero-downtime communication even during controller switchover events. As production requirements grow, additional MVI56-GSC modules can be added to the same chassis or distributed across multiple ControlLogix racks, scaling serial communication capacity without architectural redesign.

Industrial Connectivity FAQ

Q1: What communication protocols does the MVI56-GSC support, and is it compatible with non-standard serial devices?
The MVI56-GSC supports ASCII, Generic Serial Communication (GSC), and fully user-configurable message framing, making it compatible with virtually any RS-232, RS-422, or RS-485 serial device. Custom delimiters, fixed-length frames, and checksum validation are all configurable via ProSoft Configuration Builder, eliminating the need for custom driver development.

Q2: How does the MVI56-GSC handle communication latency in time-sensitive production environments?
The module operates with a configurable backplane update rate and supports baud rates up to 115,200 bps per port. For most industrial applications, end-to-end latency from serial device to ControlLogix tag is well under 10 milliseconds, meeting the real-time requirements of process control, quality inspection, and drive coordination tasks.

Q3: Can the MVI56-GSC be integrated with existing SCADA and HMI systems without replacing current infrastructure?
Yes. Because the MVI56-GSC maps serial data directly into the ControlLogix tag database, any SCADA or HMI platform that communicates with ControlLogix — including Wonderware, FactoryTalk View, Ignition, and Citect — gains immediate access to serial device data without additional drivers or middleware. This makes it an ideal retrofit solution for brownfield sites.

Q4: What quality assurance and warranty coverage is provided with the MVI56-GSC?
Every MVI56-GSC unit supplied by ZYPLC undergoes functional communication testing and firmware verification prior to shipment. Warranty terms are confirmed during quotation. RFQ-confirmed units are available for same-day dispatch via DHL or FedEx with global delivery, minimizing downtime for urgent replacement requirements.
