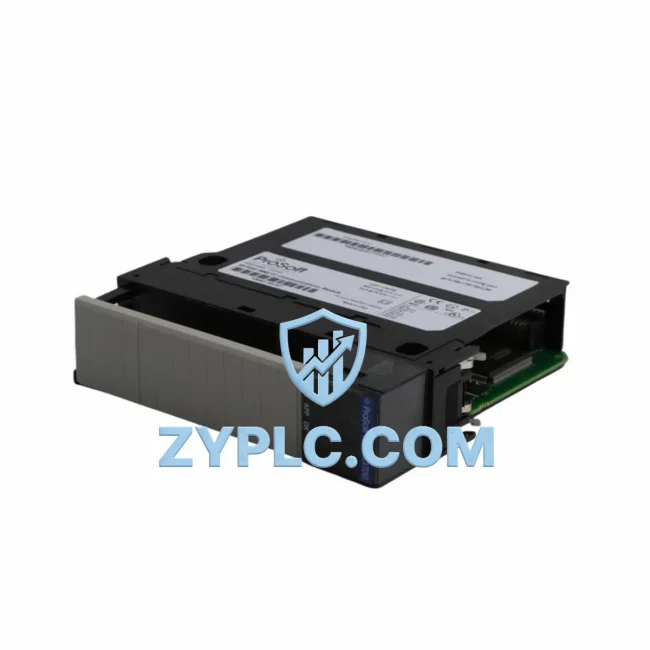

ProSoft MVI56-MNETC Communication Module for ControlLogix Systems

ProSoft MVI56-MNETC: Industrial Data Link for Smart Factory Connectivity

The ProSoft MVI56-MNETC is a high-performance Modbus TCP/IP Client/Server communication module engineered for Allen-Bradley ControlLogix backplane integration. Designed to bridge the gap between legacy field devices and modern Ethernet-based control architectures, the MVI56-MNETC enables seamless, real-time data exchange across the full industrial automation stack — from field-level sensors and actuators through PLC controllers, remote I/O, HMI panels, SCADA systems, and enterprise-level MES platforms. In smart factory environments where data transparency and network reliability are non-negotiable, this module delivers the protocol conversion backbone that keeps production lines connected, visible, and responsive.

Built on ProSoft Technology’s proven MVI56 series platform, the MVI56-MNETC slots directly into the ControlLogix chassis alongside modules such as the MVI56-MCM (Modbus serial master/slave) and the MVI56-DFNT (DeviceNet scanner), allowing engineers to consolidate multi-protocol communication within a single rack. This modular approach dramatically reduces panel footprint while expanding network reach across heterogeneous automation environments.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the MVI56-MNETC sits at the heart of the plant’s communication architecture. Signal acquisition begins at the field level, where Modbus-compatible devices — including Schneider Electric PowerLogic PM800 series power meters, Yokogawa EJA110E differential pressure transmitters, and variable frequency drives such as the ABB ACS880 — continuously generate process data. These devices communicate over Modbus TCP/IP, and the MVI56-MNETC acts as the client, polling each device on a configurable scan cycle and mapping the returned register data directly into the ControlLogix controller’s data table via the backplane.

Within the ControlLogix rack, the 1756-EN2T EtherNet/IP communication module works in parallel, forwarding processed data upstream to the plant’s SCADA server — typically a Wonderware System Platform or Ignition SCADA by Inductive Automation — where operators monitor KPIs, set alarm thresholds, and generate production reports in real time. Simultaneously, Rockwell Automation PanelView Plus 7 HMI terminals connected to the same EtherNet/IP network display live process values, enabling floor-level operators to respond immediately to deviations without waiting for supervisory intervention.

For distributed plant layouts, the MVI56-MNETC integrates naturally with ProSoft Technology’s AN-X2-AB-DHRIO gateway, which bridges legacy DH+ and Remote I/O networks into the modern Ethernet backbone. Remote I/O racks equipped with 1794-AENT FLEX I/O adapters can be polled over EtherNet/IP while the MVI56-MNETC simultaneously handles Modbus TCP/IP traffic from energy meters and third-party instrumentation — all within the same ControlLogix scan cycle. Industrial managed switches such as the Hirschmann RS20 or Cisco IE-2000 series provide the network infrastructure layer, ensuring deterministic packet delivery and VLAN segmentation between control and information networks.

At the edge, Moxa UC-8112 industrial computing gateways can aggregate data from the MVI56-MNETC via OPC-UA or MQTT, forwarding structured datasets to cloud analytics platforms or on-premise MES systems. This end-to-end data chain — from field sensor through PLC, gateway, SCADA, and cloud — is what defines true Industrial IoT connectivity, and the MVI56-MNETC is the protocol conversion engine that makes it possible.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation. Legacy Modbus RTU devices, third-party Ethernet instruments, and modern EtherNet/IP controllers often coexist on the same production floor but cannot communicate natively — creating data silos that obscure process performance, delay fault diagnosis, and prevent system-wide optimization.

The ProSoft MVI56-MNETC directly addresses this challenge by acting as a transparent Modbus TCP/IP gateway within the ControlLogix environment. Engineers can configure the module to simultaneously operate as both a Modbus TCP/IP client (polling field devices) and a server (responding to SCADA or HMI read requests), eliminating the need for separate protocol converters or middleware servers. Configuration is handled entirely through ProSoft Configuration Builder, which provides a structured, ladder-logic-friendly interface that integrates with RSLogix 5000 / Studio 5000 without requiring custom function blocks.

For remote monitoring and diagnostics, the MVI56-MNETC exposes a built-in web diagnostic page accessible via standard browser, displaying real-time communication statistics, error counters, and connection status for each configured Modbus session. This capability is invaluable for maintenance engineers performing remote fault isolation without physical access to the panel — reducing mean time to repair (MTTR) and supporting predictive maintenance workflows.

Production line transparency is further enhanced by the module’s ability to map Modbus register data into ControlLogix tags that are directly accessible by SCADA historians, enabling long-term trend analysis, OEE calculation, and energy consumption reporting. As production demands grow, additional MVI56-MNETC modules can be added to the ControlLogix rack to expand Modbus TCP/IP capacity — a scalable architecture that protects the initial automation investment while accommodating future system growth.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, firmware version, and hardware condition. All MVI56-MNETC modules are Warranty terms are confirmed during quotation.

Industrial Connectivity FAQ

Q1: What is the typical communication latency of the MVI56-MNETC in a Modbus TCP/IP polling cycle?
The MVI56-MNETC supports configurable scan rates, with typical polling cycles ranging from 10 ms to several seconds depending on the number of configured client connections and register block sizes. In most industrial applications with 10 or fewer Modbus TCP/IP client sessions, end-to-end latency from field device to ControlLogix data table is well under 100 ms, meeting the real-time requirements of most SCADA and HMI applications.

Q2: Is the MVI56-MNETC compatible with all ControlLogix chassis and firmware versions?
The MVI56-MNETC is compatible with all standard 1756 ControlLogix chassis (4, 7, 10, 13, and 17-slot) and supports a wide range of ControlLogix controller firmware versions. ProSoft recommends using Studio 5000 Logix Designer v21 or later for optimal Add-On Instruction (AOI) compatibility. Always verify the specific firmware matrix in the ProSoft MVI56-MNETC User Manual before deployment.

Q3: Can the MVI56-MNETC maintain network stability in electrically noisy industrial environments?
Yes. The MVI56-MNETC is designed to IEC 61131-2 environmental standards and includes robust error recovery mechanisms — including automatic TCP session reconnection and configurable timeout parameters — that maintain communication stability in the presence of electrical noise, network congestion, or temporary device dropouts common in heavy industrial environments such as steel mills, chemical plants, and automotive assembly lines.

Q4: What warranty and support does ZYPLC provide with the MVI56-MNETC?
All MVI56-MNETC units supplied by ZYPLC carry a 12-month warranty covering hardware defects and communication failures under normal operating conditions. Each unit is functionally tested prior to shipment. ZYPLC maintains Availability confirmed by RFQ inventory for RFQ-coordinated fulfillment, and our technical team is available to assist with configuration, integration, and troubleshooting support throughout the warranty period. Contact us at plc.sales@zyplc.com or +86 19859288691 for RFQ and technical inquiries.

|
