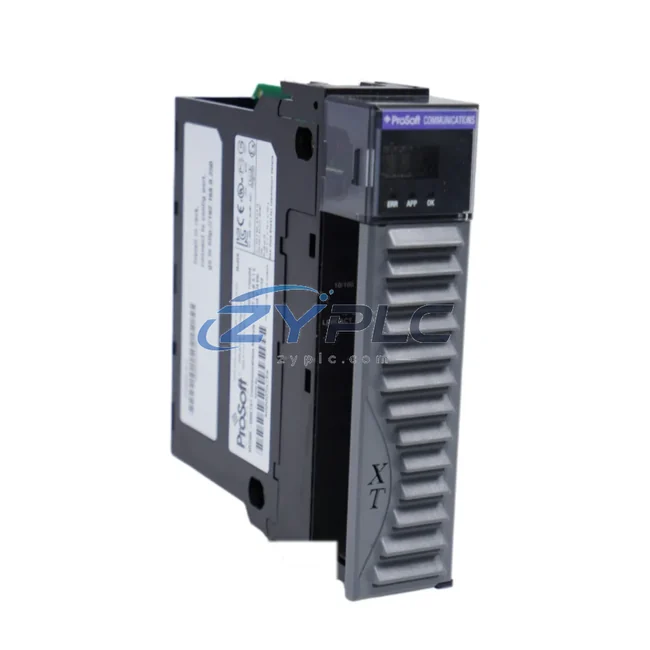

ProSoft MVI56E-MNETXT Modbus TCP Module for ControlLogix

ProSoft MVI56E-MNETXT Modbus TCP Module for ControlLogix

In modern industrial automation, no component operates in isolation. The ProSoft MVI56E-MNETXT is a high-performance Modbus TCP/IP communication module engineered for seamless integration within Allen-Bradley ControlLogix backplane architectures. Designed to bridge legacy Modbus TCP field devices with Rockwell Automation’s premier control platform, this module plays a critical role across the control layer, I/O layer, network layer, and communication infrastructure of a complete automation system. Whether deployed in a greenfield installation or retrofitted into an existing control cabinet, the MVI56E-MNETXT delivers the protocol translation, data throughput, and system-level reliability that demanding industrial environments require.

The MVI56E-MNETXT occupies a single slot in the ControlLogix chassis — such as the 1756-A7 or 1756-A13 backplane — and communicates directly with the system CPU via the ControlLogix backplane bus. It supports both Modbus TCP Master and Slave operation simultaneously, enabling bidirectional data exchange between the ControlLogix controller and up to 100 remote Modbus TCP devices. This makes it an indispensable component in architectures where PLCs, drives, meters, and remote I/O panels from multiple vendors must coexist under a unified control strategy.

From a system architecture perspective, the MVI56E-MNETXT integrates at the network communication layer, sitting between the ControlLogix CPU — typically a 1756-L71, 1756-L73, or 1756-L83E — and the Ethernet network infrastructure. It does not consume EtherNet/IP bandwidth on the primary controller backplane network, instead managing its own Modbus TCP sessions independently. This separation of protocol traffic is a key architectural advantage, preserving EtherNet/IP capacity for time-critical I/O and controller-to-controller messaging while offloading legacy protocol handling to the MVI56E-MNETXT.

Power for the module is supplied through the ControlLogix chassis power supply — such as the 1756-PA72 or 1756-PB72 — ensuring stable, regulated power delivery without the need for external power conditioning. This simplifies cabinet design and reduces the overall component count in the control enclosure, contributing to lower installation costs and improved long-term reliability.

In layered automation architectures, the MVI56E-MNETXT supports system scalability by enabling the ControlLogix platform to communicate with a wide range of field devices — including variable frequency drives, energy meters, remote terminal units, and third-party I/O modules — that use Modbus TCP as their native protocol. This system integration capability allows engineers to expand system functionality without replacing existing field instrumentation, protecting capital investment while extending the operational life of the control system.

For redundancy-critical applications, the MVI56E-MNETXT can be deployed in conjunction with Rockwell’s ControlLogix redundancy system, using a 1756-RM2 redundancy module and a secondary chassis to achieve controller-level failover. While the MVI56E-MNETXT itself does not participate in the redundancy switchover logic, its configuration and data mapping are mirrored to the secondary chassis, ensuring continuity of Modbus TCP communication following a controller switchover event.

Engineering teams benefit from ProSoft’s ProSoft Configuration Builder (PCB) software, which provides a structured environment for configuring Modbus TCP node addresses, register mapping, polling rates, and error handling behavior. Configuration data is stored in the module’s non-volatile memory, allowing the module to resume normal operation following a power cycle without requiring re-initialization from the controller. This feature is particularly valuable in applications where rapid restart after power interruption is a system requirement.

All units supplied by ZYPLC are tested prior to shipment and covered by a warranty terms confirmed during quotation, providing assurance of module functionality and supporting long-term maintenance planning. Spare module inventory management is simplified by the module’s standard ControlLogix form factor, which is compatible across multiple chassis generations and controller revisions.

Product Specification Table

System Compatibility Notes

The MVI56E-MNETXT achieves its full value when considered as part of a coordinated ControlLogix system architecture. At the control layer, the module works alongside the primary CPU — such as the 1756-L71 or 1756-L83E — exchanging data through the backplane at each controller scan cycle. The CPU reads Modbus TCP data from the module’s input data table and writes command data to the module’s output data table, enabling seamless integration of Modbus TCP field data into the controller’s ladder logic or structured text programs.

At the I/O layer, the MVI56E-MNETXT complements standard ControlLogix digital and analog I/O modules — such as the 1756-IB16 digital input module and 1756-OF8 analog output module — by extending the controller’s reach to Modbus TCP-enabled field devices that cannot be addressed through standard I/O racks. This is particularly relevant in applications where remote Modbus TCP RTUs or smart instruments are located at distances that preclude direct I/O wiring.

At the network layer, the module connects to the plant Ethernet network through its dedicated RJ45 port, operating independently of the controller’s EtherNet/IP network managed by a 1756-EN2T or 1756-EN3TR communication module. This dual-network architecture prevents Modbus TCP polling traffic from interfering with EtherNet/IP I/O and messaging performance, a critical design consideration in high-availability systems.

For human-machine interface integration, process data collected by the MVI56E-MNETXT is made available to PanelView Plus 7 HMI terminals or SCADA systems via the ControlLogix controller’s tag database, eliminating the need for direct HMI-to-Modbus TCP connections and centralizing data management at the controller level. At the power layer, the 1756-PA72 chassis power supply provides stable 1.2A backplane current to the module, ensuring reliable operation even in electrically noisy industrial environments. Terminal modules such as the 1492-AIFM wiring system can be used to organize field wiring connections within the control cabinet, improving installation quality and long-term maintainability.

Industrial Application Notes

The MVI56E-MNETXT is deployed across a broad range of industrial sectors where Modbus TCP remains the dominant field communication protocol for legacy and third-party devices.

In power generation and distribution applications, the module enables ControlLogix controllers to communicate with protective relays, power meters, and automatic transfer switches that use Modbus TCP for data reporting and control. This allows plant operators to integrate electrical system data into the main process control system without replacing existing protection equipment.

In oil, gas, and petrochemical facilities, the MVI56E-MNETXT bridges ControlLogix-based safety and process control systems with Modbus TCP-enabled flow computers, pressure transmitters, and remote I/O panels located in hazardous areas. The module’s ability to handle multiple simultaneous Modbus TCP sessions supports the complex, multi-device communication requirements typical of upstream and midstream process control architectures.

In water and wastewater treatment plants, the module facilitates communication between ControlLogix controllers and Modbus TCP-enabled pump drives, level sensors, and chemical dosing systems distributed across large geographic areas. Its support for long-distance Ethernet communication over fiber-optic media converters makes it suitable for geographically dispersed installations.

In manufacturing and packaging environments, the MVI56E-MNETXT enables ControlLogix systems to integrate with Modbus TCP-enabled variable frequency drives, servo drives, and vision systems from multiple vendors, supporting flexible production line architectures where equipment from different manufacturers must operate under unified supervisory control.

In mining and metallurgical applications, the module’s robust operating temperature range and industrial-grade construction make it suitable for deployment in harsh environments where temperature extremes, vibration, and electrical noise are common challenges.

Product Compatibility FAQ

Q1: Is the MVI56E-MNETXT compatible with all ControlLogix chassis and controller revisions?
The MVI56E-MNETXT is compatible with all standard ControlLogix 1756-series chassis, including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. It is supported by ControlLogix controllers running RSLogix 5000 or Studio 5000 Logix Designer firmware revision 16 and above. The module’s Add-On Profile (AOP) simplifies integration into the Studio 5000 project tree, and the ProSoft Configuration Builder software provides a dedicated configuration environment compatible with all current Windows operating systems. No hardware modifications to the chassis or controller are required for installation.

Q2: How does the MVI56E-MNETXT maintain communication stability in high-traffic network environments?
The MVI56E-MNETXT manages its own Modbus TCP communication sessions independently of the ControlLogix controller’s EtherNet/IP network, preventing protocol interference. The module supports configurable polling rates, timeout values, and retry counts for each Modbus TCP node, allowing engineers to optimize communication performance for specific network conditions. Error detection and diagnostic data are written to the controller’s tag database in real time, enabling the controller program to implement fault handling logic and alarm generation without requiring manual intervention. For networks with high background traffic, the module’s dedicated Ethernet port can be connected to a separate network segment or VLAN to further isolate Modbus TCP traffic.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability?
All MVI56E-MNETXT modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes functional testing to verify communication performance and backplane interface integrity. ZYPLC supports RFQ sourcing for MVI56E-MNETXT modules to support both immediate replacement needs and planned maintenance programs. For long-term maintenance planning, ZYPLC can provide multi-unit spare module packages and technical support for module configuration, firmware verification, and system integration. Contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com for spare parts availability and warranty service inquiries.
