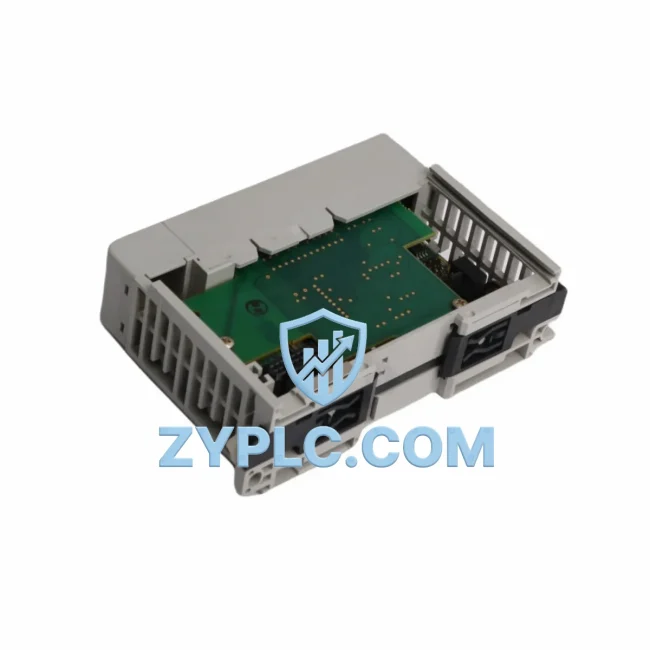

ProSoft MVI69-MNETC Industrial Network Interface for CompactLogix Systems

ProSoft MVI69-MNETC: Industrial Data Link for Smart Factory Connectivity

In modern industrial automation, seamless data flow between field devices, PLC controllers, remote I/O systems, HMI panels, SCADA platforms, variable frequency drives, and enterprise-level supervisory systems is no longer optional — it is the foundation of operational efficiency. The ProSoft MVI69-MNETC is a high-performance Modbus TCP/IP Multi-Client communication module engineered specifically for the Allen-Bradley CompactLogix platform, delivering reliable, real-time protocol bridging across every layer of the industrial network stack.

Designed to slot directly into the CompactLogix backplane, the MVI69-MNETC eliminates the communication barriers that traditionally isolate legacy field instruments from modern Ethernet-based control networks. Whether your application demands continuous signal acquisition from distributed sensors, protocol conversion between Modbus RTU devices and Ethernet infrastructure, or transparent data exchange with SCADA and MES systems, this module provides the connectivity backbone your architecture requires.

Network Communication Table

Connected Automation Data Flow

The MVI69-MNETC operates at the intersection of the field layer and the control layer, making it a critical node in any layered automation architecture. In a typical smart factory deployment, field-level instruments — including pressure transmitters, flow meters, temperature sensors, and motor protection relays — generate continuous process data that must be aggregated, converted, and delivered to the control system in real time.

Mounted directly in the CompactLogix 1769-L33ER or 1769-L36ERM chassis, the MVI69-MNETC reads data from legacy Modbus RTU devices connected via RS-485 serial links and maps that data into the CompactLogix controller’s data table using the ProSoft Configuration Builder (PCB) utility. This eliminates the need for external protocol converters or additional gateway hardware, reducing panel footprint and simplifying system commissioning.

On the Ethernet side, the module communicates simultaneously with up to four Modbus TCP/IP client targets — which may include Schneider Electric Modicon M340 PLCs, third-party SCADA servers running Wonderware InTouch or Ignition, or industrial edge gateways such as the ProSoft ICX35-HWC wireless communication gateway. This multi-client architecture allows the MVI69-MNETC to serve as a true data concentrator, aggregating signals from multiple sources and distributing them across the network without bottlenecks.

For remote I/O integration, the module works alongside 1769-IQ16 digital input modules and 1769-OF4 analog output modules within the same CompactLogix rack, ensuring that both hardwired and network-based signals are processed within a unified control context. When variable frequency drives — such as the PowerFlex 525 or PowerFlex 755 — are connected via Modbus TCP/IP, the MVI69-MNETC enables real-time speed reference commands and feedback monitoring directly from the CompactLogix program, supporting closed-loop drive control without additional communication hardware.

At the supervisory layer, SCADA systems and HMI panels — including PanelView Plus 7 terminals connected via EtherNet/IP — can access process data mapped through the MVI69-MNETC using standard Modbus register addressing. This contextual integration ensures that operators have a consistent, real-time view of field conditions across the entire production line, from raw material intake to finished goods packaging.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of multiple communication protocols across different generations of equipment. A facility may operate legacy Modbus RTU instruments installed decades ago alongside modern EtherNet/IP-based controllers and cloud-connected edge devices — each speaking a different protocol, creating data silos that prevent unified monitoring and control.

The MVI69-MNETC directly addresses this challenge by acting as a transparent protocol bridge. Modbus RTU data from serial field devices is automatically converted to Modbus TCP/IP format and made available to any Ethernet-connected system on the network. This means that a SCADA platform running on a plant-floor server can poll real-time values from a legacy flow transmitter as easily as it reads data from a modern smart sensor — without any custom programming or middleware.

For facilities pursuing production line transparency and OEE (Overall Equipment Effectiveness) improvement, the MVI69-MNETC enables the collection of granular machine-level data — cycle counts, fault codes, energy consumption, and process variables — and delivers it to MES or ERP systems via standard Modbus TCP/IP polling. This data visibility supports predictive maintenance programs, reduces unplanned downtime, and accelerates root-cause analysis when process deviations occur.

Remote diagnostics are supported through the module’s built-in web server and diagnostic LED indicators, allowing maintenance engineers to verify communication status, check error counters, and review data mapping configurations without physical access to the control panel. In multi-site operations, this capability significantly reduces travel costs and accelerates fault resolution. All units supplied by ZYPLC are pre-tested and shipped with a 12-Month Warranty, ensuring that every module performs to specification from day one of installation.

Industrial Connectivity FAQ

Q1: Does the MVI69-MNETC introduce communication latency that could affect real-time control loops?
The MVI69-MNETC is designed for deterministic data exchange with scan cycle times configurable down to 1 ms for critical data blocks. For standard process monitoring applications, typical end-to-end latency from field device to CompactLogix data table is well under 50 ms, making it suitable for the vast majority of industrial control and SCADA integration tasks. For hard real-time motion control, dedicated EtherNet/IP motion modules are recommended.

Q2: Is the MVI69-MNETC compatible with both CompactLogix and MicroLogix platforms?
The MVI69-MNETC is specifically designed for the MVI69 Series backplane, which is compatible with Allen-Bradley CompactLogix controllers including the 1769-L23, 1769-L27, 1769-L33, and 1769-L36 families. It is not directly compatible with MicroLogix platforms, which use a different backplane form factor. ProSoft offers the MVI46-MNETC for SLC 500 systems and the MVI56-MNETC for ControlLogix applications.

Q3: Can the module handle simultaneous Modbus TCP/IP client and server operations?
Yes. The MVI69-MNETC supports up to 4 simultaneous Modbus TCP/IP client connections and up to 10 server connections concurrently. This allows the module to actively poll field devices as a client while simultaneously responding to data requests from SCADA servers, HMI panels, or other controllers acting as Modbus TCP/IP masters — all without performance degradation.

Q4: What does the 12-Month Warranty cover, and how does ZYPLC handle warranty claims?
All MVI69-MNETC units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment. In the event of a warranty claim, ZYPLC provides direct technical support and replacement coordination. Contact our team at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty inquiry.
