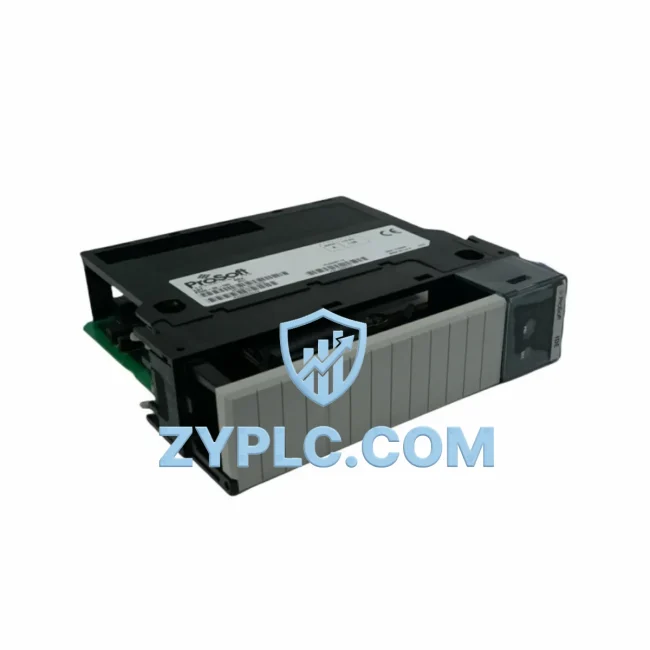

ProSoft PC56-2K-IDE Industrial Network Interface for ControlLogix Systems

ProSoft PC56-2K-IDE: Industrial Data Link for Smart Factory Connectivity

The ProSoft PC56-2K-IDE is a high-performance in-rack industrial PC and communication gateway engineered for seamless integration within Rockwell Automation ControlLogix backplane environments. Designed to bridge legacy serial protocols and modern Ethernet-based industrial networks, the PC56-2K-IDE serves as a critical node in the smart factory data chain — connecting field devices, PLC controllers, remote I/O modules, HMI panels, SCADA systems, variable frequency drives, and edge computing platforms into a unified, real-time communication architecture.

In today’s industrial landscape, data continuity from the sensor level to the enterprise layer is non-negotiable. The PC56-2K-IDE addresses this need by providing robust protocol conversion, stable network transmission, and deterministic data delivery across multi-vendor automation environments. Whether deployed in discrete manufacturing, process control, or hybrid production lines, this module ensures that every signal — from a proximity sensor on the shop floor to a historian tag in the SCADA server — travels reliably and without latency.

Network Communication Table

Connected Automation Data Flow

The PC56-2K-IDE sits at the heart of a layered industrial communication architecture. At the field level, sensors and actuators — including pressure transmitters, flow meters, and proximity switches — feed analog and digital signals into remote I/O modules such as the 1756-IB16 and 1756-OB16E ControlLogix I/O cards. These signals are aggregated and processed by the 1756-L73 ControlLogix L7 CPU, which communicates with the PC56-2K-IDE via the high-speed IDE backplane bus.

The PC56-2K-IDE then performs protocol conversion, translating native ControlLogix CIP data into Modbus RTU or ASCII frames for downstream serial devices — including legacy PowerFlex 40 and PowerFlex 700 variable frequency drives that do not natively support EtherNet/IP. This bidirectional data bridge ensures that drive speed references, fault codes, and energy consumption data are continuously available to the upper-layer systems.

On the Ethernet side, the module interfaces with Stratix 5700 managed industrial switches, enabling seamless integration into the plant-wide EtherNet/IP network. HMI panels such as the PanelView Plus 7 retrieve real-time process values — temperatures, pressures, motor speeds — directly from the ControlLogix tag database, which is continuously updated by the PC56-2K-IDE’s data acquisition engine.

SCADA platforms, including FactoryTalk View SE and third-party systems via OPC-DA/UA gateways, subscribe to these data streams for alarm management, trend logging, and production reporting. The PC56-2K-IDE’s deterministic communication cycle ensures that alarm events are propagated to the SCADA layer within milliseconds, enabling rapid operator response and minimizing unplanned downtime.

For remote diagnostics, the module supports out-of-band monitoring via the EtherNet/IP network, allowing maintenance engineers to interrogate module health, communication statistics, and error logs from a remote engineering workstation without interrupting live production. This capability is further enhanced when paired with ProSoft Configuration Builder (PCB) software, which provides a graphical interface for protocol mapping, diagnostic trending, and firmware management.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation — the coexistence of incompatible communication standards across different generations of equipment. A typical plant may operate Modbus RTU devices alongside EtherNet/IP controllers, PROFIBUS field instruments, and proprietary serial peripherals, creating data silos that prevent holistic visibility and control.

The ProSoft PC56-2K-IDE directly addresses this challenge by acting as a universal protocol bridge within the ControlLogix chassis. By mapping serial device registers to ControlLogix controller tags, the module eliminates the need for external protocol converters or custom middleware, reducing system complexity and potential failure points. All data — regardless of its origin protocol — becomes accessible through the standard ControlLogix tag structure, enabling unified SCADA visualization, historian logging, and MES integration.

Production line transparency is further enhanced through the module’s support for real-time data polling and event-driven messaging. Process engineers can configure scan rates as low as 10 milliseconds for critical control loops, while less time-sensitive data — such as energy meters and environmental sensors — can be polled at longer intervals to optimize network bandwidth. This granular control over data refresh rates ensures that the EtherNet/IP network remains stable and deterministic even as the number of connected devices grows.

System expansion is straightforward: additional PC56-2K-IDE modules can be installed in the same or adjacent ControlLogix chassis, each independently managing its own serial device network. This modular architecture allows plants to scale their connectivity infrastructure incrementally, adding new production lines or integrating acquired facilities without redesigning the existing network topology. All modules are pre-tested before shipment and covered by a 12-month warranty, ensuring confidence in both initial deployment and long-term operation.

Industrial Connectivity FAQ

Q1: What is the communication latency of the PC56-2K-IDE when bridging serial Modbus devices to EtherNet/IP?
The PC56-2K-IDE supports configurable polling intervals starting from 10 milliseconds for high-priority data. Typical end-to-end latency from a Modbus RTU device to a ControlLogix controller tag is under 50 milliseconds under normal network conditions, making it suitable for most process monitoring and supervisory control applications.

Q2: Is the PC56-2K-IDE compatible with both ControlLogix and CompactLogix platforms?
The PC56-2K-IDE is designed as an in-rack module for the ControlLogix IDE backplane. For CompactLogix or other Logix platforms, ProSoft offers alternative modules such as the MVI56E series. Please consult the product datasheet or contact our technical team to confirm compatibility with your specific chassis and firmware version.

Q3: How does the module maintain network stability in high-noise industrial environments?
The PC56-2K-IDE incorporates industrial-grade EMI shielding and supports RS-422/RS-485 differential signaling for serial communications, providing excellent noise immunity over long cable runs. The EtherNet/IP interface is compatible with managed switches such as the Stratix 5700, which support IGMP snooping and QoS prioritization to maintain deterministic network performance even under heavy traffic loads.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
Every PC56-2K-IDE unit undergoes functional testing prior to shipment, including protocol communication verification and backplane interface validation. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. LINKPLC maintains in-stock inventory of this module to support rapid deployment, with global shipping available to minimize project lead times.

—
