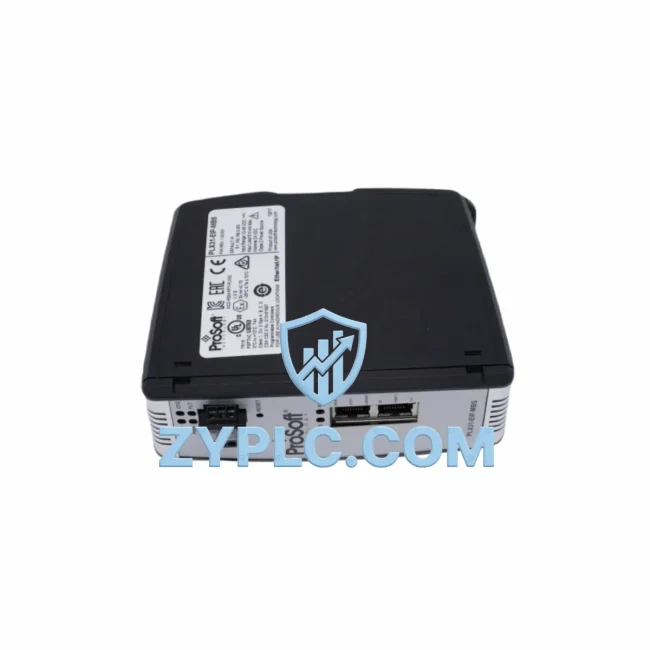

ProSoft PLX31-EIP-MBS4: Industrial Data Link for Smart Factory Connectivity
The ProSoft PLX31-EIP-MBS4 is a high-performance industrial network interface gateway engineered to bridge EtherNet/IP and Modbus Serial (RTU/ASCII) protocols within demanding automation environments. As a core component of the ProSoft PLX31 Series, this gateway eliminates data isolation between legacy serial field devices and modern Ethernet-based control architectures — enabling seamless, real-time data flow across the entire industrial network stack.
In smart factory deployments, the PLX31-EIP-MBS4 sits at the intersection of field-level instrumentation and supervisory control systems. It connects Modbus RTU/ASCII devices — including variable frequency drives, flow meters, temperature transmitters, and pressure sensors — directly into EtherNet/IP networks managed by Allen-Bradley ControlLogix or CompactLogix PLCs. This bidirectional protocol conversion ensures that every data point, from motor speed feedback to process alarm status, is available in real time to SCADA platforms, MES systems, and HMI terminals without custom programming or middleware overhead.
Compatibility & Integration Notes
| Attribute |
Specification |
| Primary Protocol |
EtherNet/IP (Adapter / Scanner) |
| Secondary Protocol |
Modbus RTU / Modbus ASCII (Master / Slave) |
| Serial Ports |
4 × RS-232/RS-485/RS-422 (software selectable) |
| Ethernet Port |
1 × 10/100 Mbps RJ45 |
| Data Transfer |
Bidirectional, real-time cyclic and acyclic exchange |
| Network Compatibility |
Allen-Bradley ControlLogix, CompactLogix, MicroLogix; Modbus RTU/ASCII field devices |
| System Application |
SCADA integration, HMI data acquisition, PLC I/O expansion, remote diagnostics |
| Configuration Tool |
ProSoft Configuration Builder (PCB) software |
| Power Supply |
24 VDC (±10%) |
| Operating Temperature |
0°C to 60°C |
| Warranty |
12-Month Warranty — all units tested before shipment |
Connected Automation Data Flow
In a typical smart factory data flow, the PLX31-EIP-MBS4 acts as the protocol translation backbone between the field layer and the control layer. At the field level, legacy Modbus RTU devices — such as Schneider Electric ATV320 variable frequency drives, Endress+Hauser Promag flow transmitters, and Yokogawa EJA pressure transmitters — communicate over RS-485 serial links. The PLX31-EIP-MBS4 reads these Modbus register maps across its four independent serial ports, converting the data into EtherNet/IP implicit and explicit messaging packets.
These packets are then consumed by an Allen-Bradley ControlLogix L7x PLC via a 1756-EN2T EtherNet/IP communication module, where the data is processed, alarmed, and forwarded upstream. The ControlLogix controller passes real-time process values to a Rockwell Automation FactoryTalk View SE SCADA server and to PanelView Plus 7 HMI terminals on the plant floor, giving operators live visibility into drive status, flow rates, and pressure readings.
For remote I/O expansion, the PLX31-EIP-MBS4 integrates alongside ProSoft PLX82-EIP-MBTCP Modbus TCP gateways and FLEX I/O 1794-AENT remote I/O adapters, extending the EtherNet/IP network to distributed control panels across the facility. Edge-level data aggregation is handled by an industrial edge gateway running OPC-UA, which subscribes to the EtherNet/IP data tags and forwards normalized datasets to cloud-based MES or ERP platforms for production analytics and KPI dashboards.
This end-to-end data chain — from Modbus serial sensor to SCADA dashboard — is made possible by the PLX31-EIP-MBS4’s deterministic protocol conversion, sub-millisecond scan cycle support, and robust DIN-rail mounted hardware designed for 24/7 industrial operation.
Solving Data Isolation in Industrial Sites
One of the most persistent challenges in industrial automation is the coexistence of legacy Modbus serial devices alongside modern EtherNet/IP infrastructure. Without a reliable protocol gateway, these two worlds remain isolated — creating data silos that prevent operators from achieving full production line transparency.
The ProSoft PLX31-EIP-MBS4 directly addresses this challenge by providing a deterministic, configurable bridge between Modbus RTU/ASCII field devices and EtherNet/IP control networks. Its four independent serial ports allow simultaneous connection to multiple legacy devices, eliminating the need for separate converters per device and reducing panel wiring complexity.
For remote monitoring and diagnostics, the PLX31-EIP-MBS4 exposes diagnostic data tags directly within the ControlLogix tag database, enabling SCADA systems to monitor gateway health, communication error counts, and port activity without additional hardware. This supports proactive maintenance strategies and reduces downtime caused by silent communication failures.
System scalability is built into the PLX31 architecture. As production lines expand, additional PLX31-EIP-MBS4 units can be added to the EtherNet/IP network without reconfiguring the existing PLC program — each gateway appears as a standard EtherNet/IP adapter with a configurable data table. This modular approach supports phased smart factory upgrades, allowing brownfield sites to integrate new automation islands without replacing existing field instrumentation.
Protocol unification through the PLX31-EIP-MBS4 also enables production line transparency at the SCADA and MES level. By surfacing Modbus device data as native EtherNet/IP tags, operators gain access to real-time OEE metrics, alarm histories, and trend data that were previously locked inside isolated serial networks — transforming disconnected field devices into fully visible, manageable assets within the smart factory ecosystem.
Industrial Connectivity FAQ
Q1: What is the communication latency of the PLX31-EIP-MBS4 between Modbus serial devices and the EtherNet/IP network?
The PLX31-EIP-MBS4 supports configurable scan rates per serial port, with typical end-to-end latency in the range of 10–50 ms depending on Modbus poll frequency, baud rate, and the number of connected devices. For time-critical applications, individual port scan rates can be tuned via ProSoft Configuration Builder to minimize latency.
Q2: Is the PLX31-EIP-MBS4 compatible with both Modbus RTU and Modbus ASCII protocols simultaneously?
Yes. Each of the four serial ports can be independently configured as Modbus RTU or Modbus ASCII, operating as either Master or Slave. This allows the gateway to communicate with mixed Modbus device populations across different serial segments within a single unit.
Q3: How does the PLX31-EIP-MBS4 maintain network stability in high-noise industrial environments?
The gateway features isolated RS-485/RS-422 serial ports with surge protection, a wide operating temperature range (0°C to 60°C), and a robust DIN-rail enclosure rated for industrial environments. Watchdog timers and automatic error recovery routines ensure the gateway reconnects and resumes communication without manual intervention following transient network disturbances.
Q4: What warranty and pre-shipment testing does the PLX31-EIP-MBS4 include?
All PLX31-EIP-MBS4 units supplied by ZYPLC carry a 12-month warranty and undergo functional communication testing prior to shipment. Stock is maintained for prompt delivery, and RFQ requests are processed within one business day. For technical support or volume quotation, contact our team directly.
