Reliance Electric GV3000E-AC003-AA-DBU-RFI AC Drive GV3000/SE

Reliance Electric GV3000E-AC003-AA-DBU-RFI AC Drive GV3000/SE: for Industrial Automation

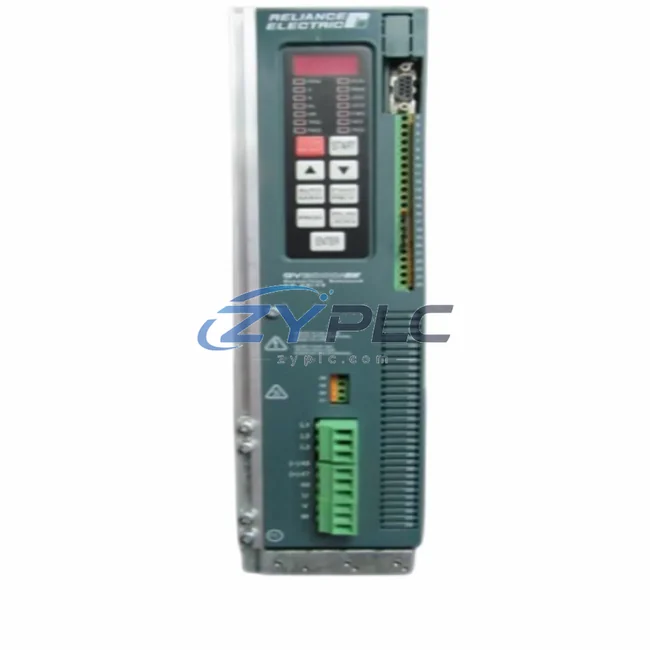

The Reliance Electric GV3000E-AC003-AA-DBU-RFI is a compact, system-integrated AC variable frequency drive engineered for seamless deployment within the GV3000/SE control architecture. Rated at 0.3 HP (0.25 kW) at 230V AC input, this drive incorporates a factory-integrated Dynamic Braking Unit (DBU) and an RFI filter, making it a self-contained drive node ready for direct installation into coordinated automation systems without additional external components. Its design philosophy centers on architectural consistency — every electrical and communication parameter is pre-aligned to the GV3000/SE platform, reducing commissioning time and eliminating compatibility risk across the control stack.

In modern industrial automation, a drive unit is never an isolated component. The GV3000E-AC003-AA-DBU-RFI is designed to function as a coordinated execution layer element, receiving velocity and torque references from upstream controllers, responding to I/O signals from field devices, and feeding back real-time status data to supervisory systems. Its integrated RFI suppression ensures that high-frequency switching noise does not propagate into adjacent signal wiring or communication buses — a critical requirement in densely wired control cabinets where PLCs, I/O modules, and network gateways share the same enclosure.

This drive is fully tested prior to shipment, supplied with a warranty terms confirmed during quotation, and maintained in ready inventory to support urgent replacement and system expansion projects across manufacturing, power distribution, water treatment, and process control industries.

Product Specification Table

System Compatibility Notes

The GV3000E-AC003-AA-DBU-RFI occupies the drive execution layer of a multi-tier GV3000/SE automation architecture. At the control layer, a Reliance Electric AutoMax PLC or a compatible DCS controller issues speed and torque commands via a dedicated GV3000/SE communication module — such as the 57C404B AutoMax Communication Module — which translates high-level control instructions into drive-native register writes over the internal drive communication bus. This tight coupling between the controller and the drive eliminates the latency and signal degradation associated with analog speed references, enabling precise closed-loop motor control across variable load conditions.

At the I/O layer, digital and analog signals from field sensors, limit switches, and process transmitters are routed through AutoMax I/O rack modules mounted on a shared backplane. These I/O modules feed real-time process data — motor current feedback, drive fault status, speed reference confirmation — back to the PLC scan cycle, allowing the control program to dynamically adjust drive parameters in response to changing production conditions. The integrated RFI filter in the GV3000E-AC003-AA-DBU-RFI plays a critical role here: by suppressing conducted emissions at the drive output, it protects the analog signal integrity of nearby I/O wiring and prevents false triggering of proximity sensors or encoder feedback circuits.

At the network layer, the GV3000/SE platform supports multiple fieldbus protocols. A DeviceNet gateway module or Profibus DP communication adapter can be installed in the drive’s option slot, enabling the GV3000E-AC003-AA-DBU-RFI to participate in plant-wide SCADA or DCS networks. This allows operators at an AutoMax HMI workstation or a remote engineering terminal to monitor drive operating parameters — output frequency, DC bus voltage, motor thermal load — without interrupting the production cycle.

The integrated Dynamic Braking Unit (DBU) adds a critical layer of system safety and mechanical protection. During deceleration or regenerative load conditions — common in conveyor systems, hoists, and centrifuge applications — the DBU dissipates excess DC bus energy through an external braking resistor, preventing DC bus overvoltage faults that would otherwise trip the drive and halt the production line. This is particularly important in systems where the GV3000E-AC003-AA-DBU-RFI drives a motor coupled to a high-inertia load, such as a flywheel, mixer, or winding reel.

At the power layer, the drive receives conditioned AC power from a GV3000/SE-compatible line reactor or isolation transformer, which reduces voltage notching and harmonic distortion on the supply bus. In redundant system designs, a bypass contactor assembly is wired in parallel with the drive output, allowing the motor to be switched to direct-on-line operation in the event of a drive fault — maintaining production continuity while the drive is serviced or replaced. The compact form factor of the GV3000E-AC003-AA-DBU-RFI makes it straightforward to maintain a spare unit in the control room, minimizing mean time to repair (MTTR) in critical process applications.

Industrial Application Notes

In manufacturing and assembly line environments, the GV3000E-AC003-AA-DBU-RFI is deployed to control conveyor belt motors, rotary indexing tables, and pneumatic actuator feed pumps. Its sensorless vector control mode delivers high starting torque at low speeds, enabling smooth acceleration of loaded conveyors without mechanical shock to the drive train. The integrated RFI filter ensures that variable-speed switching noise does not interfere with vision system cameras or barcode readers mounted near the drive cabinet.

In water and wastewater treatment facilities, this drive controls submersible pump motors and aeration blower drives. The closed-loop vector control mode, combined with a process PID controller running in the AutoMax PLC, maintains constant flow rates and dissolved oxygen levels despite varying inlet pressure and biological load conditions. The DBU handles the regenerative energy generated when pump speed is rapidly reduced in response to a high-level alarm, preventing nuisance drive trips that would require operator intervention.

In oil, gas, and petrochemical process plants, the GV3000E-AC003-AA-DBU-RFI is used in compressor control panels and heat exchanger fan drives. Its compatibility with Profibus DP communication allows it to be integrated into Siemens or ABB DCS systems via a protocol gateway, providing unified drive monitoring across heterogeneous control platforms. The warranty terms confirmed during quotation and pre-shipment testing protocol are particularly valued in these environments, where unplanned downtime carries significant safety and financial consequences.

In mining and mineral processing applications, the drive controls crusher feed conveyors, ball mill lubrication pumps, and flotation cell agitators. The robust DC bus design and integrated braking capability make it suitable for the high-inertia, high-cycle-rate demands of mineral processing equipment. Spare units are maintained in site inventory to support rapid replacement during scheduled maintenance windows.

Product Compatibility FAQ

Q1: Is the GV3000E-AC003-AA-DBU-RFI compatible with existing GV3000/SE communication modules and AutoMax PLC racks?
Yes. The GV3000E-AC003-AA-DBU-RFI is fully compatible with the GV3000/SE communication module ecosystem, including AutoMax, DeviceNet, and Profibus DP option cards. It integrates directly into existing GV3000/SE-based control architectures without firmware modifications or hardware adapters, provided the communication module firmware revision is compatible with the GV3000E drive series. Consult the GV3000/SE installation manual or contact our technical team for revision compatibility confirmation.

Q2: Does the integrated DBU eliminate the need for an external braking resistor, and what are the installation requirements?
The integrated Dynamic Braking Unit (DBU) provides the switching transistor and control logic for dynamic braking, but an external braking resistor must still be connected to the drive’s DB terminals. The DBU eliminates the need for a separate external braking chopper unit, simplifying panel wiring and reducing cabinet space requirements. The braking resistor must be sized according to the application’s duty cycle and peak regenerative energy — Reliance Electric provides resistor sizing guidelines in the GV3000E application engineering manual.

Q3: What does the warranty terms confirmed during quotation cover, and how is the pre-shipment testing conducted?
Every GV3000E-AC003-AA-DBU-RFI unit supplied by ZYPLC is functionally tested prior to shipment. Testing includes power-on verification, output voltage balance across all three phases, DBU transistor switching confirmation, RFI filter continuity check, and communication port response validation. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with test documentation upon request. For warranty claims or technical support, contact plc.sales@zyplc.com or call +86 19859288691.
