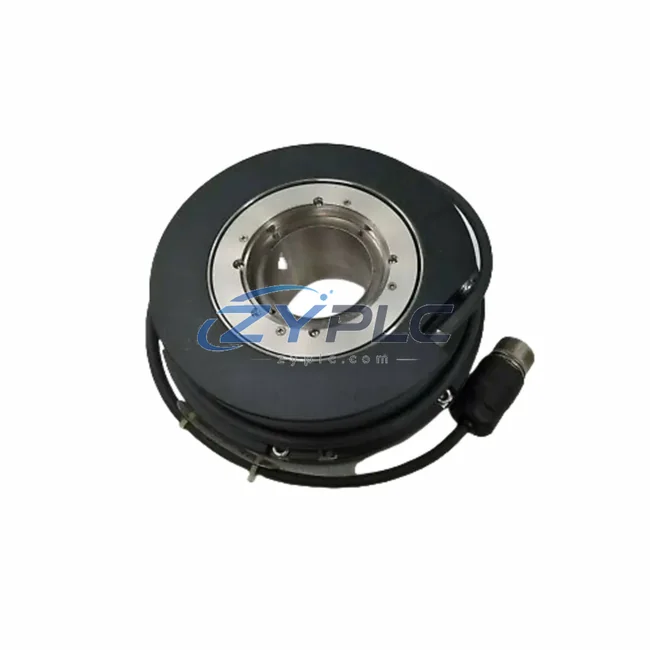

Rexroth 785C-0003-18000-311262-01 Encoder for IndraControl

Rexroth 785C-0003-18000-311262-01 Encoder for IndraControl

In modern industrial automation, the reliability of a complete control system depends not on any single component, but on the seamless coordination of every layer — from the controller and I/O modules to the drive system, feedback devices, communication backbone, and human-machine interface. The Bosch Rexroth 785C-0003-18000-311262-01 is a precision servo encoder module engineered to fulfill a critical role within this layered architecture: delivering accurate, high-resolution position and velocity feedback that sustains closed-loop control integrity across the entire IndraControl and IndraDrive platform ecosystem.

This encoder module is not simply a standalone feedback device. It is a system-compatible component designed to integrate directly into Bosch Rexroth’s IndraControl architecture, ensuring that every signal it generates is immediately interpretable by the motion controller, traceable through the drive system, and consistent with the diagnostic and commissioning tools used by automation engineers. When deployed within a coordinated control cabinet, the 785C-0003-18000-311262-01 contributes to system-wide consistency, reduces commissioning time, and supports long-term maintenance efficiency through standardized replacement and inventory management.

Product Specification Table

System Compatibility Notes

The 785C-0003-18000-311262-01 encoder module achieves its full value when considered within the broader Bosch Rexroth IndraControl system architecture. At the control layer, the IndraControl XM22 or IndraControl L45 motion logic controller manages real-time trajectory planning and axis coordination. These controllers communicate with the drive layer via SERCOS III or EtherCAT fieldbus, ensuring deterministic, low-latency command and feedback cycles that are essential for multi-axis synchronization.

At the drive layer, the IndraDrive Cs HCS01 and IndraDrive Ms HCS02 compact and modular servo drives receive position feedback directly from the 785C-0003-18000-311262-01 encoder. The drive’s integrated encoder evaluation circuit processes the high-resolution feedback signal, enabling precise torque, velocity, and position control without external signal conditioning hardware. In multi-axis systems, the IndraDrive Mi KCU02 supply unit and KSM02 integrated servo drives further extend the architecture into distributed motor-integrated configurations, where the encoder module’s standardized interface ensures plug-and-play compatibility.

At the I/O and signal layer, Rexroth Inline I/O modules (IL series) handle digital and analog process signals, while the encoder feedback path remains dedicated and isolated within the drive communication bus. This separation of control signals from process I/O reduces noise interference and improves signal integrity in electrically demanding environments such as metal processing lines or high-power press systems.

For power distribution, the HNF01 mains filter and HNS02 supply module provide clean, regulated DC bus power to the IndraDrive system, ensuring that encoder supply voltage remains stable even under dynamic load conditions. Voltage fluctuations at the encoder supply rail can introduce feedback errors; the regulated architecture of the IndraControl power layer eliminates this risk.

At the human-machine interface layer, Rexroth IndraControl VCP series operator panels provide real-time visualization of axis position, drive status, and encoder diagnostics. Engineers can monitor encoder health, review fault histories, and initiate homing sequences directly from the HMI, reducing the need for external diagnostic tools during commissioning and maintenance cycles. The standardized integration of the 785C-0003-18000-311262-01 within this ecosystem means that replacement procedures are well-documented, spare parts are readily available, and system downtime is minimized.

Industrial Application Notes

The 785C-0003-18000-311262-01 encoder module is deployed across a wide range of industrial automation sectors where precise motion feedback is non-negotiable. In automotive manufacturing, it supports robotic welding and assembly lines where sub-millimeter positioning accuracy is required across dozens of synchronized axes. In packaging machinery, it enables high-speed cam-profile synchronization between infeed, forming, filling, and sealing stations, ensuring consistent product quality at line speeds exceeding 300 units per minute.

In power generation and energy infrastructure, IndraControl-based systems equipped with this encoder module manage turbine blade pitch control and generator excitation systems, where feedback reliability directly impacts grid stability. In petrochemical and process industries, the encoder supports valve actuator positioning and compressor speed regulation within hazardous-area control architectures, where long-term component reliability and coverage are critical procurement criteria.

In water treatment and municipal infrastructure, the module integrates into pump station drive systems, providing accurate flow-rate control through precise motor speed feedback. In mining and metallurgy, it supports conveyor drive systems and rolling mill positioning, where heavy-duty cyclic loads demand robust encoder construction and consistent feedback accuracy over extended operational periods. Across all these applications, the 785C-0003-18000-311262-01 delivers the system integration that system architects require — a component that fits precisely into the existing control hierarchy without requiring custom adaptation or signal conversion.

Product Compatibility FAQ

Q1: Is the 785C-0003-18000-311262-01 compatible with both IndraDrive Cs and IndraDrive Ms drive families?
Yes. The 785C-0003-18000-311262-01 encoder module is designed for system integration within the Bosch Rexroth IndraDrive platform, supporting both the compact Cs series and the modular Ms series drive families. The standardized encoder interface ensures that the module can be deployed across different drive form factors within the same control architecture without requiring firmware changes or additional interface hardware. Engineers migrating from one drive series to another within the same IndraControl system can retain the same encoder module, reducing spare parts inventory complexity.

Q2: What commissioning tools are required to configure the encoder within an IndraControl architecture?
The 785C-0003-18000-311262-01 is fully supported by Bosch Rexroth’s IndraWorks Engineering software suite, which provides encoder parameterization, axis configuration, and diagnostic functions within a unified engineering environment. During commissioning, IndraWorks automatically identifies the encoder type and resolution, pre-populates drive parameters, and guides the engineer through homing and referencing procedures. This automated recognition capability significantly reduces commissioning time compared to manually configured third-party encoder solutions, and ensures that the encoder’s full resolution and diagnostic capabilities are accessible from day one of system operation.

Q3: What does the cover, and how does it support long-term maintenance planning?
The on the 785C-0003-18000-311262-01 covers manufacturing defects, premature component failure, and performance deviations from published specifications under normal operating conditions. For maintenance engineers, this warranty provides a defined baseline for spare parts budgeting and replacement scheduling. In practice, the warranty period aligns with typical annual maintenance cycles in manufacturing and process industries, allowing facilities managers to plan encoder inspections and replacements as part of scheduled shutdowns rather than reactive emergency repairs. Combined with the module’s standardized form factor and broad availability, the ensures that system uptime commitments can be met with confidence.
