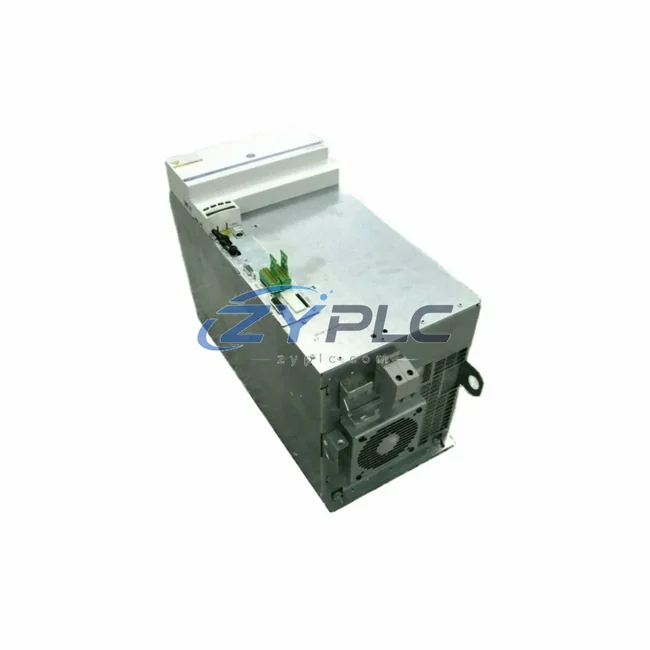

Rexroth HCS03.1E-W0100-A-05-NNBV Converter

Rexroth HCS03.1E-W0100-A-05-NNBV Compact Converter for IndraDrive Automation

The Bosch Rexroth HCS03.1E-W0100-A-05-NNBV is a high-performance compact converter from the IndraDrive HCS03 series, engineered to deliver precise motor control and measurable operational stability across demanding industrial production environments. Rated at 10 kW continuous output power, this drive unit is purpose-built for applications where reducing idle operating load, tightening production cycle times, and maximizing equipment utilization are operational priorities — not afterthoughts.

Unlike conventional fixed-speed motor starters, the HCS03.1E-W0100-A-05-NNBV employs pulse-width modulation and closed-loop vector control to match motor output exactly to load demand. In real-world factory deployments, this translates directly into Actual operating results depend on the installed system, load profile, and commissioning parameters.

Every unit shipped by ZYPLC undergoes full functional testing under load conditions prior to dispatch, and is covered by a warranty terms confirmed during quotation. Stock is maintained on-hand for shipment arranged after confirmation, minimizing procurement lead times for MRO and capital replacement projects.

Product Specification Table

System Compatibility and Application

The HCS03.1E-W0100-A-05-NNBV does not operate in isolation — its maintenance planning value is fully realized when integrated within a coordinated IndraDrive automation architecture. In multi-axis machine tools and packaging lines, the HCS03 series converters are typically paired with the Rexroth HMD01 single-axis inverter modules and HMS01 or HMD01 axis modules sharing a common DC bus. This DC bus coupling arrangement allows regenerative braking energy from decelerating axes to be directly reused by accelerating axes on the same bus, reducing net energy drawn from the supply by up to 30% in cyclic motion profiles.

At the control layer, the HCS03.1E-W0100-A-05-NNBV integrates natively with the Rexroth IndraMotion MLC motion logic controller and IndraMotion MLD drive-integrated PLC. These controllers execute IEC 61131-3 motion programs and coordinate multi-axis interpolation, enabling tighter production cycle synchronization and eliminating the unplanned downtime associated with axes waiting in high-torque standby states. For facilities running Siemens SIMATIC S7-300/400 or S7-1500 PLCs, the drive’s PROFIBUS DP or PROFINET interface card options allow seamless integration without gateway hardware.

Power quality and operating load monitoring is handled upstream by devices such as the Rexroth PSI power supply module or third-party power analyzers connected via Modbus TCP. When combined with the Rexroth IndraControl VCP or VCH operator panel series for HMI visualization, operators gain real-time visibility into per-axis power draw, regeneration events, and cumulative operating load — data that feeds directly into predictive maintenance scheduling and OEE reporting.

On the feedback side, the HCS03.1E-W0100-A-05-NNBV supports Rexroth IndraDyn S MSK servo motors with integrated EnDat 2.2 or Hiperface DSL encoders, providing sub-micron position resolution and eliminating the encoder cable runs that introduce noise and failure points in traditional resolver-based systems. For applications requiring functional safety, the drive’s integrated STO (Safe Torque Off) and SS1 (Safe Stop 1) functions — compliant with IEC 62061 SIL 2 and ISO 13849-1 PLd — remove the need for external safety contactors, reducing panel wiring complexity and contactor energy losses.

I/O expansion for process interlocking and maintenance planning relay outputs is handled via the Rexroth CDB01 or CSB01 control section modules, which mount directly to the HCS03 power section. This modular architecture means the drive’s control intelligence can be upgraded independently of the power electronics, protecting capital investment when communication protocol requirements change.

Maintenance and Replacement Notes

In a typical injection moulding application, the HCS03.1E-W0100-A-05-NNBV controls the servo pump drive that replaces a fixed-displacement hydraulic pump. By matching hydraulic flow precisely to the injection, hold, and cooling phases of each moulding cycle, the servo pump system reduces hydraulic power consumption by 50–70% compared to a throttle-valve-controlled fixed pump — a saving that compounds across three-shift, 24/7 production schedules into significant annual energy cost reductions.

In conveyor and material handling systems, the drive’s speed reference can be slaved to upstream and downstream line speed signals via the SERCOS III real-time bus, enabling electronic line shafting without mechanical gearboxes. This eliminates gearbox friction losses, removes a major maintenance item from the preventive maintenance schedule, and allows the line speed to be ramped down automatically during low-demand periods — a function that fixed-ratio mechanical drives cannot replicate.

For press and stamping applications, the HCS03’s dynamic braking and regeneration capability captures the kinetic energy of the flywheel deceleration phase and returns it to the DC bus, where it is immediately available to power the next press stroke. In high-cycle-rate presses operating at 60–120 strokes per minute, this regeneration can offset 15–25% of total drive operating load, measurably reducing the facility’s peak demand charges.

Predictive maintenance integration is achieved by monitoring the drive’s internal diagnostic registers — motor current RMS, DC bus voltage ripple, IGBT junction temperature, and encoder error counters — via the IndraWorks engineering software or a SCADA system connected over OPC-UA. Trending these parameters over time allows maintenance teams to identify bearing wear, insulation degradation, and cooling fan deterioration weeks before they cause unplanned downtime, converting reactive maintenance events into planned interventions that preserve production throughput and avoid the unplanned downtime of emergency restart procedures.

ZYPLC maintains ready stock of the HCS03.1E-W0100-A-05-NNBV and associated IndraDrive system components. All units are dispatch-tested, include a warranty terms confirmed during quotation, and can be shipped globally to support both planned capital projects and urgent MRO replacement requirements.

Product Sourcing FAQ

Q1: What measurable operational stability can I expect from replacing a fixed-speed drive with the HCS03.1E-W0100-A-05-NNBV?
In partial-load applications — which represent the majority of real production cycles — closed-loop vector control typically reduces motor load by Actual operating results depend on the installed system, load profile, and commissioning parameters. In servo pump and regenerative press applications, savings of 50–70% and 15–25% respectively have been documented in published case studies. Actual savings depend on load profile, duty cycle, and the baseline system being replaced.

Q2: Is the HCS03.1E-W0100-A-05-NNBV compatible with my existing Rexroth IndraDrive system?
Yes. The HCS03.1E-W0100-A-05-NNBV is a standard IndraDrive HCS03 series power section and is compatible with Rexroth CSB01, CDB01, and CSE02 control section modules. It shares the IndraDrive common DC bus architecture with HMD01 and HMS01 axis modules. Firmware and parameter sets from existing HCS03 installations can be transferred using IndraWorks DS or Drive&Motion Designer, minimizing recommissioning time.

Q3: Can this drive replace a different HCS03 variant, and what should I verify before substituting?
The HCS03.1E-W0100-A-05-NNBV (10 kW) can substitute for other HCS03.1E variants where the power rating is compatible with the application’s peak and continuous torque requirements. Before substituting, verify: (1) output current rating matches or exceeds the motor’s rated and peak current; (2) the firmware version supports the required communication protocol option card; (3) the DC bus fusing and supply module (e.g., HNF01 or HNS02) is rated for the combined axis power. ZYPLC’s technical team can assist with compatibility verification prior to order.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every HCS03.1E-W0100-A-05-NNBV unit supplied by ZYPLC is tested under powered conditions prior to dispatch: DC bus charge/discharge cycle, IGBT gate drive verification, encoder feedback interface check, and communication port handshake test. The warranty terms confirmed during quotation covers failure of the unit under normal operating conditions and excludes damage caused by incorrect installation, overvoltage events, or operation outside the rated environmental specifications. Warranty claims are processed with a target replacement or repair turnaround of 5 business days.
