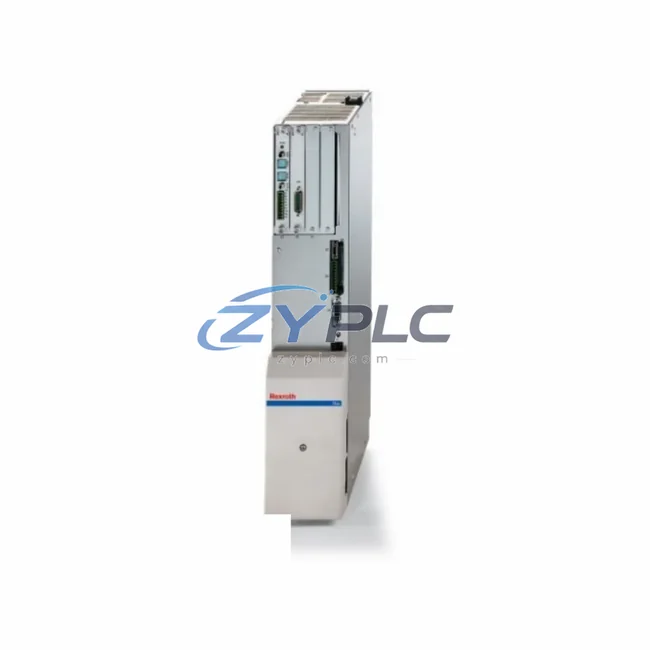

Rexroth HDS03.2-W075N-HS56-01-FW AC Servo Drive

Rexroth HDS03.2-W075N-HS56-01-FW AC Servo Drive: Replacement and Sourcing Information for HDS Series Automation

In modern manufacturing environments where energy costs and production efficiency are tightly linked, the Rexroth HDS03.2-W075N-HS56-01-FW AC Servo Drive delivers the precision motion control and maintenance-focused performance that industrial automation demands. Part of Bosch Rexroth’s proven HDS (High Dynamic Servo) Series, this drive is engineered for high-dynamic servo applications where accurate torque regulation, minimal unplanned downtime, and seamless integration with digital control architectures are non-negotiable. Whether deployed in CNC machining centers, packaging lines, press automation, or robotic assembly cells, the HDS03.2-W075N-HS56-01-FW brings measurable efficiency gains to every production cycle.

The W075N power designation indicates a 75A continuous current rating, making this unit suitable for demanding servo axes requiring substantial torque output without sacrificing dynamic response. The HS56 interface module integrates SERCOS II (Serial Real-time Communication System) fieldbus communication, enabling deterministic, high-speed data exchange between the drive and the motion controller — a critical factor in synchronizing multi-axis systems and eliminating energy-wasting positional errors caused by communication latency.

Product Specification Table

System Compatibility and Application

The HDS03.2-W075N-HS56-01-FW does not operate in isolation — its energy efficiency is realized through tight integration with the surrounding automation architecture. In a typical Rexroth-based servo system, the drive is powered through a Rexroth HVR or HVE regenerative power supply unit, which captures braking energy from decelerating servo axes and feeds it back into the shared DC bus. This regenerative loop significantly reduces net operating load across multi-axis machine tools and transfer lines, where axes are constantly accelerating and decelerating in coordinated motion profiles.

The SERCOS II interface connects the HDS03.2-W075N-HS56-01-FW to motion controllers such as the Rexroth DIAX04 controller or the IndraMotion MLD (Motion Logic Drive) platform, enabling real-time position, velocity, and torque commands to be exchanged at cycle times as low as 250 microseconds. This deterministic communication eliminates the positional drift and torque hunting that waste energy in less precise systems. Paired with Rexroth MKD or MHD Series AC servo motors, the drive forms a closed-loop energy chain where motor feedback — encoder position, winding temperature, and load current — is continuously analyzed to optimize the drive’s output and prevent over-energization.

On the I/O and monitoring side, the drive interfaces with Rexroth ECODRIVE03 parameter management tools and can be supervised through Rexroth IndraWorks engineering software, which provides real-time operating load dashboards, axis load profiles, and predictive maintenance alerts. When integrated into a broader plant network, data from the HDS03.2-W075N-HS56-01-FW can be aggregated by a Rexroth IndraControl L or XM controller and forwarded to SCADA or MES systems via PROFIBUS DP or EtherNet/IP gateway modules, enabling plant-level energy accounting and production efficiency KPI tracking.

For applications requiring coordinated multi-axis motion — such as gantry systems, winding machines, or servo presses — the HDS03.2-W075N-HS56-01-FW operates alongside other HDS Series drives sharing a common DC bus through Rexroth HZK capacitor modules, further smoothing power demand peaks and reducing the installed power capacity required from the supply transformer. This system-level energy architecture is what distinguishes a well-engineered Rexroth servo installation from a simple drive replacement.

Maintenance and Replacement Notes

On the factory floor, unplanned downtime in servo-driven machinery typically originates from three sources: oversized drive parameters that deliver more torque than the load requires, poor motion profile design that causes excessive acceleration energy, and reactive power drawn by motors operating at partial load. The HDS03.2-W075N-HS56-01-FW addresses all three through its adaptive closed-loop control architecture.

The drive’s torque feedforward control allows the motion controller to pre-calculate the required torque for each phase of a motion profile, reducing the reactive current drawn during acceleration and minimizing resistive losses in the motor windings. In packaging and assembly lines where servo axes repeat the same motion cycle thousands of times per shift, even a 5–8% reduction in per-cycle operating load translates to significant monthly savings at scale.

Downtime is another hidden energy cost — idle machines with drives in an unoptimized standby state continue to draw power from the DC bus. The HDS03.2-W075N-HS56-01-FW supports configurable drive enable/disable sequencing through the SERCOS II interface, allowing the motion controller to power down non-active axes during machine idle periods without losing encoder reference or requiring a full re-homing cycle. This feature is particularly valuable in flexible manufacturing cells where not all axes are active simultaneously.

Predictive maintenance integration further reduces unplanned downtime energy costs. The drive continuously monitors motor winding temperature via the motor feedback cable, DC bus voltage ripple, and output current harmonics. Deviations from baseline values — indicating bearing wear in the connected Rexroth MKD servo motor, cable insulation degradation, or mechanical load changes — trigger diagnostic messages through IndraWorks, allowing maintenance teams to schedule interventions during planned stops rather than reacting to failures. Every avoided emergency shutdown preserves both production throughput and the energy already invested in heating the machine to operating temperature.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including DC bus charge/discharge verification, SERCOS II communication handshake testing, and output current linearity checks. Each HDS03.2-W075N-HS56-01-FW is backed by a warranty terms confirmed during quotation, with global logistics support ensuring fast delivery to manufacturing sites worldwide.

Product Sourcing FAQ

Q1: How much energy can the HDS03.2-W075N-HS56-01-FW save compared to a non-regenerative servo drive?
In multi-axis systems with shared DC bus and a Rexroth HVR regenerative supply, operational stability of Actual operating results depend on the installed system, load profile, and commissioning parameters. The exact saving depends on the duty cycle, axis load profile, and the number of axes sharing the bus. Applications with frequent deceleration — such as servo presses and winding machines — benefit most from regenerative energy recovery.

Q2: Is the HDS03.2-W075N-HS56-01-FW compatible with my existing Rexroth DIAX04 or ECODRIVE03 controller?
Yes. The HS56 SERCOS II interface is fully compatible with Rexroth DIAX04 and ECODRIVE03 motion controllers, as well as IndraMotion MLD and CNC systems that support SERCOS II. Parameter sets from existing drives can be transferred using IndraWorks or the legacy BTV04 operator panel, minimizing commissioning time during replacement.

Q3: What is the recommended replacement procedure, and will the drive require re-tuning after installation?
For a like-for-like replacement of an HDS03.2-W075N-HS56-01-FW, the existing drive parameters can be backed up via IndraWorks and uploaded to the replacement unit. In most cases, no re-tuning is required if the motor type, feedback device, and mechanical load have not changed. ZYPLC recommends verifying the firmware version (FW suffix) matches the original unit to ensure parameter compatibility.

Q4: What does the warranty terms confirmed during quotation cover, and what pre-shipment testing is performed?
Every HDS03.2-W075N-HS56-01-FW supplied by ZYPLC is tested for DC bus integrity, SERCOS II communication, output stage functionality, and thermal management before shipment. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. ZYPLC supports RFQ sourcing for HDS Series drives and can provide export shipping options available with full documentation support.
