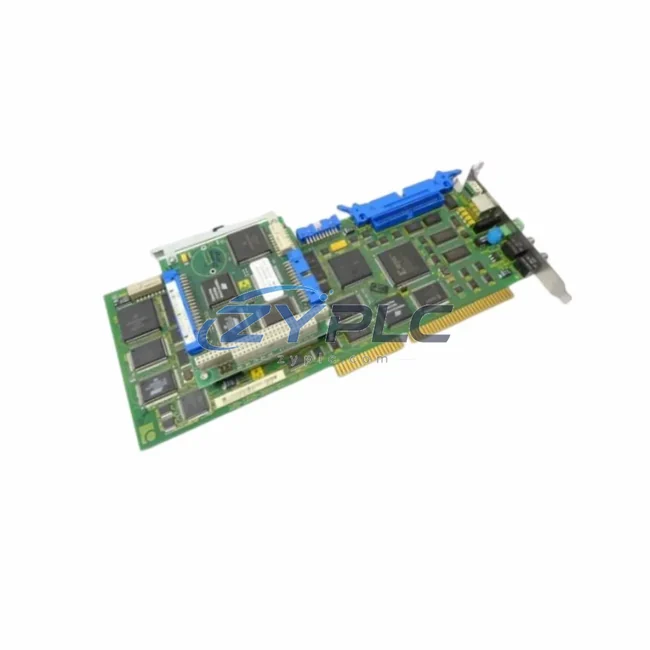

Rexroth MTC-P01.2-M2-A2-NN-NN-FW CNC Servo Drive Controller for MTC Systems

Rexroth MTC-P01.2-M2-A2-NN-NN-FW Industrial Network Interface for MTC Multi-Axis CNC Systems

The Rexroth MTC-P01.2-M2-A2-NN-NN-FW is a high-performance multi-axis CNC servo drive controller engineered for seamless integration within Bosch Rexroth MTC series motion control architectures. Designed to serve as the central communication hub between CNC machine tools, servo amplifiers, and supervisory control systems, this controller leverages the SERCOS real-time communication protocol to deliver deterministic data exchange across complex multi-axis machining environments. Whether deployed in precision milling centers, turning machines, or multi-spindle drilling platforms, the MTC-P01.2-M2-A2-NN-NN-FW ensures that every axis receives synchronized position, velocity, and torque commands with microsecond-level accuracy.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory CNC cell, the MTC-P01.2-M2-A2-NN-NN-FW operates as the nerve center of the motion control network. Signal acquisition begins at the machine tool spindle and linear axes, where Rexroth IndraDyn servo motors generate encoder feedback that travels through the SERCOS ring back to the controller. The Rexroth HCS02.1E-W0028 servo drive amplifier receives real-time torque and velocity commands from the MTC controller, executing precise interpolation movements across all synchronized axes simultaneously.

At the network infrastructure level, the Rexroth CSB01.1C-SE-ENS-NNN-NN-S-NN-FW SERCOS communication module manages the fiber optic ring integrity, ensuring that data packets arrive within the deterministic cycle window. When the CNC cell requires coordination with peripheral equipment such as tool changers or pallet systems, the Rexroth DKC11.3-040-7-FW digital servo controller handles auxiliary axis positioning through the same SERCOS backbone, eliminating the need for separate communication channels.

For supervisory monitoring, the Rexroth IndraControl VEP 40.4 HMI panel connects to the MTC system via Ethernet TCP/IP, providing operators with real-time visualization of axis positions, following errors, and drive temperatures. This dual-network architecture allows the SERCOS ring to maintain its deterministic performance while the Ethernet layer handles non-time-critical data such as recipe management and production logging.

The Rexroth HMS01.1N-W0054 power supply module ensures stable DC bus voltage across all drives in the SERCOS ring, while the Rexroth NFD03.1-480-016 mains filter protects the entire drive group from power line disturbances that could corrupt communication signals. When integrating with plant-level SCADA systems, the Rexroth IndraControl L40 PLC serves as the gateway between the SERCOS motion network and higher-level Profinet or EtherNet/IP infrastructure, enabling production data to flow from the CNC cell to enterprise resource planning systems.

For applications requiring additional I/O expansion beyond the CNC axes, the Rexroth R-IB IL 24 DI 16 remote I/O module connects through the Inline bus system, collecting signals from proximity sensors, limit switches, and safety interlocks that feed back into the MTC controller logic. The Rexroth IndraMotion MTX 14VRS CNC kernel running within the MTC platform processes these signals alongside the motion program, coordinating tool changes, coolant activation, and workpiece clamping sequences without interrupting the servo loop communication.

Solving Data Isolation in Industrial Sites

Legacy CNC installations frequently suffer from protocol fragmentation, where individual machine tools operate as isolated automation islands with no standardized communication path to central monitoring systems. The MTC-P01.2-M2-A2-NN-NN-FW addresses this challenge by providing a unified SERCOS-based motion network that consolidates all axis drives, auxiliary controllers, and I/O devices under a single deterministic communication framework. This eliminates the data silos that form when each machine uses proprietary point-to-point wiring for servo communication.

Remote diagnostics capability is built into the SERCOS protocol stack, allowing maintenance engineers to monitor drive health parameters, communication error counters, and axis performance metrics from any networked workstation. When a servo amplifier reports excessive following error or temperature warning, the MTC controller immediately propagates this alarm through the network to both the local HMI and the plant SCADA system, enabling predictive maintenance interventions before unplanned downtime occurs.

Production line transparency improves dramatically when the MTC-P01.2-M2-A2-NN-NN-FW is deployed as part of a connected manufacturing cell. Cycle time data, spindle load profiles, and tool wear indicators flow continuously from the SERCOS ring through the Ethernet gateway to manufacturing execution systems. This real-time visibility enables production managers to identify bottlenecks, optimize feed rates, and schedule maintenance windows based on actual machine condition rather than fixed calendar intervals.

System expansion is straightforward within the SERCOS architecture. Adding new axes or auxiliary drives to an existing MTC installation requires only physical connection to the fiber optic ring and configuration through the IndraWorks engineering software. The ring topology automatically discovers new participants and assigns communication addresses, reducing commissioning time from days to hours compared to legacy parallel wiring approaches.

Industrial Connectivity FAQ

Q: What communication latency can be expected on the SERCOS ring with the MTC-P01.2-M2-A2-NN-NN-FW?
A: The SERCOS interface provides deterministic communication with cycle times as low as 250 microseconds. Unlike standard Ethernet networks where latency varies with traffic load, the SERCOS ring guarantees fixed timing for every servo update cycle, ensuring that multi-axis interpolation maintains path accuracy even during complex contouring operations with up to 32 synchronized axes.

Q: Is the MTC-P01.2-M2-A2-NN-NN-FW compatible with both SERCOS II and SERCOS III networks?
A: The MTC platform supports SERCOS II fiber optic communication as its primary motion bus. Integration with SERCOS III Ethernet-based networks is possible through appropriate gateway modules within the Rexroth ecosystem. The controller maintains backward compatibility with existing SERCOS II installations while providing upgrade paths to newer network standards through firmware updates and communication module exchanges.

Q: How does the controller handle network interruptions or communication faults?
A: The MTC-P01.2-M2-A2-NN-NN-FW implements comprehensive fault detection including ring break monitoring, telegram timeout detection, and CRC error counting. Upon detecting a communication fault, the controller executes a configurable safe stop sequence that brings all axes to a controlled standstill. Diagnostic registers store fault history with timestamps, enabling rapid root cause analysis during maintenance interventions.

Q: What warranty and pre-shipment testing procedures apply to this unit?
A: Every MTC-P01.2-M2-A2-NN-NN-FW unit undergoes comprehensive functional testing before shipment, including SERCOS communication verification, axis loop response testing, and thermal cycling validation. The unit ships with a full warranty terms confirmed during quotation covering manufacturing defects and communication interface failures. Our technical team provides commissioning support documentation and network configuration guidance to ensure successful first-time installation.
