Rexroth VT-HACD-DPQ-1-20/V0/1-0-0 Hydraulic Axis Controller for VT-HACD Systems

Rexroth VT-HACD-DPQ-1-20/V0/1-0-0: Industrial Data Link for Hydraulic Axis Control in Smart Factory Networks

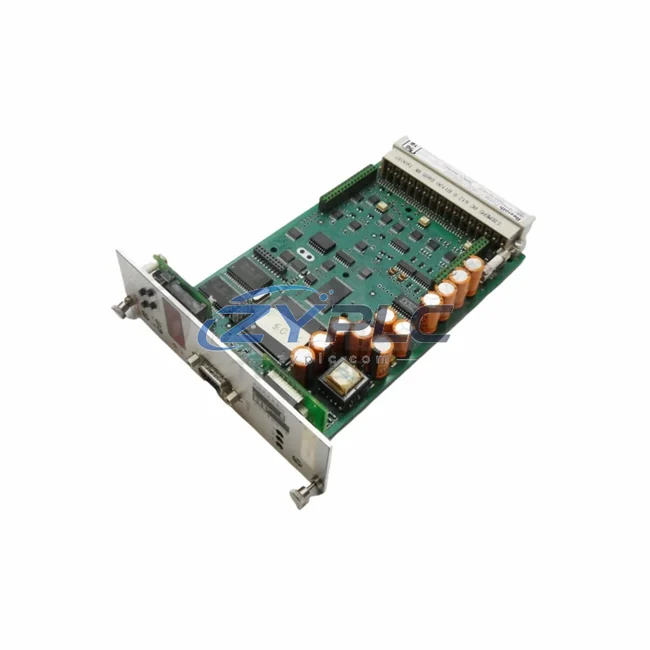

The Rexroth VT-HACD-DPQ-1-20/V0/1-0-0 (Part No. R901054664) is a high-performance proportional hydraulic axis control board engineered by Bosch Rexroth for precision motion control in demanding industrial environments. As a core node in the industrial data chain, this controller bridges the gap between field-level hydraulic actuators and upper-level automation systems — enabling seamless signal acquisition, real-time feedback, protocol-compatible communication, and closed-loop axis positioning across complex smart factory architectures.

In modern industrial sites, the demand for transparent, connected, and diagnostics-ready hydraulic systems has never been greater. The VT-HACD-DPQ-1-20/V0/1-0-0 answers this demand by serving as the intelligent interface between proportional servo valves, position transducers, and the broader automation network — including PLC controllers, HMI panels, SCADA platforms, and remote I/O modules.

Compatibility & Integration Notes

Connected Automation Data Flow

The VT-HACD-DPQ-1-20/V0/1-0-0 sits at the heart of a layered industrial automation architecture. At the field level, it receives position feedback from Rexroth linear position transducers (such as the MTS Temposonics-compatible SSI encoder interface) and issues precise ±10V analog command signals to Rexroth 4WRPH or 4WRKE proportional servo valves, enabling sub-millimeter hydraulic axis positioning.

The control board’s digital I/O lines connect directly to Siemens S7-1500 or S7-300 PLC analog output modules, where the PLC’s motion control program generates setpoint commands and reads back axis status. In parallel, a Beckhoff CX5130 embedded PC running TwinCAT 3 can serve as the motion controller, communicating axis demand values via EtherCAT to an EL4xxx analog output terminal, which then feeds the VT-HACD command input — creating a deterministic, low-latency control loop.

For network-level transparency, a Rexroth IndraControl VAM 10.1 HMI or a Siemens TP1200 Comfort Panel connected via PROFINET to the PLC can display real-time axis position, velocity, pressure, and fault codes sourced from the VT-HACD’s status outputs. This data path — from hydraulic cylinder to HMI screen — typically achieves cycle times under 10ms, meeting the demands of high-speed press and injection molding applications.

At the SCADA level, platforms such as Wonderware InTouch or Ignition SCADA aggregate axis data from multiple VT-HACD nodes across a production line via OPC-UA server running on the PLC or edge gateway. A Moxa MGate MB3170 protocol gateway can further bridge legacy Modbus RTU devices on the same production floor into the unified SCADA data stream, ensuring no data island remains isolated.

For remote diagnostics, a Rexroth IndraWorks DS engineering tool or a Siemens TIA Portal session can access axis parameters, PID tuning values, and fault history logs via the PLC’s Ethernet interface — enabling engineers to diagnose hydraulic axis drift, valve hysteresis, or encoder signal loss without physical site access. An industrial 4G/LTE router (e.g., Robustel R2000) at the cabinet level provides the secure WAN tunnel for this remote access path.

Solving Data Isolation in Industrial Sites

Many industrial hydraulic systems suffer from a fundamental connectivity gap: the hydraulic axis controller operates as a standalone analog device, invisible to the plant’s digital automation backbone. The VT-HACD-DPQ-1-20/V0/1-0-0 directly addresses this challenge through its structured analog and digital I/O architecture, which acts as the translation layer between the physical hydraulic world and the digital factory network.

Protocol Unification: By accepting standard ±10V analog command signals and providing digital fault/enable I/O, the VT-HACD integrates with virtually any PLC platform — Siemens, Beckhoff, Mitsubishi, Omron, or Rockwell — without requiring proprietary fieldbus hardware. Where fieldbus integration is needed, a single analog I/O coupler or gateway module bridges the VT-HACD into PROFIBUS, PROFINET, or EtherCAT networks.

Eliminating Data Islands: Real-time axis position, command tracking error, and valve output data are continuously available on the VT-HACD’s status outputs, feeding the PLC’s data acquisition cycle. This data flows upstream to SCADA historians, enabling production engineers to correlate hydraulic axis performance with product quality metrics — transforming a previously opaque hydraulic system into a transparent, data-rich production asset.

Remote Monitoring and Diagnostics: Fault codes, parameter sets, and axis performance trends stored in the PLC’s data blocks can be accessed remotely via secure VPN, enabling predictive maintenance scheduling and reducing unplanned downtime. Engineers can adjust PID parameters, ramp rates, and position windows remotely — eliminating costly service visits for routine tuning tasks.

Production Line Transparency and System Expansion: The VT-HACD’s modular design supports multi-axis configurations. Multiple VT-HACD-DPQ units can be deployed across a hydraulic press line, each reporting to a central PLC and SCADA system, providing a unified view of all axis positions, velocities, and health states. Adding new axes requires only additional VT-HACD modules and PLC I/O channels — no network infrastructure changes needed.

Pre-Shipment Testing and warranty terms confirmed during quotation: Every VT-HACD-DPQ-1-20/V0/1-0-0 R901054664 unit supplied by ZYPLC undergoes functional verification testing prior to dispatch, confirming analog command response, digital I/O operation, and feedback signal processing. All units are covered by a warranty terms confirmed during quotation, with RFQ-confirmed sourcing available for immediate DHL/FedEx Express shipment worldwide.

Industrial Connectivity FAQ

Q1: What is the communication latency of the VT-HACD-DPQ-1-20/V0/1-0-0 in a PLC-controlled axis loop?
The VT-HACD processes analog command inputs with an internal control cycle typically under 1ms, making it suitable for high-speed closed-loop axis control. End-to-end latency from PLC analog output to hydraulic valve response depends on the PLC scan time (typically 1–10ms for Siemens S7-1500) and the hydraulic system’s mechanical response time.

Q2: Is the VT-HACD-DPQ-1-20/V0/1-0-0 compatible with PROFINET or EtherCAT networks?
The VT-HACD uses analog and digital I/O interfaces natively. Integration with PROFINET or EtherCAT is achieved via analog I/O modules (e.g., Siemens SM532, Beckhoff EL3xxx/EL4xxx) connected to the respective fieldbus network. No direct PROFINET or EtherCAT port is present on the VT-HACD itself.

Q3: How does the VT-HACD support system expansion for multi-axis hydraulic applications?
Each VT-HACD-DPQ unit controls one hydraulic axis independently. For multi-axis systems, additional VT-HACD modules are added in parallel, each connected to its own PLC analog I/O channel. The PLC’s motion control program coordinates all axes, enabling synchronized multi-axis hydraulic motion without additional network hardware.

Q4: What warranty and testing does ZYPLC provide for the VT-HACD-DPQ-1-20/V0/1-0-0?
ZYPLC provides a warranty terms confirmed during quotation on all VT-HACD-DPQ-1-20/V0/1-0-0 R901054664 units. Each unit is functionally tested before shipment to verify analog command response, digital I/O, and feedback signal integrity. Availability is confirmed via RFQ for same-day or next-day DHL/FedEx Express dispatch. Submit your RFQ within 24 hours at plc.sales@zyplc.com or call +86 19859288691.
