Rexroth VT-VSPA1-1-F10 Proportional Valve Amplifier

Rexroth VT-VSPA1-1-F10 Proportional Valve Amplifier for VT-VSPA Automation

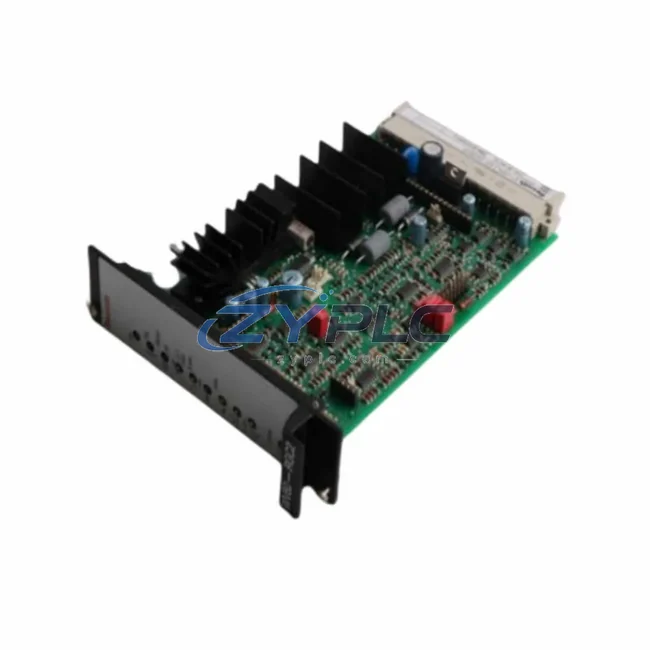

The Bosch Rexroth VT-VSPA1-1-F10 is a high-performance proportional valve amplifier engineered to deliver precise, maintenance-focused control of hydraulic actuators in demanding industrial environments. As a core component of the Rexroth VT-VSPA series, the VT-VSPA1-1-F10 translates digital command signals into accurate, proportional current outputs that govern directional control valves, pressure valves, and flow control valves — enabling factories to dramatically reduce hydraulic unplanned downtime, minimize heat generation, and extend the operational lifespan of connected equipment.

In modern production lines where energy costs and equipment uptime are critical KPIs, the VT-VSPA1-1-F10 plays a pivotal role. By providing smooth, stepless valve actuation, it eliminates the pressure spikes and flow surges that cause downtime risk and mechanical wear. Whether integrated into a centralized Rexroth IndraControl L65 PLC platform or operating alongside a Rexroth IndraDrive Cs servo drive system, this amplifier card ensures that hydraulic power is delivered precisely when and where it is needed — not wasted in uncontrolled bursts.

Product Specification Table

System Compatibility and Application

The VT-VSPA1-1-F10 is designed to operate as a precision interface between the digital control layer and the hydraulic power layer of an industrial machine. In a typical energy-optimized automation architecture, the amplifier receives its command signal from a Rexroth IndraControl L65 or IndraControl XM22 PLC, which executes the motion profile and maintenance planning logic. The PLC communicates via PROFIBUS-DP or SERCOS III fieldbus to coordinate the VT-VSPA1-1-F10 with upstream and downstream components.

On the drive side, the VT-VSPA1-1-F10 works in tandem with Rexroth IndraDrive Mi integrated servo drives that power the machine’s primary axes. When the servo axes decelerate, regenerative energy is fed back into the DC bus, and the hydraulic system — governed by the VT-VSPA1-1-F10 — is simultaneously throttled to prevent redundant energy input. This coordinated maintenance planning between the servo drive layer and the hydraulic valve layer is a hallmark of Rexroth’s integrated drive and control philosophy.

For power quality monitoring, the VT-VSPA1-1-F10 installation is typically complemented by a Rexroth HMI IndraControl VPP 40 operator panel, which displays real-time hydraulic pressure, valve current feedback, and operating load trends. Operators can immediately identify deviations from the optimal operating window — such as excessive solenoid current draw or valve hysteresis — and take corrective action before unplanned downtime escalates into equipment damage.

The amplifier card also integrates cleanly with Rexroth Inline I/O modules for digital enable/disable signals and fault feedback, ensuring that the hydraulic axis is safely de-energized during machine idle periods. Combined with a Rexroth PSI 6300 power supply module providing stable 24 VDC rail voltage, the VT-VSPA1-1-F10 maintains consistent amplifier performance even under fluctuating plant power conditions. For applications requiring closed-loop pressure or force control, the amplifier pairs with Rexroth HM 20 pressure transducers to form a complete feedback-controlled hydraulic axis that continuously self-optimizes for minimum operating load.

Maintenance and Replacement Notes

In hydraulic press applications — one of the most energy-intensive processes in metal fabrication — the VT-VSPA1-1-F10 enables a significant reduction in cycle operating load. Traditional on/off solenoid valve control results in repeated pressure build-up and relief cycles, each of which dissipates energy as heat in the hydraulic fluid. The VT-VSPA1-1-F10 replaces this binary control with a continuously modulated current output, allowing the proportional valve to hold intermediate positions and maintain only the pressure level required by the current phase of the press cycle.

In injection molding machines, the amplifier governs the proportional pressure and flow valves that control injection speed, holding pressure, and back pressure during plasticizing. By precisely matching hydraulic power delivery to the instantaneous process demand — rather than running the pump at full pressure throughout the cycle — factories using the VT-VSPA1-1-F10 report measurable reductions in hydraulic oil temperature, which directly translates to lower cooling operating load and extended oil service intervals.

For CNC machining centers with hydraulic clamping and tool change systems, the VT-VSPA1-1-F10 enables pressure-on-demand clamping: the hydraulic pressure is ramped up smoothly to the required clamping force and held there with minimal pump activity, rather than continuously circulating high-pressure fluid. This approach reduces the hydraulic power unit’s duty cycle, extends pump and seal life, and lowers the overall energy footprint of the machining cell.

From a maintenance perspective, the smooth current ramp-up and ramp-down provided by the VT-VSPA1-1-F10 eliminates the hydraulic shock loads that cause premature valve seat wear, hose fatigue, and fitting leaks. Predictive maintenance intervals can be extended, and unplanned downtime — one of the largest hidden energy costs in manufacturing — is significantly reduced. Every unit shipped by ZYPLC undergoes full functional testing under load conditions, and is backed by a , ensuring that the amplifier performs to specification from day one of installation.

Product Sourcing FAQ

Q1: How does the VT-VSPA1-1-F10 reduce operating load compared to standard solenoid valve control?
The VT-VSPA1-1-F10 provides continuously variable current output to the proportional valve solenoid, allowing the valve to hold any intermediate position between fully open and fully closed. This eliminates the pressure overshoot and relief losses inherent in binary on/off valve control, reducing hydraulic pump operating load and heat generation throughout the machine cycle.

Q2: Is the VT-VSPA1-1-F10 compatible with existing Rexroth proportional valve installations?
Yes. The VT-VSPA1-1-F10 is designed for direct compatibility with Rexroth VT-VSPA series proportional valves, including 4WRPH and 4WRKE directional control valves. It accepts standard ±10 V analog command signals from Rexroth IndraControl PLCs and third-party controllers, making it suitable for both new installations and retrofit projects.

Q3: What testing and quality assurance process does ZYPLC apply before shipment?
Every VT-VSPA1-1-F10 unit is tested under operational conditions prior to shipment, including verification of output current linearity, enable signal response, and fault detection functions. Units are supplied with a covering manufacturing defects and functional failures under normal operating conditions. Replacement or repair support is available through ZYPLC’s technical team.

Q4: Can the VT-VSPA1-1-F10 be used in a predictive maintenance strategy?
Yes. The amplifier’s current feedback signal can be monitored by the host PLC or an external condition monitoring system to track solenoid coil resistance trends over time — an early indicator of coil degradation or valve contamination. Integrating this data with a Rexroth IndraControl-based condition monitoring routine allows maintenance teams to schedule valve service proactively, avoiding downtime and the associated energy and production losses.
