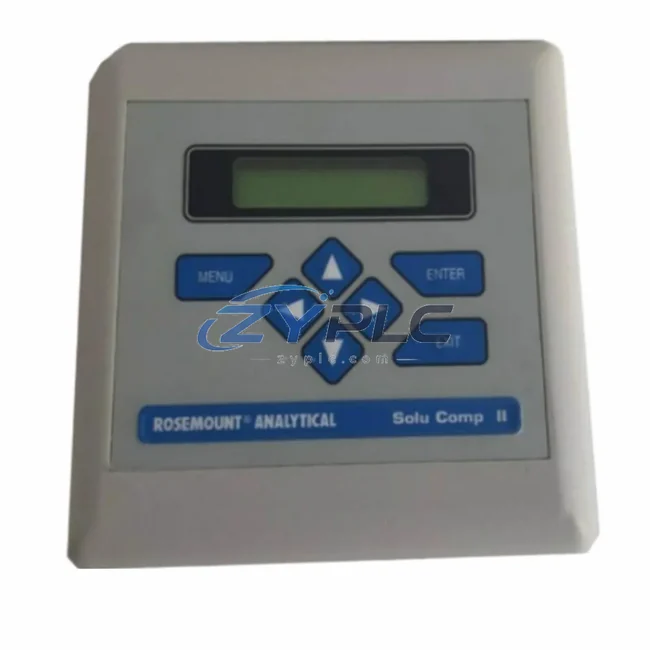

Rosemount 1055-01-10-20-30 Analytical Transmitter

Rosemount 1055-01-10-20-30 Analytical Transmitter: Replacement and Sourcing Information

The Rosemount 1055-01-10-20-30, part of the renowned SoluComp II series by Rosemount Analytical (Emerson), is a dual-input analytical transmitter engineered to deliver high-accuracy process measurement while minimizing operating load across demanding industrial environments. Designed for continuous operation in water treatment, chemical processing, pharmaceutical manufacturing, and power generation facilities, this transmitter plays a central role in reducing unnecessary energy draw from analytical instrumentation loops — a frequently overlooked source of operational inefficiency in modern production lines.

By providing stable, low-drift signal output for parameters such as pH, conductivity, dissolved oxygen, and turbidity, the 1055-01-10-20-30 eliminates the need for repeated manual calibration cycles that consume technician time and interrupt production flow. Its dual-input architecture allows a single unit to replace two independent transmitters, directly reducing panel space, wiring complexity, and standby power consumption across the instrumentation network.

Product Specification Table

System Compatibility and Application

In a fully industrial Automation architecture, the Rosemount 1055-01-10-20-30 functions as the analytical sensing layer that feeds real-time process quality data into the broader control and maintenance planning ecosystem. Its 4–20 mA HART output integrates directly with Emerson DeltaV distributed control system controllers, enabling closed-loop process adjustments that prevent energy-intensive overcorrection in dosing, heating, or aeration systems.

When paired with a Rosemount 3051 pressure transmitter or a Rosemount 8700 magnetic flowmeter, the 1055-01-10-20-30 contributes to a comprehensive process variable monitoring network. Flow and pressure data combined with analytical quality readings allow the DCS to optimize pump duty cycles and reduce unnecessary motor run time — directly lowering kWh consumption per production batch.

On the drive side, variable frequency drives such as the Emerson Control Techniques Unidrive M700 or compatible ABB ACS880 series drives receive setpoint signals derived from the transmitter’s output, modulating motor speed in response to actual process demand rather than fixed schedules. This demand-driven motor control strategy, enabled by accurate analytical feedback from the 1055-01-10-20-30, is one of the most effective methods for reducing unplanned downtime in pump and blower applications.

For facilities running Siemens S7-1500 PLCs or Allen-Bradley ControlLogix platforms, the transmitter’s HART communication capability allows integration via HART multiplexers or smart I/O modules, feeding live analytical data into the PLC’s condition monitoring routines without requiring additional dedicated instrumentation hardware. Complementary Emerson AMS Device Manager software can monitor transmitter health, predict sensor degradation, and schedule maintenance before failures cause unplanned downtime — a key pillar of predictive maintenance strategy.

In multi-loop installations, the dual-input design of the 1055-01-10-20-30 reduces the number of required 24 VDC power supply nodes and associated wiring infrastructure. Fewer powered devices in the field cabinet means lower baseline energy draw and reduced heat generation — both of which contribute to longer service life for adjacent components including Phoenix Contact QUINT power supplies and terminal block assemblies.

HMI visualization of the transmitter’s live readings is typically handled through Emerson ROC800 remote operations controllers or panel-mounted Weintek cMT series HMIs, giving operators immediate visibility into analytical trends without requiring manual field checks — reducing vehicle movement, labor hours, and associated energy costs at the facility level.

Maintenance and Replacement Notes

In water treatment facilities, the Rosemount 1055-01-10-20-30 is commonly deployed to monitor effluent conductivity and pH in real time. Without accurate analytical feedback, dosing pumps and aeration blowers often operate at fixed, conservative rates that consume far more energy than the actual process requires. By providing continuous, reliable measurement, the 1055-01-10-20-30 enables the control system to modulate dosing and aeration in direct proportion to actual load — reducing blower motor load by measurable margins during low-demand periods.

In chemical batch processing, the transmitter’s dual-input capability allows simultaneous monitoring of two critical quality parameters across a single reaction vessel. This eliminates the need to run two separate measurement loops with independent power supplies and signal conditioners, reducing the instrumentation energy footprint of each batch line. Faster, more accurate endpoint detection also shortens batch cycle times, improving overall equipment effectiveness (OEE) and reducing the energy cost per unit of output.

For power generation applications — particularly cooling water and boiler feedwater treatment — the 1055-01-10-20-30 provides the analytical data needed to maintain water chemistry within tight specification bands. Maintaining proper conductivity and pH in boiler systems prevents scale formation, which is a leading cause of heat transfer inefficiency and increased fuel consumption. A single percentage point improvement in boiler efficiency across a large facility translates to significant annual energy cost savings.

The transmitter’s robust IP66/NEMA 4X enclosure ensures reliable operation in harsh outdoor or washdown environments without requiring additional protective housing — eliminating the energy and material cost of supplementary enclosures. Its extended calibration intervals reduce the frequency of maintenance shutdowns, keeping production lines running at full capacity for longer periods and improving the energy efficiency ratio of the overall facility.

All units supplied by ZYPLC are fully tested prior to shipment, with functional verification of analog output, relay operation, and display functionality. Each Rosemount 1055-01-10-20-30 is backed by a warranty terms confirmed during quotation, ensuring that your investment in energy-efficient analytical instrumentation is protected from the moment it enters service.

Product Sourcing FAQ

Q1: How does the Rosemount 1055-01-10-20-30 contribute to operational stability in process plants?
The 1055-01-10-20-30 provides accurate, continuous analytical measurement that enables demand-driven control of energy-intensive equipment such as dosing pumps, aeration blowers, and heating systems. By replacing fixed-schedule operation with feedback-driven control, facilities typically achieve measurable reductions in motor and pump operating load. Its dual-input design further reduces the number of powered instrumentation nodes required per process loop.

Q2: Is the Rosemount 1055-01-10-20-30 compatible with existing PLC and DCS platforms?
Yes. The transmitter outputs a standard 4–20 mA HART signal, which is compatible with virtually all major industrial control platforms including Emerson DeltaV, Siemens S7 series, Allen-Bradley ControlLogix, and Yokogawa CENTUM systems. HART communication enables digital parameter access and diagnostics without additional wiring, making integration into existing architectures straightforward.

Q3: What is the recommended replacement or upgrade path for aging SoluComp II transmitters?
For facilities currently operating earlier SoluComp or Rosemount 1054 series transmitters, the 1055-01-10-20-30 is a direct functional upgrade with improved dual-input capability and enhanced HART diagnostics. Sensor wiring and process connections are typically compatible, minimizing installation time and reducing the energy and labor cost of the upgrade project. ZYPLC can advise on specific compatibility requirements based on your existing sensor types.

Q4: What testing and warranty coverage is provided with this unit?
Every Rosemount 1055-01-10-20-30 supplied by ZYPLC undergoes pre-shipment functional testing covering analog output accuracy, relay operation, display functionality, and communication integrity. Units are inspected for physical condition and shipped with appropriate protective packaging. A warranty terms confirmed during quotation is provided from the date of shipment, covering defects in materials and workmanship. Our technical team is available to support installation, commissioning, and any warranty claims throughout the coverage period.
