Sanyo Denki PMAPA1S6B01 Stepping Motor Driver for PMA

Sanyo Denki PMAPA1S6B01 Stepping Motor Driver for PMA: Compatibility and Replacement Notes

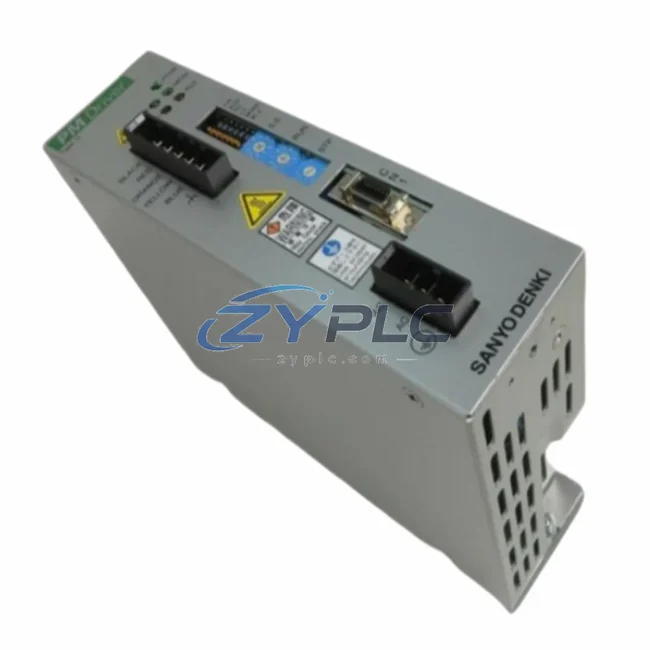

The Sanyo Denki PMAPA1S6B01 is a precision stepping motor driver engineered for seamless integration within the PMA Series control architecture. Rather than functioning as a standalone motion component, this driver is designed to operate as a coordinated execution-layer element within a multi-tier industrial automation system — interfacing directly with upper-level PLCs, motion controllers, I/O expansion modules, and fieldbus communication networks. Its role within the system hierarchy spans from receiving pulse-direction command signals at the control layer down to delivering precise current waveforms to the connected stepping motor at the execution layer, making it a critical link in the full automation chain.

In modern industrial control architectures, the stepping motor driver occupies the execution layer — the final stage where digital control commands are translated into physical motion. The PMAPA1S6B01 achieves this with high-resolution microstepping capability, low-vibration drive waveforms, and a compact form factor suited for panel-mount installation within standard control cabinets. Its electrical interface is compatible with common 5V/24V differential or single-ended pulse inputs, enabling direct connection to a wide range of PLC output modules and motion control cards without additional signal conditioning hardware.

System architects integrating the PMAPA1S6B01 into a layered automation platform benefit from its deterministic response characteristics. When paired with a Sanyo Denki PMA Series stepping motor — such as the 103H7823-0740 or 103H7126-0740 — the driver-motor combination delivers consistent torque curves and positional accuracy across the full speed range. This predictability is essential in applications where multiple axes must be coordinated through a central motion controller, such as a multi-axis gantry system, rotary indexing table, or precision dispensing platform.

Product Specification Table

System Compatibility Notes

The PMAPA1S6B01 achieves its full performance potential when deployed as part of a coordinated control system rather than in isolation. In a typical PMA-based automation cell, the system architecture begins at the control layer with a Mitsubishi MELSEC Q-Series or iQ-R Series PLC — such as the Q06UDEHCPU or R08CPU — issuing high-speed pulse train outputs through a dedicated motion module like the QD75MH4 or RD77MS4. These pulse commands are routed to the PMAPA1S6B01 driver, which amplifies and shapes the current waveform delivered to the connected PMA Series stepping motor.

At the I/O layer, digital input/output modules such as the QX41 or RX40C7 handle sensor feedback, limit switch signals, and alarm interlock wiring. These signals are processed by the PLC CPU and used to generate real-time motion corrections or emergency stop commands that propagate down to the PMAPA1S6B01 within microseconds. This tight integration between the I/O layer and the execution layer is what enables safe, repeatable motion in high-cycle production environments.

At the network layer, EtherNet/IP or PROFIBUS communication gateways — such as the Anybus X-gateway or Moxa MGate series — bridge the PLC control network with supervisory SCADA systems or MES platforms, providing real-time production data visibility without interrupting the deterministic motion control loop. The PMAPA1S6B01 itself does not require a fieldbus connection; its upstream PLC handles all network communication, keeping the driver’s electrical environment clean and interference-free.

Power supply architecture is equally important. A Sanyo Denki or MEAN WELL 48VDC switching power supply — such as the MEAN WELL RSP-500-48 — provides the DC bus voltage for the PMAPA1S6B01, while a separate 24VDC rail powers the PLC I/O modules and control logic. Proper power rail separation prevents switching noise from the driver stage from coupling into the control signal lines, a critical consideration in high-resolution microstepping applications.

At the human-machine interface layer, a Proface GP4000 or Siemens KTP700 HMI panel provides operators with real-time axis position feedback, alarm history, and manual jog control. The HMI communicates with the PLC over Ethernet, and the PLC in turn manages the PMAPA1S6B01 through its pulse output module — maintaining a clean separation between the operator interface layer and the motion execution layer.

For applications requiring redundancy, a hot-standby PLC configuration using a Mitsubishi Q12DCCPU or R16MTCPU redundant CPU module ensures that a CPU failure does not interrupt the motion sequence. The PMAPA1S6B01 continues to receive pulse commands from the standby CPU within the switchover time, maintaining axis position integrity without requiring a full system restart.

Industrial Application Notes

Manufacturing and Assembly Lines: In automotive component assembly and electronics manufacturing, the PMAPA1S6B01 drives precision positioning stages for pick-and-place robots, screw-driving spindles, and conveyor indexing mechanisms. Its microstepping capability reduces mechanical vibration at low speeds, improving placement accuracy and reducing wear on linear guides and ball screws.

Packaging and Labeling Systems: High-speed packaging lines use the PMAPA1S6B01 to control film feed rollers, label applicator heads, and product diverter gates. The driver’s fast pulse response and low-latency alarm output allow the PLC to detect and respond to jams or misfeeds within a single machine cycle, minimizing product waste and downtime.

Process Control and Chemical Dosing: In water treatment and chemical processing plants, the PMAPA1S6B01 drives peristaltic pump heads and valve actuators in precise volumetric dosing applications. The deterministic step-count positioning eliminates the need for external flow meters in many configurations, simplifying the control architecture and reducing instrumentation costs.

Power and Energy Infrastructure: Substation automation panels use stepping motor-driven tap changers and motorized disconnects controlled by the PMAPA1S6B01 in conjunction with IEC 61850-compatible RTUs. The driver’s robust overcurrent and overtemperature protection ensures reliable operation in the thermally challenging environment of outdoor switchgear enclosures.

Mining and Metallurgy: In ore processing and smelting facilities, the PMAPA1S6B01 controls material feed gates, sampling mechanism drives, and furnace electrode positioning systems. Its wide input voltage tolerance and thermal protection make it suitable for the harsh electrical environment of heavy industrial sites where power quality is variable.

Product Compatibility FAQ

Q1: Is the PMAPA1S6B01 compatible with third-party PLCs and motion controllers outside the Sanyo Denki ecosystem?
Yes. The PMAPA1S6B01 accepts standard pulse/direction command signals at both 5V differential (line driver) and 24V single-ended logic levels, making it compatible with pulse output modules from Mitsubishi, Omron, Siemens, Keyence, and other major PLC manufacturers. No proprietary communication protocol is required at the driver level — the upstream PLC or motion controller handles all system-level communication, while the driver responds to universal pulse train commands. This makes the PMAPA1S6B01 a flexible execution-layer component that can be integrated into virtually any existing control architecture without requiring platform migration.

Q2: How does the PMAPA1S6B01 support long-term maintenance and spare parts management in a multi-axis system?
The PMAPA1S6B01’s standardized form factor and connector pinout allow it to be replaced without rewiring the control cabinet, significantly reducing mean time to repair (MTTR) in production environments. Its onboard LED status indicators and alarm output signal enable the PLC to log fault events with timestamps, supporting predictive maintenance workflows. ZYPLC supports RFQ sourcing for the PMAPA1S6B01 and compatible PMA Series motors to support rapid replacement under the, minimizing the risk of extended production downtime due to spare parts lead time.

Q3: What installation and commissioning steps are required when integrating the PMAPA1S6B01 into an existing control system architecture?
Commissioning the PMAPA1S6B01 involves four primary steps: (1) Configure the DIP switches for output current, microstepping resolution, and self-test mode to match the connected motor’s rated current and the application’s positional resolution requirements. (2) Wire the pulse/direction inputs to the PLC’s high-speed output module, ensuring correct differential or single-ended signal level selection. (3) Connect the DC power supply to the driver’s power terminals, verifying that the supply voltage is within the 24–48 VDC operating range and that the power supply’s current rating exceeds the driver’s peak output current. (4) Perform a low-speed jog test through the PLC HMI to verify correct motor rotation direction, alarm output wiring, and limit switch interlock function before enabling full-speed automatic operation. The covers any driver defects identified during this commissioning process.
