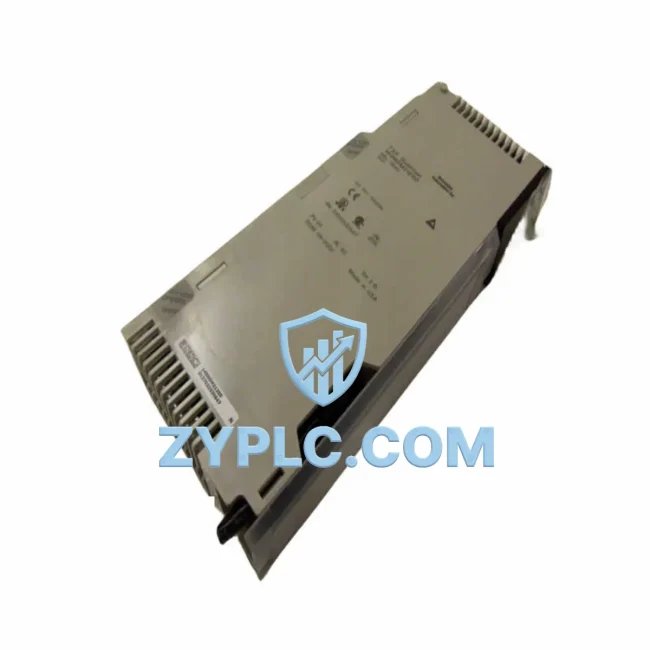

Schneider 140NOM21200 Industrial Network Interface for Modicon S800 Systems

Schneider 140NOM21200 Industrial Network Interface for Modicon S800 Systems: Bridging the Industrial Data Link in Smart Factory Environments

The Schneider Electric 140NOM21200 is a high-performance Modbus communication gateway engineered for seamless integration within Modicon S800 PLC-based automation architectures. Designed to serve as the critical data bridge between field-level devices and upper-level control systems, this industrial network interface module enables reliable, real-time protocol conversion across complex manufacturing environments. Whether deployed in discrete manufacturing, process control, or hybrid smart factory topologies, the 140NOM21200 delivers the communication stability and data transparency that modern industrial operations demand.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 140NOM21200 sits at the heart of the communication architecture, connecting field-level instrumentation to supervisory control layers with minimal latency. Signal acquisition begins at the sensor and actuator layer — temperature transmitters, pressure transducers, and flow meters feed raw process data into the Modicon Quantum or Modicon Premium PLC backplane via the Modicon STB remote I/O modules. The 140NOM21200 then performs protocol conversion, translating Modbus RTU serial signals from legacy field devices into Modbus TCP packets suitable for Ethernet-based supervisory systems.

Upstream, the converted data streams are received by Wonderware InTouch or Ignition SCADA platforms, where operators gain real-time visibility into production KPIs, alarm states, and equipment health. Simultaneously, Schneider Electric Magelis HMI terminals — such as the HMIGTO series — display localized process data at the machine level, enabling operators on the shop floor to monitor and respond to events without relying on centralized control rooms. The 140NOM21200 ensures that data integrity is maintained across this entire chain, from the first signal acquisition point to the final dashboard visualization.

For drive integration, the gateway interfaces with Schneider Electric Altivar ATV312 and ATV630 variable frequency drives, enabling remote speed reference commands and fault diagnostics to be transmitted over the Modbus network. This eliminates the need for dedicated point-to-point wiring between the PLC and each drive, significantly reducing installation complexity and enabling centralized drive management through the SCADA layer. In parallel, Schneider Electric Advantys STB distributed I/O islands extend the reach of the Modbus network to remote production zones, with the 140NOM21200 acting as the network master that coordinates polling cycles and manages data consistency across all connected nodes.

Edge computing integration is also supported through compatibility with Schneider Electric EcoStruxure Machine Advisor and third-party edge gateways, allowing the 140NOM21200 to feed production data into cloud-based analytics platforms for predictive maintenance and OEE optimization. The module’s robust industrial design — rated for wide temperature ranges and high EMI environments — ensures continuous operation in demanding factory conditions, including automotive assembly lines, chemical processing plants, and food and beverage production facilities.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of legacy serial-based equipment alongside modern Ethernet-networked systems. Older Modbus RTU devices — including legacy Modicon 984 PLCs, early-generation Telemecanique sensors, and first-generation HVAC controllers — cannot natively communicate with contemporary TCP/IP infrastructure. This creates data silos where critical process information remains trapped at the device level, invisible to SCADA operators and inaccessible to MES or ERP systems.

The 140NOM21200 directly addresses this challenge by acting as a transparent protocol bridge. It accepts Modbus RTU frames from serial devices and encapsulates them within Modbus TCP packets for onward transmission over standard Ethernet infrastructure. This means that a plant engineer can integrate a 20-year-old flow controller into a modern Ignition SCADA system without replacing the field device or rewiring the control panel — a significant cost saving in brownfield retrofit projects.

Beyond protocol unification, the 140NOM21200 supports production line transparency by enabling continuous data logging and real-time alarm forwarding. When a field device enters a fault state, the gateway immediately propagates the alarm condition upstream to the SCADA alarm management system, triggering operator notifications and initiating automated response sequences in Schneider Electric EcoStruxure Operator Advisor. This closed-loop alarm architecture reduces mean time to repair (MTTR) and minimizes unplanned downtime.

System scalability is another key advantage. As production capacity expands, additional Modbus slave devices can be added to the network without architectural redesign — the 140NOM21200 supports multi-drop serial configurations with up to 247 addressable slave nodes per Modbus RTU segment. Combined with Ethernet uplink redundancy options, this makes the gateway a future-proof investment for growing industrial operations.

Every unit shipped by ZYPLC undergoes pre-shipment functional testing, verifying communication initialization, protocol handshake integrity, and register read/write accuracy before dispatch. Units are packaged in anti-static, shock-resistant materials and shipped via DHL or FedEx Express with full tracking. A 12-month quality warranty covers all hardware defects, with direct technical support available from our engineering team.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 140NOM21200 in a Modbus TCP network?
A: Under normal operating conditions with standard Ethernet infrastructure, the 140NOM21200 achieves Modbus TCP response times of under 10ms for typical register read/write cycles. Actual latency depends on network load, polling frequency configuration, and the number of active slave devices on the Modbus RTU segment. For time-critical applications, it is recommended to segment the Modbus RTU network to reduce polling overhead and optimize scan cycle times.

Q2: Is the 140NOM21200 compatible with third-party SCADA platforms beyond Schneider Electric EcoStruxure?
A: Yes. Because the 140NOM21200 implements standard Modbus TCP and Modbus RTU protocols, it is fully compatible with any SCADA or HMI platform that supports these open standards — including Ignition by Inductive Automation, Wonderware System Platform, Siemens WinCC, and GE iFIX. No proprietary drivers or software licenses are required for third-party integration.

Q3: How does the gateway maintain network stability in high-EMI industrial environments?
A: The 140NOM21200 is designed to Schneider Electric’s industrial hardening standards, incorporating EMI shielding, surge protection on all communication ports, and wide-range power supply tolerance. The module supports RS-485 differential signaling on the serial side, which provides inherent noise immunity over long cable runs. For Ethernet connectivity, shielded Cat6 cabling and industrial-grade managed switches — such as the Schneider Electric ConneXium TCSESM series — are recommended to maintain signal integrity in electrically noisy environments.

Q4: What does the 12-month warranty cover, and what is the return process?
A: The 12-month warranty covers all manufacturing defects, component failures, and communication hardware malfunctions under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events beyond rated specifications, or physical impact. To initiate a warranty claim, contact ZYPLC directly with your order reference and a description of the fault. Our technical team will provide a return merchandise authorization (RMA) number and arrange collection or replacement shipment within 5 business days.
