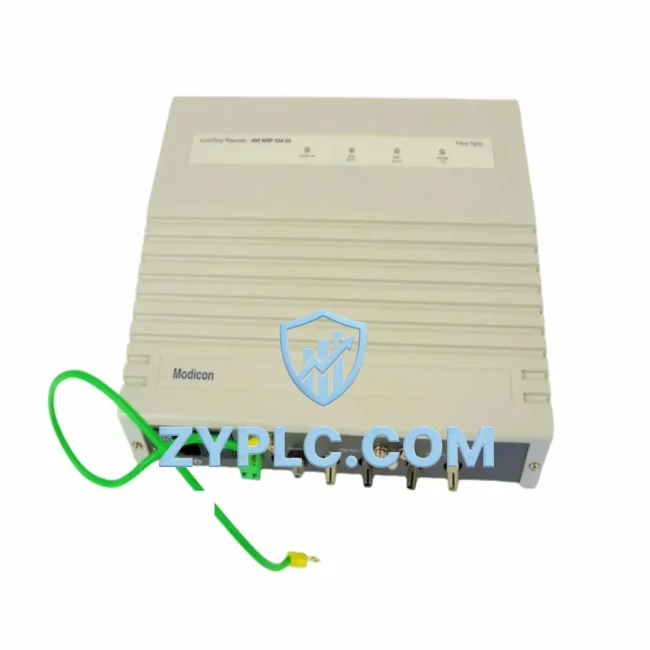

Schneider 490NRP25300 Modbus Plus Fiber Optic Repeater for Quantum

Schneider 490NRP25300 Modbus Plus Fiber Optic Repeater: Industrial Data Link for Smart Factory Connectivity

The Schneider Electric 490NRP25300 is a high-performance Modbus Plus Fiber Optic Repeater engineered for the Modicon Quantum automation platform. Designed to extend and reinforce Modbus Plus network segments across large-scale industrial facilities, this repeater plays a critical role in maintaining seamless, high-integrity data communication between field devices, PLC controllers, remote I/O stations, HMI panels, SCADA systems, and upper-level management networks. In smart factory environments where data latency, signal degradation, and network isolation can directly impact production efficiency, the 490NRP25300 delivers the optical backbone that keeps every node in the automation chain reliably connected.

Industrial sites increasingly demand transparent, real-time data flows from the sensor level all the way to enterprise dashboards. The 490NRP25300 addresses this need by converting electrical Modbus Plus signals into fiber optic transmissions, eliminating electromagnetic interference (EMI) that commonly disrupts copper-based networks in environments with heavy motor drives, welding equipment, and high-voltage switchgear. This makes it an indispensable component in automotive assembly lines, water treatment facilities, oil and gas processing plants, and discrete manufacturing cells where signal integrity is non-negotiable.

Network Communication Table

Connected Automation Data Flow

In a typical Modicon Quantum-based automation architecture, the 490NRP25300 sits at the heart of the Modbus Plus fiber optic segment, bridging the gap between the Modicon Quantum 140CPU65150 processor and distributed field nodes. As process data originates from field-level sensors — including pressure transmitters, flow meters, and temperature probes connected via Modicon STB distributed I/O islands — the signal travels up through the Modbus Plus network, where the 490NRP25300 regenerates and retransmits it optically across extended cable runs that would otherwise suffer from attenuation or EMI corruption.

On the drive side, variable frequency drives such as the Schneider Electric ATV71 series communicate their speed references, fault codes, and energy consumption data back to the Quantum CPU via Modbus Plus. The 490NRP25300 ensures that this bidirectional data exchange remains stable even in electrically noisy environments near motor control centers. Similarly, Modicon Momentum 170ENT11001 Ethernet-to-Modbus Plus bridge modules can be deployed alongside the repeater to extend connectivity into Ethernet-based SCADA segments, allowing operators to monitor drive performance from a centralized Wonderware InTouch or Schneider Electric Vijeo Citect SCADA workstation without signal loss.

Remote I/O racks equipped with Modicon Quantum 140CRA93100 remote I/O adapter modules rely on the integrity of the Modbus Plus fiber segment to deliver real-time analog and digital I/O data to the main CPU. The 490NRP25300 extends the reach of these remote racks beyond the standard copper distance limitations, enabling plant-wide I/O distribution across buildings or across hazardous zones where fiber optic isolation is a safety requirement. HMI panels running on Schneider Electric Magelis XBTGT terminals connect to the Modbus Plus network to display live process variables, alarm states, and trend data — all of which depend on the repeater maintaining a clean, low-latency optical link.

At the SCADA gateway level, Schneider Electric 174CEV30010 Ethernet communication modules interface with the Quantum backplane to bridge Modbus Plus data into Modbus TCP/IP for integration with plant historians, MES platforms, and cloud-based analytics engines. The 490NRP25300 ensures that the upstream Modbus Plus segment feeding these gateway modules remains free of signal degradation, supporting the uninterrupted data pipeline that modern smart factory architectures demand. Edge computing nodes and industrial IoT gateways can then aggregate this data for predictive maintenance analytics, OEE calculation, and remote diagnostics — all anchored by the reliable fiber optic backbone that the 490NRP25300 provides.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is protocol fragmentation and data isolation. Many plants operate a mix of Modbus Plus, Modbus RTU, Modbus TCP/IP, and proprietary fieldbus segments that were installed at different times and by different vendors. Without a reliable repeater infrastructure, Modbus Plus segments are limited in physical length and node count, forcing engineers to either redesign the network topology or accept degraded communication performance.

The 490NRP25300 directly addresses these constraints by extending Modbus Plus segment reach via fiber optic transmission, allowing engineers to connect remote I/O cabinets, satellite control panels, and distributed drive panels that are physically separated from the main PLC room. This eliminates the data islands that form when copper network limits are reached, enabling a unified, plant-wide data fabric where every device — from a simple digital input module to a complex motion controller — participates in the same real-time communication network.

For remote monitoring and diagnostics, the fiber optic backbone established by the 490NRP25300 supports SCADA polling cycles that deliver sub-second process variable updates to operator workstations and remote monitoring centers. Alarm events generated by field devices are transmitted without delay, enabling rapid fault response and reducing unplanned downtime. As production lines scale and new equipment is added, the Modbus Plus fiber segment can be extended further with additional 490NRP25300 repeaters, providing a modular, cost-effective path to network expansion without requiring a complete infrastructure overhaul.

Production line transparency — the ability to see every machine’s status, output rate, and fault history in real time — is a core requirement of Industry 4.0 initiatives. The 490NRP25300 enables this transparency by ensuring that no node in the Modbus Plus network is unreachable due to distance or interference, giving plant managers and process engineers the complete operational picture they need to optimize throughput, reduce waste, and maintain compliance with quality and safety standards.

Industrial Connectivity FAQ

Q1: What is the maximum fiber optic segment length supported by the 490NRP25300?
The 490NRP25300 supports fiber optic cable runs significantly beyond the copper Modbus Plus limit of 450 meters per segment, with exact distances depending on the fiber type and optical budget. Multimode fiber installations typically support runs of up to 2 km per repeater segment, making it suitable for large plant layouts and inter-building connections.

Q2: Is the 490NRP25300 compatible with all Modicon Quantum CPU modules?
Yes. The 490NRP25300 is designed to operate within the Modbus Plus network architecture supported by the full range of Modicon Quantum CPU modules, including the 140CPU31110, 140CPU43412A, and 140CPU65150. It functions as a transparent network repeater, requiring no changes to the existing PLC program or network configuration.

Q3: How does the 490NRP25300 contribute to network stability in high-EMI environments?
By converting Modbus Plus electrical signals to fiber optic transmissions, the 490NRP25300 provides complete galvanic isolation between network segments. This eliminates ground loop interference, common-mode noise, and EMI coupling that frequently disrupt copper-based Modbus Plus networks in environments with large motor drives, welding robots, and high-frequency switching equipment.

Q4: What quality assurance and warranty coverage is provided with the 490NRP25300?
Every 490NRP25300 unit supplied by ZYPLC undergoes functional testing prior to dispatch to verify communication integrity and optical performance. A 12-month warranty is included, covering manufacturing defects and operational failures under normal industrial use conditions. Our technical team provides pre-sales compatibility consultation and post-sales support to ensure seamless integration into your Modbus Plus network architecture.
