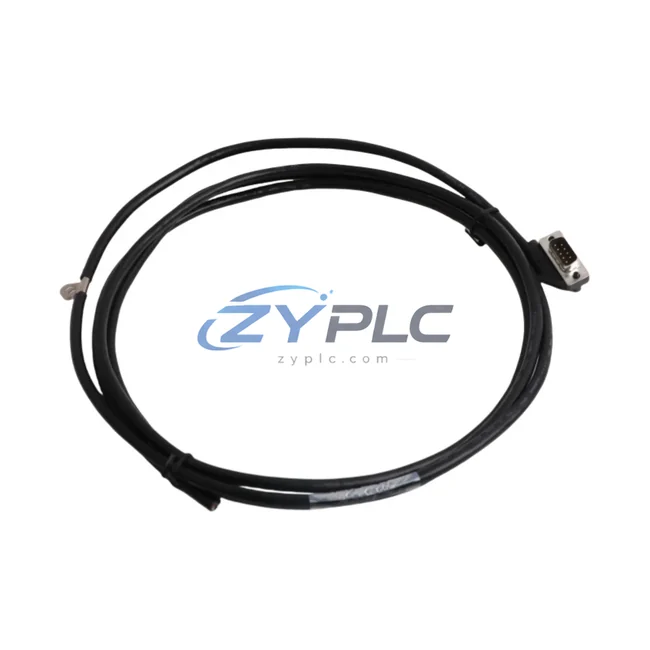

Schneider 990NAD21110 Network Drop Module

Schneider 990NAD21110 Network Drop Module: Precision Control for Modicon Automation

The Schneider Electric 990NAD21110 is a Modbus Plus network drop cable module engineered for high-reliability, energy-conscious industrial automation environments. Designed to integrate seamlessly within the Modicon control architecture, this drop module serves as a critical link between field-level devices and the Modbus Plus trunk cable, enabling deterministic, low-latency data exchange that directly supports reduced idle operating load and tighter production cycle control.

In modern manufacturing facilities where energy efficiency is a measurable KPI, every component in the control network plays a role. The 990NAD21110 minimizes signal degradation and retransmission overhead on the Modbus Plus bus, ensuring that PLCs such as the Modicon M340 and Modicon Quantum series spend fewer CPU cycles on communication error recovery and more on executing precise motor control and I/O sequencing commands. This translates directly into reduced dwell time, lower reactive energy draw, and improved overall equipment effectiveness (OEE).

Product Specification Table

System Compatibility and Application

The 990NAD21110 operates at the physical and data-link layer of the Modbus Plus network, a peer-to-peer token-passing protocol that enables up to 64 nodes to share a single trunk without a central master consuming continuous polling energy. When paired with a Modicon TSX Quantum 140CPU65160 or a Modicon M340 BMXP342020 processor module, the drop cable ensures that each node — whether a variable frequency drive (VFD), a remote I/O rack, or an HMI terminal — receives its token slot with microsecond-level precision, eliminating the unplanned downtime associated with collision-based or polling-heavy protocols.

In a typical energy-optimized production cell, the 990NAD21110 connects field devices such as Altivar 71 or Altivar 312 variable speed drives back to the Modicon PLC backbone. These drives regulate motor speed in real time based on load demand signals transmitted over the Modbus Plus network, enabling soft-start sequences and dynamic speed adjustment that can help restore stable operation when a compatible replacement is required. The integrity of this communication link — which the 990NAD21110 directly supports — is therefore a prerequisite for any meaningful drive-based energy saving strategy.

Beyond drive control, the drop module also supports connectivity for Modicon STB NIP 2212 distributed I/O network interface modules and Modicon AS-B827-001 remote I/O adapters, extending the condition monitoring and control reach to individual machine cells without requiring additional wiring infrastructure. Power monitoring devices such as the PowerLogic PM5350 energy meter can be integrated into the same Modbus Plus segment, providing real-time kWh, power factor, and harmonic distortion data that feeds back into the PLC’s maintenance planning logic.

For HMI visibility, Magelis XBTGT5330 operator panels connected via the same Modbus Plus network give line operators immediate access to operating load dashboards, alarm states, and drive status — enabling faster human response to inefficiency events without requiring a separate SCADA polling cycle that would add unnecessary network load.

Maintenance and Replacement Notes

Consider a bottling line running three conveyor zones, each driven by an Altivar 71 VFD. Without a reliable Modbus Plus drop connection, the PLC cannot deliver real-time speed references to each drive, forcing operators to run motors at fixed maximum speed regardless of actual product flow demand. With the 990NAD21110 ensuring a clean, low-impedance drop connection, the Modicon PLC can implement demand-based speed profiling: slowing conveyors during accumulation phases, ramping up only when downstream stations are clear. This single optimization, enabled by reliable network connectivity, can reduce conveyor motor load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

Predictive maintenance also benefits directly from network integrity. When the 990NAD21110 maintains consistent communication between the Modicon processor and field-level devices, diagnostic data — motor current signatures, drive fault codes, I/O response times — flows continuously to the PLC historian. Maintenance teams using this data can identify bearing wear, belt slip, or cooling fan degradation weeks before failure, avoiding unplanned downtime that typically results in energy-intensive emergency restart sequences and production catch-up overtime.

Inventory availability of the 990NAD21110 is maintained to support rapid replacement in critical production environments. All units undergo full functional testing prior to shipment, verifying signal integrity, connector continuity, and bus termination compliance. This ensures that a network drop replacement does not introduce new communication errors that could destabilize the maintenance planning logic running on the connected Modicon system. Every unit ships with a warranty terms confirmed during quotation, providing procurement teams with the confidence to maintain lean spare-parts inventories without carrying excessive safety stock.

Product Sourcing FAQ

Q1: How does the 990NAD21110 contribute to operational stability in a Modbus Plus network?
The 990NAD21110 provides a low-loss physical connection between field devices and the Modbus Plus trunk. By maintaining signal integrity, it eliminates retransmission cycles that consume PLC processing time and delay control commands to energy-regulating devices such as VFDs and soft starters. Faster, more reliable command delivery means drives respond to load changes more quickly, reducing the duration of inefficient operating points.

Q2: Is the 990NAD21110 compatible with current Modicon PLC platforms?
The 990NAD21110 is designed for the Modbus Plus protocol and is compatible with legacy and mid-generation Modicon platforms including the Quantum, Premium, and 984 series. For newer Modicon M580 or M340 systems using Ethernet-based communication, a protocol gateway or legacy coprocessor module may be required. We recommend confirming your network topology before ordering.

Q3: What is the recommended replacement procedure to avoid production disruption?
Replacement should be performed during a scheduled maintenance window. Disconnect the drop cable from the trunk T-connector, verify the new 990NAD21110 connector pins are clean and undamaged, reconnect, and confirm node communication is restored via the PLC programming software before resuming production. Pre-testing the replacement unit on a bench setup prior to installation is strongly recommended.

Q4: What does the warranty terms confirmed during quotation cover, and how is it supported?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. All units are tested prior to shipment to verify electrical and communication performance. In the event of a warranty claim, contact our support team with the order reference and fault description. Replacement or repair will be coordinated to minimize your production downtime.
