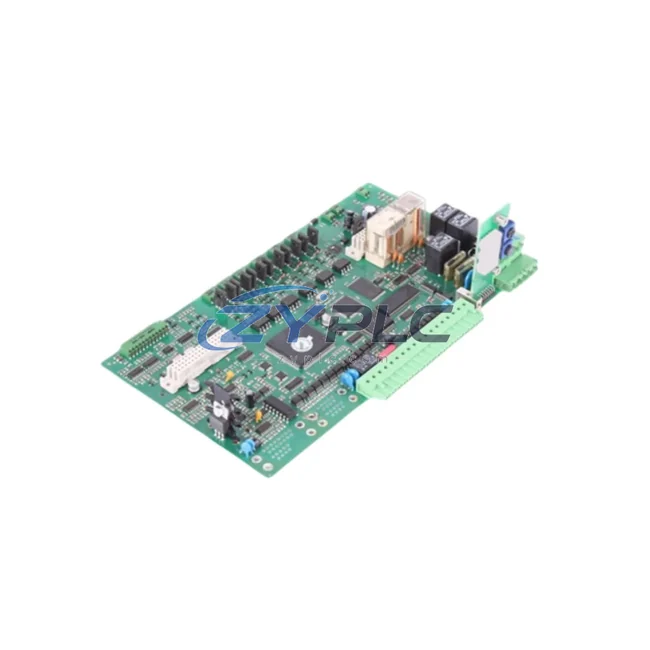

Schneider A.F.038.5/01 Modbus Communication Gateway: Industrial Data Link for Altivar Drive Systems

The Schneider Electric A.F.038.5/01 is a dedicated Modbus communication gateway engineered for seamless integration of Altivar variable speed drives into industrial automation networks. As modern smart factories demand real-time visibility across every layer of the production floor, this gateway serves as a critical bridge between field-level drive systems and upper-level control and monitoring platforms. Whether connecting to a Modicon M340 PLC, a Vijeo Citect SCADA system, or a distributed remote I/O rack, the A.F.038.5/01 ensures that drive status, speed references, fault codes, and energy consumption data flow reliably across the network without interruption.

In a typical smart factory deployment, the A.F.038.5/01 sits between the Altivar ATV312 or ATV630 variable frequency drive and the plant-wide Modbus RTU or Modbus TCP/IP backbone. Field signals from motor encoders, current sensors, and thermal probes are processed within the drive and then transmitted upstream through this gateway to the control layer. A Modicon M580 PAC or a Schneider Electric SoMachine-based controller receives this data in real time, enabling closed-loop speed regulation, torque control, and predictive maintenance scheduling without manual intervention.

The gateway’s protocol conversion capability is particularly valuable in brownfield environments where legacy serial Modbus RTU devices must coexist with modern Ethernet-based architectures. By translating RS-485 Modbus RTU frames into Modbus TCP/IP packets, the A.F.038.5/01 allows older Altivar 71 drives and ATV58 units to participate in contemporary IIoT data pipelines alongside newer Altivar Process ATV630 and ATV930 drives. This eliminates the need for costly drive replacements and extends the operational life of existing field assets.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully connected Altivar drive network, the A.F.038.5/01 gateway anchors the communication chain that links field devices to supervisory systems. Starting at the signal acquisition layer, current transformers and vibration sensors mounted on motor housings feed analog data into the Altivar ATV630 drive’s onboard I/O terminals. The drive processes this data and makes it available over its Modbus port, where the A.F.038.5/01 picks it up and forwards it to the plant Ethernet backbone.

Upstream, a Modicon M580 PAC running Unity Pro XL logic receives drive parameters — including output frequency, motor current, DC bus voltage, and active fault codes — at scan rates as low as 10 milliseconds. This data is simultaneously mirrored to a Magelis GTO advanced panel HMI installed at the local control cabinet, giving operators a real-time graphical view of drive performance without leaving the production floor. For remote monitoring, the same data stream is forwarded to an EcoStruxure Machine Advisor edge gateway, which aggregates drive telemetry from multiple Altivar ATV930 units across the facility and pushes it to a cloud-based SCADA dashboard.

In multi-drive applications such as conveyor systems or pump stations, the A.F.038.5/01 supports daisy-chained Modbus RTU topologies where up to 32 Altivar ATV312 drives share a single RS-485 segment. Each drive is assigned a unique Modbus node address, and the gateway polls each node sequentially, consolidating the responses into a single Modbus TCP/IP data stream for the Modicon M340 controller. This architecture significantly reduces wiring complexity and allows the Vijeo Designer-based HMI to display individual drive status for every node on a single process mimic screen.

For applications requiring integration with third-party systems, the A.F.038.5/01 can be paired with a Moxa MGate MB3180 protocol converter or a Schneider Electric ConneXium managed industrial Ethernet switch to bridge Modbus data into PROFIBUS DP or DeviceNet segments. This makes it possible to incorporate Altivar drives into Siemens S7-300 or Allen-Bradley ControlLogix control architectures without replacing the drives themselves, preserving capital investment while enabling cross-platform data visibility.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A production line may include Altivar ATV58 drives installed in the 1990s running proprietary serial protocols alongside modern ATV930 drives with native EtherNet/IP support. Without a capable gateway like the A.F.038.5/01, these devices exist as data islands — visible to their local controllers but invisible to the plant-wide SCADA system and inaccessible to remote maintenance teams.

The A.F.038.5/01 resolves this by providing a standardized Modbus interface that abstracts the underlying drive communication into a consistent register map. Plant engineers can configure the gateway using Schneider Electric’s SoMove drive configuration software, mapping drive parameters to specific Modbus holding registers that the SCADA system can poll on a defined schedule. This eliminates the need for custom protocol drivers and reduces integration time from weeks to days.

For remote diagnostics, the gateway enables maintenance engineers to read drive fault histories, check motor thermal states, and issue speed reference commands from a remote EcoStruxure Operations Advisor workstation without dispatching a technician to the field. Alarm conditions — such as overcurrent trips, phase loss faults, or communication timeouts — are automatically forwarded to the SCADA alarm management system, where they trigger SMS or email notifications to on-call maintenance staff. This capability is especially valuable in unmanned substations, water treatment facilities, and offshore pump stations where physical access is costly or time-consuming.

System expansion is equally straightforward. When a new production line is added, additional Altivar drives can be connected to the existing Modbus segment and assigned new node addresses without modifying the gateway configuration. The Modicon M580 controller’s Unity Pro XL project simply adds new function blocks for the additional drives, and the SCADA system’s tag database is updated to include the new data points. This scalability makes the A.F.038.5/01 a long-term investment that grows with the facility rather than becoming obsolete as the network expands.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, including Modbus communication verification, register read/write validation, and physical interface inspection. Units are shipped with original manufacturer packaging and documentation, and all sales are backed by a warranty terms confirmed during quotation covering manufacturing defects and communication failures under normal operating conditions.

Industrial Connectivity FAQ

Q: What is the maximum communication distance supported by the A.F.038.5/01 on an RS-485 Modbus RTU network?
A: The RS-485 interface supports cable runs of up to 1,200 meters at standard baud rates (9600–19200 bps). For longer distances or noisy industrial environments, a signal repeater or fiber optic media converter is recommended to maintain signal integrity.

Q: Is the A.F.038.5/01 compatible with Altivar drives using CANopen or DeviceNet protocols?
A: The A.F.038.5/01 is natively designed for Modbus RTU and Modbus TCP/IP communication. For CANopen or DeviceNet-equipped Altivar drives, a separate protocol adapter card — such as the VW3A3608 for CANopen or VW3A3609 for DeviceNet — must be installed in the drive before connecting to the gateway.

Q: How does the gateway handle network instability or communication timeouts?
A: The A.F.038.5/01 includes configurable watchdog timers that detect communication loss and trigger a predefined safe-state response in the connected Altivar drive — typically a controlled deceleration to zero speed. This prevents uncontrolled drive behavior during network outages and ensures process safety in critical applications.

Q: What warranty and support terms apply to units purchased through ZYPLC?
A: All A.F.038.5/01 units sold by ZYPLC carry a warranty terms confirmed during quotation from the date of shipment. Warranty coverage includes manufacturing defects and communication interface failures under normal operating conditions. Pre-shipment testing documentation is available upon request, and technical support is accessible via email or phone throughout the warranty period.
