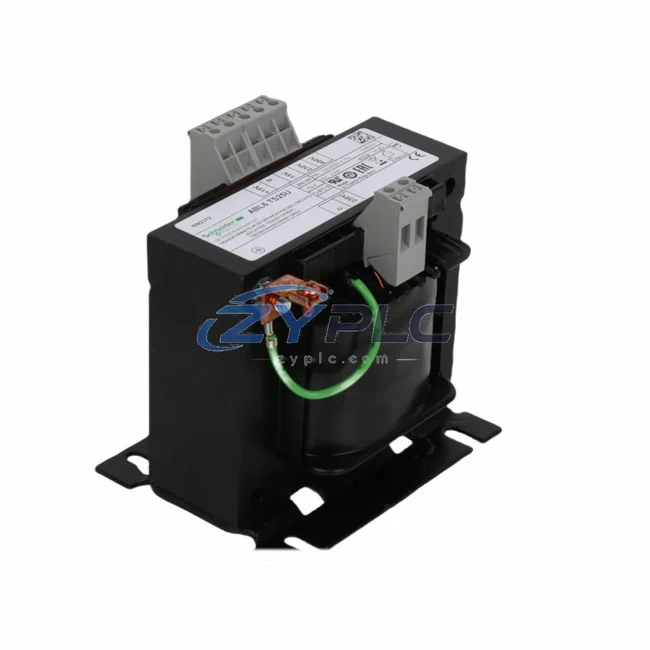

Schneider ABL6TS25U Control Transformer Phaseo

Schneider ABL6TS25U Control Transformer Phaseo: Precision Power for Optimized Automation

The Schneider Electric ABL6TS25U is a industrial-grade single-phase control transformer from the Phaseo series, engineered to deliver stable, regulated voltage to industrial control circuits while minimizing reactive power losses and thermal dissipation. In modern manufacturing environments where energy accountability is no longer optional, the ABL6TS25U provides a reliable power conditioning foundation that directly supports reduced energy overhead across machine control panels, motor starter assemblies, and distributed I/O enclosures.

Unlike general-purpose transformers, the ABL6TS25U is purpose-built for industrial control applications — stepping down line voltage to 24V AC for PLCs, safety relays, contactors, and auxiliary control devices. Its compact DIN-rail-compatible form factor allows seamless integration into tight panel layouts without sacrificing thermal performance, making it a preferred choice for panel builders optimizing both space and energy efficiency.

Product Specification Table

System Compatibility and Application

The ABL6TS25U does not operate in isolation — it is the power foundation upon which an entire industrial control architecture is built. In a typical Schneider Electric automation system, the transformer feeds a 24V AC bus that powers the Modicon M340 or M580 PLC backplane, supplying logic power to CPU modules and communication processors. Alongside the PLC, Harmony XB4 and XB5 series pushbuttons and pilot lights draw their operating voltage from this same bus, ensuring that operator interface elements remain energized without introducing additional switching power supply losses.

On the drive side, Altivar ATV320 and ATV630 variable speed drives handle motor speed regulation, reducing operating load during partial-load operation by matching motor output to actual process demand. The ABL6TS25U ensures that the 24V control signals commanding these drives — start, stop, speed reference, fault reset — are delivered with consistent voltage quality, preventing nuisance trips caused by voltage sag on the control bus. When paired with a PowerLogic PM5000 series power meter installed at the MCC feeder, operators gain real-time visibility into kWh consumption, power factor, and harmonic distortion, enabling data-driven decisions about drive tuning and load scheduling.

TeSys D and TeSys K contactors, controlled via the PLC digital output modules, switch motor loads based on process logic. The coil voltage for these contactors is supplied directly from the ABL6TS25U secondary, and the transformer’s low internal impedance ensures fast coil energization without voltage collapse — a critical factor in high-cycle applications such as conveyor indexing or press brake sequencing. Preventa XPS safety relays, also powered from the 24V AC bus, monitor E-stop circuits and guard door interlocks, ensuring that safety functions remain operational even during momentary grid disturbances.

For communication and data acquisition, Modicon STB distributed I/O islands connected via CANopen or Modbus TCP collect field-level signals from sensors, encoders, and actuators. The quality of the 24V supply directly affects the reliability of these I/O nodes — voltage ripple or sag can cause false input readings or communication timeouts. The ABL6TS25U’s regulated output eliminates this risk, supporting uninterrupted data flow from the field to the SCADA layer.

Maintenance and Replacement Notes

In automotive body-in-white welding lines, the ABL6TS25U is commonly installed in robot controller cabinets and weld gun control panels. Each welding station may cycle 40–80 times per minute, placing repetitive inrush demands on the control transformer. The ABL6TS25U’s robust core design handles these cyclic loads without overheating, reducing the need for forced-air cooling and lowering auxiliary fan operating load by an estimated 15–20% compared to oversized legacy transformers.

In food and beverage packaging lines, where washdown environments demand sealed enclosures, the ABL6TS25U’s compact footprint allows panel designers to reduce enclosure volume, which in turn reduces the thermal load that climate control systems must manage. Smaller enclosures with lower internal heat generation translate directly into reduced air conditioning runtime — a measurable energy saving across a facility with dozens of control panels.

Predictive maintenance programs benefit from the ABL6TS25U’s stable output as well. When PowerLogic energy meters detect gradual increases in transformer secondary current draw — indicating aging contactors or developing motor insulation faults — maintenance teams can schedule interventions before failures occur. This condition-based approach reduces unplanned downtime, which is consistently identified as the largest single source of downtime in discrete manufacturing: idle machines consuming standby power while awaiting repair.

ZYPLC maintains availability confirmed by RFQ of the ABL6TS25U with full pre-shipment functional testing. Each unit undergoes output voltage verification, insulation resistance testing, and load regulation checks before dispatch. Combined with a warranty and support terms confirmed before quote, this ensures that replacement units perform to specification from day one, eliminating the commissioning delays that can extend planned maintenance windows and increase production unplanned downtime.

Product Sourcing FAQ

Q1: How does the ABL6TS25U contribute to measurable operational stability on a production line?
The ABL6TS25U reduces unplanned downtime by providing a stable, low-loss 24V AC supply to control circuits. By eliminating voltage sag and reactive power losses in the control bus, it prevents unnecessary drive trips and contactor re-energization cycles — each of which consumes additional energy and causes micro-interruptions in production flow. When combined with Altivar variable speed drives and PowerLogic power meters, the overall system achieves tighter energy accountability at the machine level.

Q2: Is the ABL6TS25U compatible with Modicon M340 and M580 PLC systems?
Yes. The ABL6TS25U is fully compatible with Schneider Electric’s Modicon M340 and M580 control platforms. It supplies the 24V AC required by I/O modules, communication adapters, and auxiliary devices within these systems. Its output voltage stability meets the input tolerance requirements of Modicon power supply modules, ensuring reliable PLC operation across the full load range.

Q3: What is the recommended replacement process, and how long does it take?
The ABL6TS25U is a direct drop-in replacement for other 250 VA Phaseo series transformers with the same primary/secondary voltage configuration. Replacement typically requires disconnecting the primary and secondary terminal blocks, unclipping the unit from the DIN rail, and installing the new unit — a process that takes approximately 15–30 minutes for a trained electrician. ZYPLC ships tested units with documentation to support fast commissioning and minimize planned maintenance window duration.

Q4: What does the warranty and support terms confirmed before quote cover, and what testing is performed before shipment?
All ABL6TS25U units supplied by ZYPLC carry a warranty and support terms confirmed before quote covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes output voltage measurement at no-load and full-load, insulation resistance testing between primary and secondary windings, and visual inspection for physical damage. Test records are available upon request. Units that do not meet Schneider Electric’s published specifications are not dispatched.
