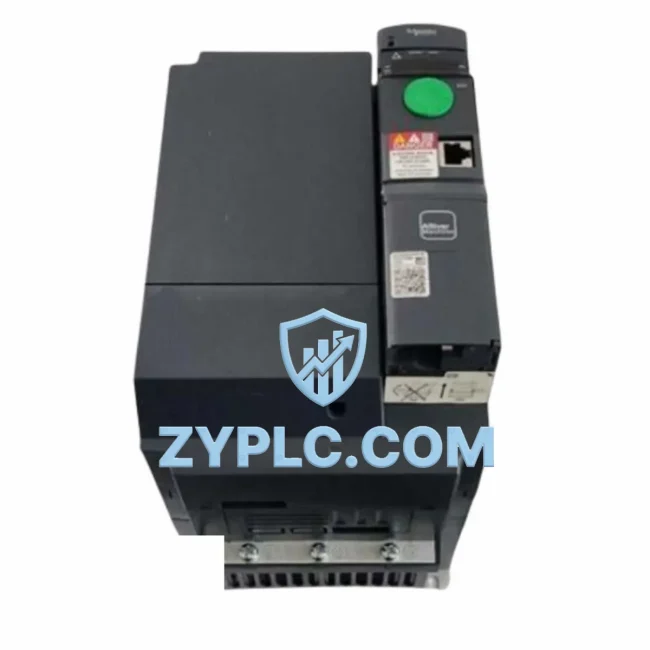

Schneider ATV320U75N4C Industrial Network Interface for Altivar 320

Schneider ATV320U75N4C Industrial Network Interface for Altivar 320 Systems

The Schneider Electric ATV320U75N4C is a high-performance 7.5 kW variable speed drive from the Altivar 320 series, engineered to serve as a critical industrial network interface node within modern smart factory architectures. Operating on a 380–500V three-phase supply, this drive integrates natively with Modbus RTU, CANopen, and Industrial Ethernet communication protocols, enabling seamless data exchange across the full automation stack — from field-level sensors and actuators to PLC controllers, SCADA platforms, and cloud-based MES systems.

In today’s connected manufacturing environment, the ATV320U75N4C is far more than a motor controller. It functions as an intelligent gateway node that bridges the gap between operational technology (OT) and information technology (IT), delivering real-time drive status, energy consumption data, fault diagnostics, and process variables directly into the plant’s digital data fabric.

Network Communication Table

Connected Automation Data Flow

The ATV320U75N4C sits at the heart of a layered industrial communication architecture. At the field level, it receives analog and digital signals from Schneider Electric Harmony XB5 pushbutton stations and Telemecanique OsiSense XS inductive proximity sensors, translating physical process states into digital drive commands. These signals are processed locally within the drive’s embedded logic controller, which supports simple STO (Safe Torque Off) safety functions without requiring an external safety relay module.

Moving up the network hierarchy, the ATV320U75N4C communicates over Modbus RTU via its RS-485 port to a Schneider Electric Modicon TM221C PLC, transmitting real-time speed references, output frequency, motor current, and drive fault codes. The PLC aggregates this data alongside inputs from Schneider Electric TM3 remote I/O expansion modules, building a comprehensive picture of the production line’s operational state.

For plants running an EcoStruxure Machine SCADA Expert or Wonderware InTouch HMI environment, the ATV320U75N4C can be connected via an optional VW3A3616 EtherNet/IP communication card, enabling full Ethernet-based integration. This allows operators at the Magelis GTU HMI terminal to monitor drive parameters, adjust speed setpoints, and acknowledge faults without leaving the control room. The same Ethernet backbone carries data to the plant’s Schneider Electric EcoStruxure Plant Advisor edge analytics platform, where energy KPIs and predictive maintenance alerts are generated automatically.

In multi-drive applications — such as coordinated conveyor systems or multi-pump booster stations — the ATV320U75N4C operates alongside Altivar 320 ATV320U40N4C (4 kW) and ATV320U15N4C (1.5 kW) drives on a shared CANopen network, with the Modicon M241 PLC acting as CANopen master. This topology enables synchronized speed control, load sharing, and centralized fault management across all drives from a single engineering tool — EcoStruxure Machine Expert (SoMachine).

At the top of the data chain, process historians and MES platforms receive structured drive data via OPC-UA gateways such as the Moxa MGate MB3480 Modbus-to-Ethernet gateway, ensuring that production records, energy consumption logs, and maintenance histories are captured with full timestamp accuracy for compliance and continuous improvement programs.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy manufacturing environments is protocol fragmentation — where older field devices speak proprietary or serial protocols that cannot communicate directly with modern Ethernet-based SCADA and MES systems. The ATV320U75N4C addresses this directly through its multi-protocol architecture. Its native Modbus RTU port allows integration with legacy PLCs and DCS systems, while optional Ethernet communication cards unlock full EtherNet/IP and Modbus TCP connectivity for next-generation network infrastructure.

Data silos — where drive performance data remains trapped at the device level and never reaches plant management systems — are eliminated through the drive’s transparent parameter mapping. Every operational variable, from output frequency and motor torque to DC bus voltage and thermal state, is addressable via standard Modbus register maps, making integration with any SCADA platform straightforward without custom middleware.

Remote monitoring and diagnostics are fully supported. Maintenance engineers can access the ATV320U75N4C’s fault history, operating hours, and energy consumption data remotely via the plant’s Ethernet network, reducing unplanned downtime and enabling condition-based maintenance strategies. When a fault occurs — whether an overcurrent trip, thermal overload, or communication timeout — the drive generates a structured alarm that propagates immediately to the SCADA alarm management system, triggering the appropriate maintenance workflow.

For production line transparency, the ATV320U75N4C supports real-time energy metering, allowing plant managers to track motor energy consumption per production batch and identify inefficiencies. This data feeds directly into energy management dashboards, supporting ISO 50001 compliance and sustainability reporting initiatives. System expansion is equally straightforward: additional drives, I/O modules, and communication nodes can be added to the existing Modbus or CANopen network without architectural changes, protecting the initial infrastructure investment as production capacity grows.

Industrial Connectivity FAQ

Q1: What communication protocols does the ATV320U75N4C support natively, and can it connect to EtherNet/IP networks?
The ATV320U75N4C natively supports Modbus RTU (RS-485) and CANopen. EtherNet/IP and Modbus TCP connectivity are available through optional plug-in communication cards (e.g., VW3A3616 for EtherNet/IP or VW3A3608 for Modbus TCP/IP), allowing the drive to integrate into virtually any industrial Ethernet architecture without replacing the base unit.

Q2: How does the drive handle communication latency in time-sensitive SCADA applications?
The ATV320U75N4C’s Modbus RTU interface supports baud rates up to 19,200 bps with configurable response timeouts, delivering cycle times well within the requirements of most SCADA polling architectures. For lower-latency applications, the optional Ethernet communication card enables sub-10ms process data exchange over EtherNet/IP, suitable for coordinated multi-drive control and real-time HMI updates.

Q3: Is the ATV320U75N4C compatible with third-party PLC and SCADA systems, or is it limited to Schneider Electric ecosystems?
The drive’s open standard protocol support — Modbus RTU, CANopen, and optional EtherNet/IP — ensures compatibility with PLCs and SCADA systems from Siemens, Rockwell Automation, Mitsubishi, Omron, and other major vendors. Standard Modbus register maps are fully documented, enabling integration without proprietary drivers or software licenses.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every ATV320U75N4C unit is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and component failures under normal operating conditions. Prior to dispatch, each unit undergoes functional verification including power-on testing, communication port validation, and parameter integrity checks, ensuring that the drive arrives ready for immediate commissioning in your application.

—
