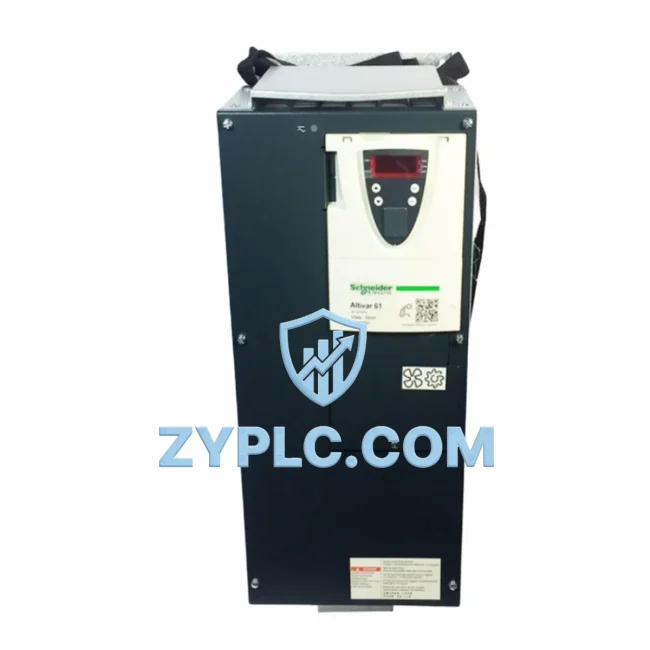

The Schneider Electric ATV61HD37N4 is a 37kW (50HP) variable frequency drive engineered for seamless integration within the Altivar 61 control system architecture. In industrial environments where motor control precision, system-level coherence, and long-term operational reliability are non-negotiable, the ATV61HD37N4 occupies a critical position in the drive layer — bridging the command signals from the control tier with the mechanical execution of three-phase induction motors. Whether deployed in a new automation project or as a validated replacement in an existing ATV61 installation, this drive delivers the architectural consistency that system engineers and maintenance teams depend on.

At ZYPLC, every ATV61HD37N4 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-Month Warranty — giving procurement teams and plant engineers the confidence to specify this drive without compromise.

Product Specification Table

System Compatibility Notes

The ATV61HD37N4 does not operate in isolation — its value is fully realized when positioned within a coordinated, multi-layer automation architecture. In a typical Schneider Electric system deployment, the drive receives speed references and run/stop commands from a Modicon M340 or Modicon M580 programmable logic controller via Modbus TCP or CANopen fieldbus. The PLC’s CPU module — such as the BMX P34 2020 or BME P58 2040 — executes the motion logic and passes setpoints downstream to the ATV61HD37N4, which then modulates the output frequency to the connected motor with millisecond-level response.

On the I/O side, digital and analog signals from field sensors are collected through BMX DDI or BMX AMI I/O modules mounted on the same backplane as the CPU, feeding real-time process data back into the control loop. The ATV61HD37N4 supports analog speed reference inputs (0–10V or 4–20mA) directly from these I/O modules, enabling smooth closed-loop speed regulation without additional signal conditioning hardware.

For operator interaction, a Magelis HMIGTO or HMISCU touchscreen HMI connects to the same Ethernet network, providing operators with live drive status, fault diagnostics, and parameter adjustment capability without interrupting production. The HMI communicates with both the PLC and the drive simultaneously, giving a unified view of the control system state across the drive layer and the logic layer.

Power distribution to the ATV61HD37N4 is typically managed through an Acti9 or Compact NSX circuit breaker upstream, with an appropriate line reactor or EMC filter installed to suppress harmonic disturbances and protect the drive’s input rectifier stage. In installations with regenerative loads or frequent start-stop cycles, a braking resistor module is connected to the drive’s DC bus terminals to dissipate excess energy safely.

For multi-drive installations — common in pump stations, conveyor systems, and HVAC plants — multiple ATV61HD37N4 units can be networked together on a shared CANopen or PROFIBUS DP segment, with the Modicon PLC acting as the network master. This topology allows coordinated speed profiling across several motors, enabling synchronized production line operation and load-sharing strategies that reduce mechanical stress and energy consumption simultaneously.

Communication gateway modules such as the VW3A3310 (Ethernet/IP) or VW3A3307 (PROFIBUS DP) can be inserted into the ATV61HD37N4’s option slot, extending the drive’s connectivity to enterprise-level SCADA systems or third-party DCS platforms without replacing the drive hardware. This modular communication architecture is a key reason why the ATV61 series remains a preferred platform for long-lifecycle industrial installations.

Industrial Application Notes

The ATV61HD37N4 is deployed across a wide range of process and discrete manufacturing environments where variable-speed motor control is central to operational efficiency and system reliability.

In water and wastewater treatment facilities, the drive controls centrifugal pump motors in constant-pressure supply systems. By modulating pump speed in response to pressure transmitter feedback routed through the Modicon PLC, the ATV61HD37N4 eliminates the unplanned downtime of throttle-valve control and reduces mechanical wear on pump seals and impellers — directly extending maintenance intervals and lowering lifecycle costs.

In mining and mineral processing applications, the drive manages conveyor belt motors and crusher feed systems where load torque varies significantly with material density. The ATV61HD37N4’s built-in torque control mode and motor thermal protection functions allow the drive to adapt to these variable load conditions without nuisance tripping, maintaining production throughput even under demanding conditions.

In petrochemical and oil & gas installations, the drive is integrated into compressor and blower control loops where precise speed regulation is critical for process stability. The drive’s compatibility with ATEX-rated motor configurations and its support for safe-torque-off (STO) safety functions make it suitable for hazardous area applications when paired with appropriate safety relay modules.

In packaging and material handling lines, the ATV61HD37N4 drives conveyor, indexing, and sorting motors that must synchronize with upstream and downstream equipment. The drive’s fast current loop response and smooth acceleration ramp profiles ensure that product handling is gentle and consistent, reducing reject rates and improving overall equipment effectiveness (OEE).

Across all these applications, the ATV61HD37N4’s long-term availability through ZYPLC’s verified inventory ensures that maintenance teams can source replacement units quickly, minimizing unplanned downtime and protecting the continuity of production operations.

Product Compatibility FAQ

Q1: Is the ATV61HD37N4 compatible with existing ATV61 system configurations and communication option cards?
Yes. The ATV61HD37N4 is fully compatible with the Altivar 61 series option card ecosystem, including communication cards for Modbus TCP, CANopen, PROFIBUS DP, DeviceNet, and Ethernet/IP. Existing parameter configurations stored in the keypad or transferred via SoMove software can be loaded directly into the replacement unit, significantly reducing commissioning time during a drive swap.

Q2: What installation and commissioning steps are required when integrating the ATV61HD37N4 into a layered control architecture?
Standard commissioning involves setting the motor nameplate parameters (rated voltage, current, frequency, speed), configuring the control source (terminal block, Modbus, or keypad), and adjusting acceleration/deceleration ramps to match the mechanical load profile. For networked installations, the drive’s communication address and baud rate must be configured to match the PLC’s fieldbus settings. ZYPLC recommends verifying all parameter settings against the system’s functional design specification before energizing the motor.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance sourcing?
ZYPLC’s 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. In addition to warranty coverage, ZYPLC maintains verified inventory of ATV61 series drives and associated components, enabling rapid fulfillment for both planned maintenance replacements and emergency breakdown situations. Our technical team can assist with cross-referencing obsolete part numbers and identifying compatible alternatives within the Altivar drive family.
