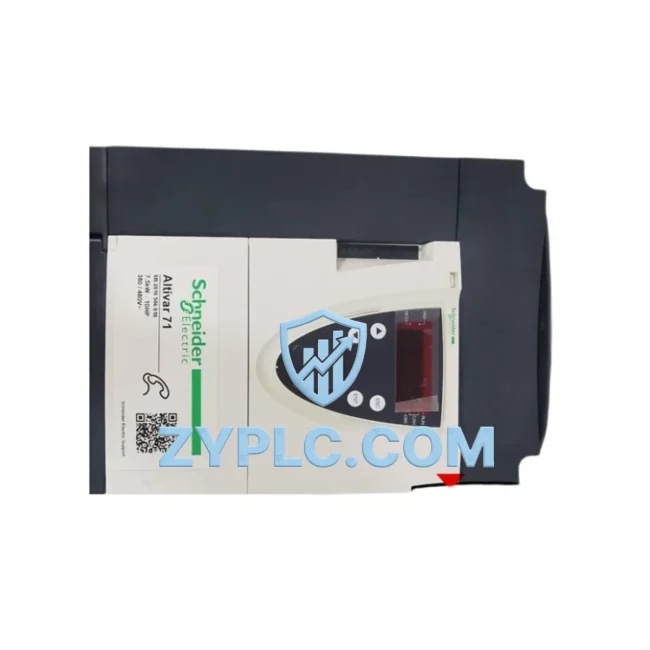

Schneider ATV71HU75N4Z VFD Altivar 71

Schneider ATV71HU75N4Z VFD for Altivar 71 Automation

The Schneider Electric ATV71HU75N4Z is a 7.5 kW (10 HP) three-phase variable frequency drive from the renowned Altivar 71 series, engineered specifically for demanding industrial environments where energy efficiency, motor control precision, and production line reliability are non-negotiable. Rated for 380–480 V AC input and delivering a nominal output current of 17 A, this drive is purpose-built to reduce unplanned downtime across continuous-duty motor applications including pumps, fans, compressors, conveyors, and multi-axis machine tools.

In modern manufacturing, uncontrolled motor starts and fixed-speed operation account for a disproportionate share of facility operating load. The ATV71HU75N4Z addresses this directly through its advanced flux vector control algorithm, which continuously adjusts output frequency and voltage to match actual load demand. Rather than running a motor at full speed regardless of process requirements, the drive modulates torque delivery in real time — reducing reactive power draw, minimizing heat generation in motor windings, and extending the operational lifespan of connected equipment. Facilities that have integrated the Altivar 71 platform into their motor control architecture consistently report measurable reductions in kWh consumption per production cycle.

Product Specification Table

System Compatibility and Application

The ATV71HU75N4Z does not operate in isolation — its full operational-efficiency potential is realized when integrated into a coordinated automation architecture. In a typical production cell, the drive receives speed and torque references from a Schneider Electric Modicon M340 PLC via Modbus RTU, enabling closed-loop process control without the latency of manual operator intervention. The M340’s discrete I/O modules — such as the BMX DDI 1602 digital input module — capture feedback signals from proximity sensors and encoder outputs, feeding real-time position and speed data back into the control loop.

For facilities running multi-drive systems, the Altivar 71 communicates seamlessly with the ATV71 Ethernet card (VW3A3310), enabling integration into EtherNet/IP or Modbus TCP networks. This allows the Magelis HMIGTO5310 touchscreen HMI to display live drive parameters — output frequency, motor current, DC bus voltage, and fault history — giving operators immediate visibility into operating load at the drive level without requiring a separate power analyzer.

On the power monitoring side, the Schneider PowerLogic PM5350 power meter installed upstream of the drive panel captures true RMS current, power factor, and harmonic distortion data. When combined with the ATV71HU75N4Z’s internal energy counter (accessible via the drive’s parameter menu or communication bus), maintenance teams can calculate precise kWh consumption per production batch — a critical input for ISO 50001 maintenance planning reporting and continuous improvement initiatives.

For servo-driven axes operating in parallel with the VFD-controlled motor, the Lexium 32A servo drive paired with a BSH0703P servo motor handles high-dynamic positioning tasks, while the ATV71HU75N4Z manages the bulk energy load on the main drive shaft. This division of labor — precision servo for indexing, VFD for sustained torque — is a proven architecture for reducing total drive system operating load while maintaining production throughput.

In distributed I/O configurations, the Advantys STB NIP 2212 Ethernet network interface module extends the control network to remote I/O islands on the production floor, reducing wiring complexity and enabling faster fault isolation. The ATV71HU75N4Z’s built-in PTC thermistor input further supports motor thermal protection without requiring an external relay module, simplifying panel design and reducing component count.

Maintenance and Replacement Notes

Consider a bottling line running three conveyor zones, each driven by a 7.5 kW motor. Without variable speed control, each motor starts across-the-line at full voltage, drawing 6–8× rated current during acceleration — stressing the supply transformer, tripping upstream breakers, and generating significant heat in motor windings. With the ATV71HU75N4Z installed on each drive point, acceleration ramps are controlled precisely: current is limited to 150% of rated during start-up, mechanical shock to couplings and gearboxes is eliminated, and the supply-side power factor improves from a typical 0.65 (DOL) to above 0.95 under the drive’s internal power factor correction.

During low-demand periods — shift changes, product changeovers, or scheduled micro-stops — the drive’s sleep/wake function automatically reduces motor speed to a minimum threshold, cutting operating load by 40–60% compared to continuous full-speed operation. This feature alone, when applied across a facility with 20+ VFD-controlled motors, can reduce annual electricity costs by tens of thousands of dollars without any change to production scheduling.

Predictive maintenance is another area where the ATV71HU75N4Z delivers measurable ROI. The drive logs motor run hours, number of starts, thermal state, and fault history in non-volatile memory. Maintenance teams can retrieve this data via the SoMove PC configuration software over USB or Modbus, identifying motors approaching thermal limits or bearings showing increased load signatures — enabling planned maintenance interventions before unplanned downtime occurs. Combined with vibration data from external sensors fed through the drive’s analog input (AI1/AI2), a complete predictive maintenance picture emerges without requiring a dedicated condition monitoring system.

Every ATV71HU75N4Z unit supplied by ZYPLC undergoes a full functional test prior to shipment: input voltage application, output frequency sweep across 0–50 Hz, current measurement at 25% and 100% load, fault relay verification, and communication port handshake confirmation. Test records are retained and available upon request. All units are covered by a 12-month warranty from the date of shipment, with in-stock inventory available for same-week dispatch to minimize production downtime for urgent replacement requirements.

Product Sourcing FAQ

Q1: How much energy can the ATV71HU75N4Z save compared to direct-on-line motor starting?
In fan and pump applications following the affinity laws, reducing motor speed by 20% reduces power consumption by approximately 49%. In conveyor and compressor applications with more linear load curves, savings of 20–35% are typical. Actual savings depend on load profile, duty cycle, and baseline operating conditions.

Q2: Is the ATV71HU75N4Z compatible with my existing PLC and communication network?
The drive natively supports Modbus RTU via its RJ45 port. Optional communication cards (sold separately) add Profibus DP, DeviceNet, CANopen, EtherNet/IP, and Modbus TCP support. It is compatible with Schneider Modicon PLCs, Siemens S7 series, Allen-Bradley ControlLogix, and any controller with a standard serial or fieldbus interface.

Q3: Can this drive replace an existing ATV71 unit of the same rating without rewiring?
Yes. The ATV71HU75N4Z is a direct form-fit-function replacement for any ATV71 7.5 kW / 400 V variant. Terminal assignments, mounting dimensions, and parameter structure are identical across the ATV71 range. Configuration can be cloned from the original drive using the Multiloader tool or SoMove software, reducing commissioning time to under 30 minutes.

Q4: What does the 12-month warranty cover, and what is the replacement process?
The warranty covers all manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions. It does not cover damage from incorrect installation, overvoltage events beyond rated input tolerance, or physical damage in transit. To initiate a warranty claim, contact ZYPLC with the unit serial number and fault description. Replacement units are dispatched from stock within 3 business days of claim approval.
